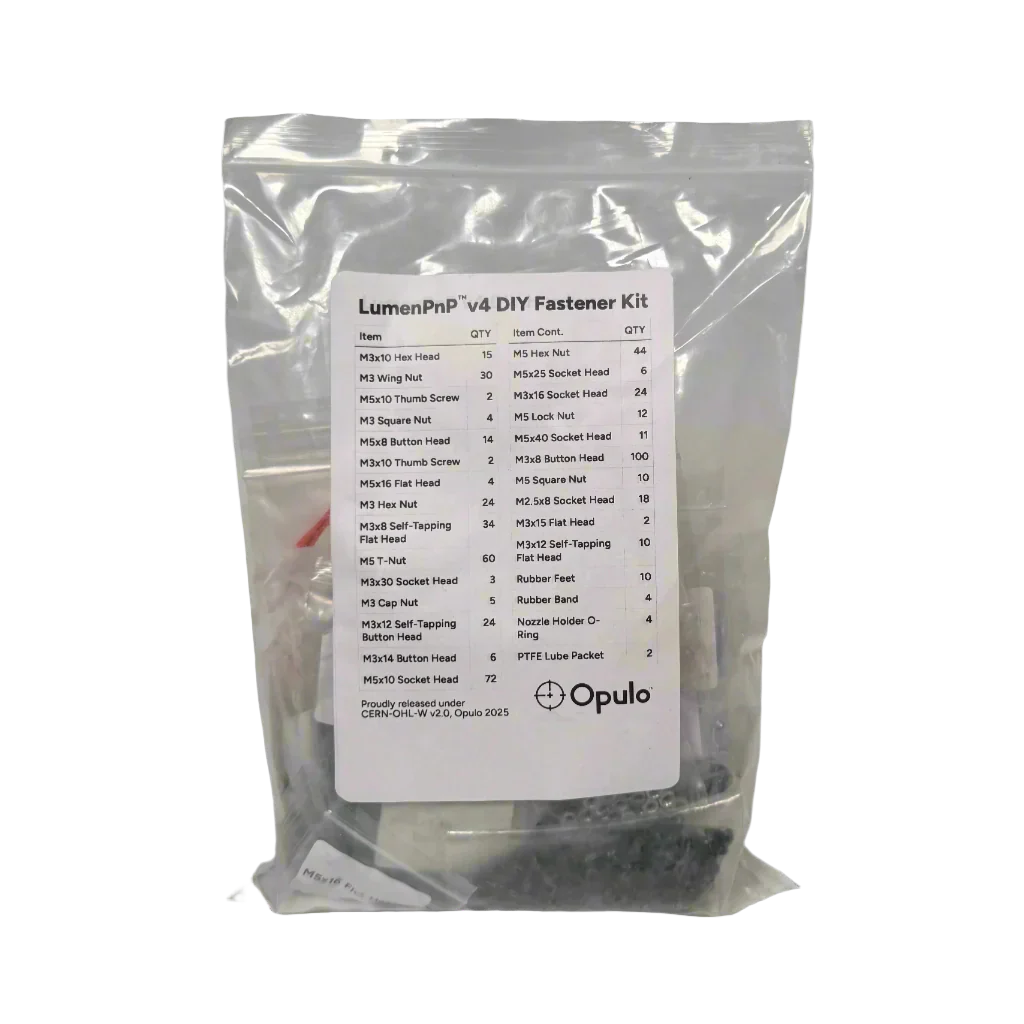

This work instruction is for preparing the Fastener Kit - a bag full of all the hardware needed to assemble a v4 from scratch.

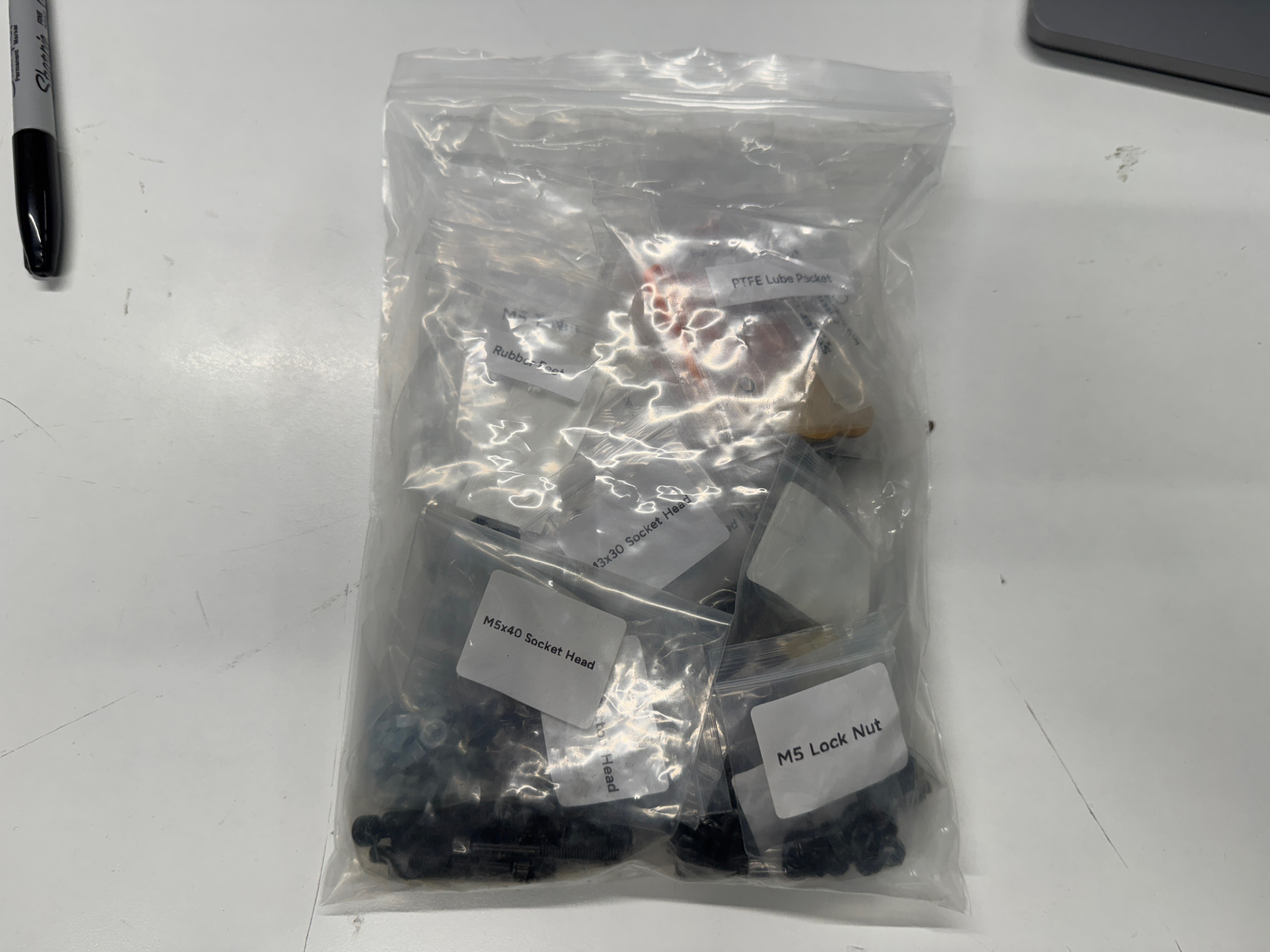

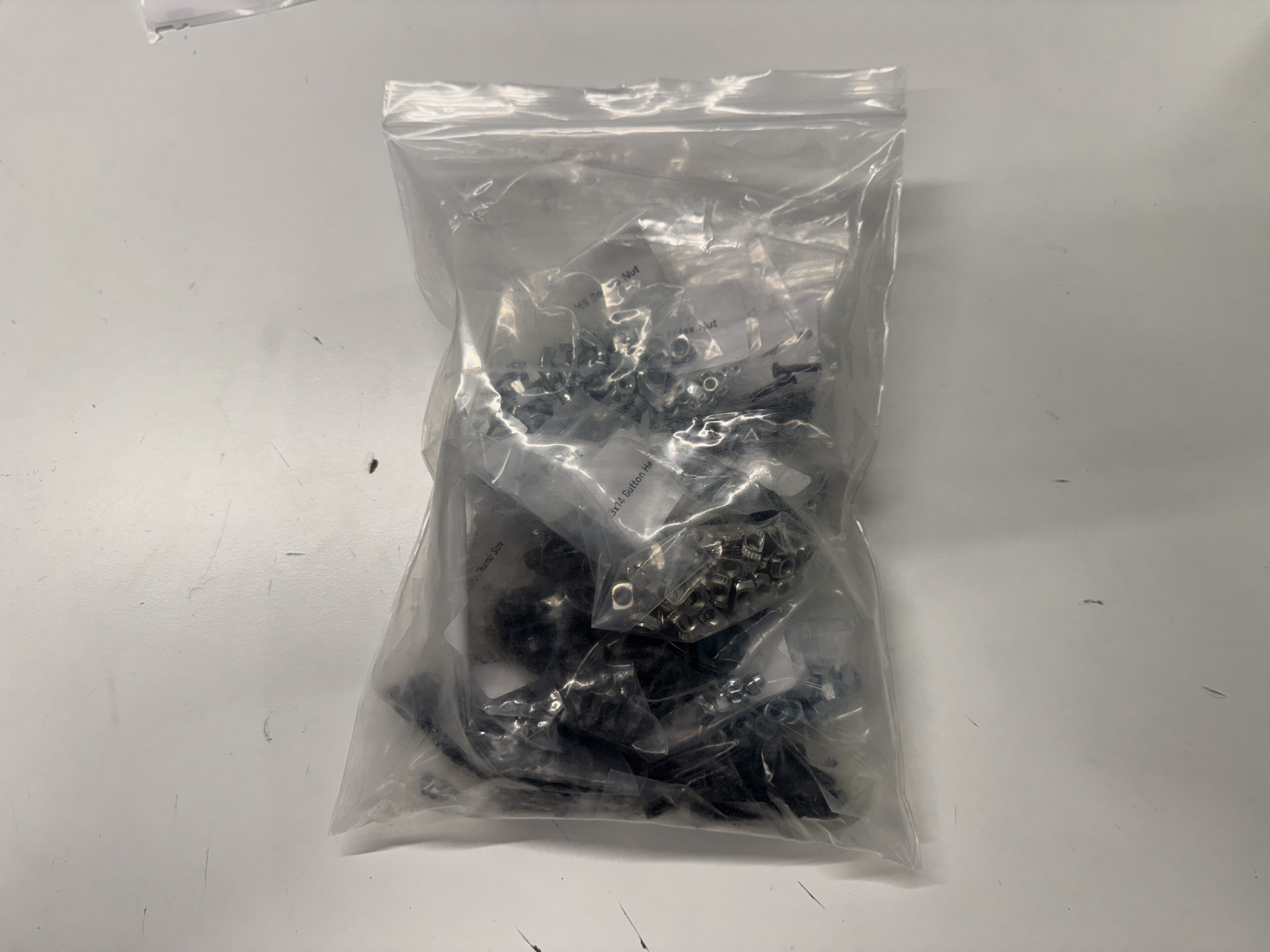

We get a pre-made bag of most of the hardware pre-made.

It needs six things added, and one thing changed.

Swap

Hunt down the bag of 4x M3 "square nuts".

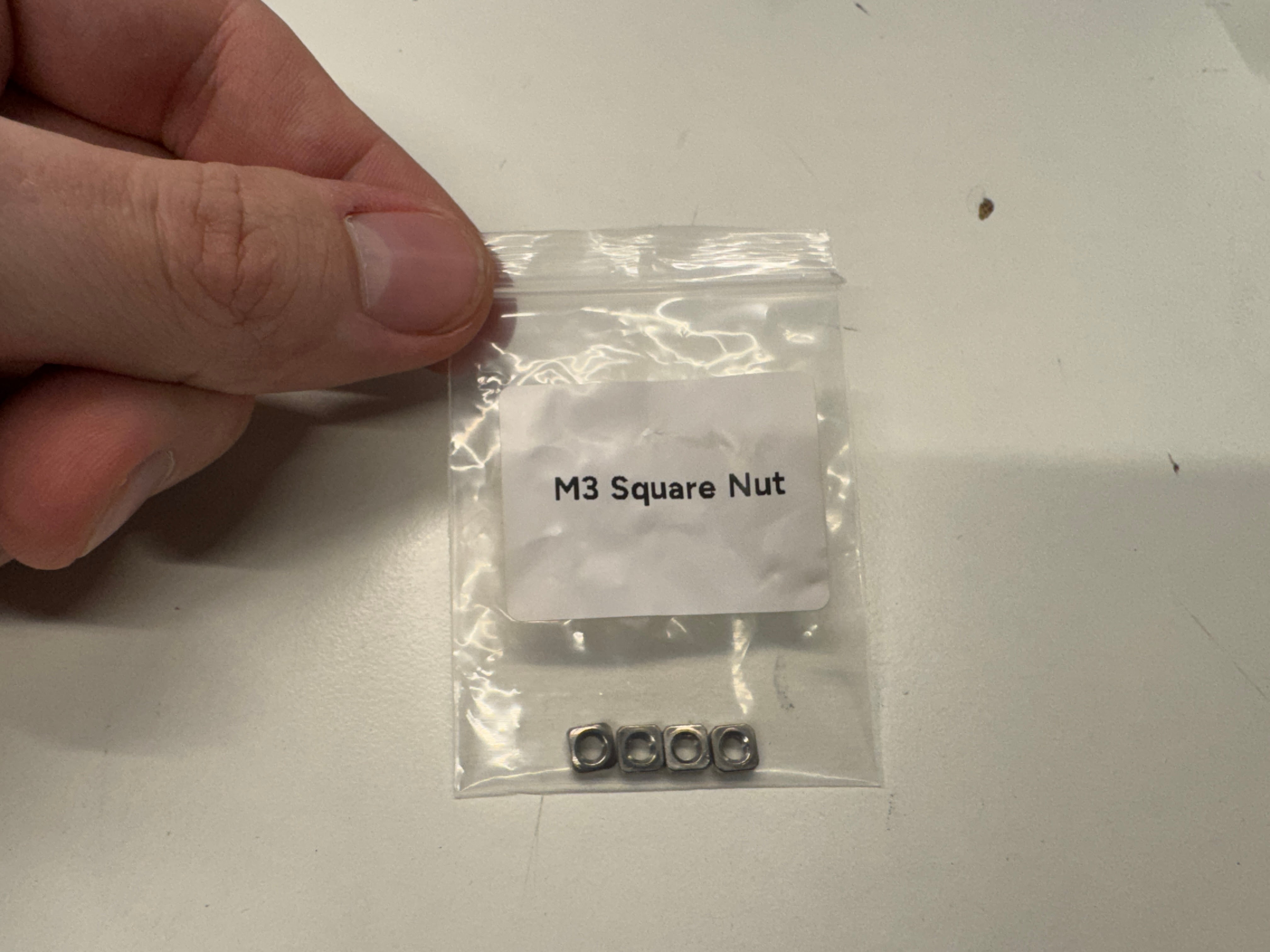

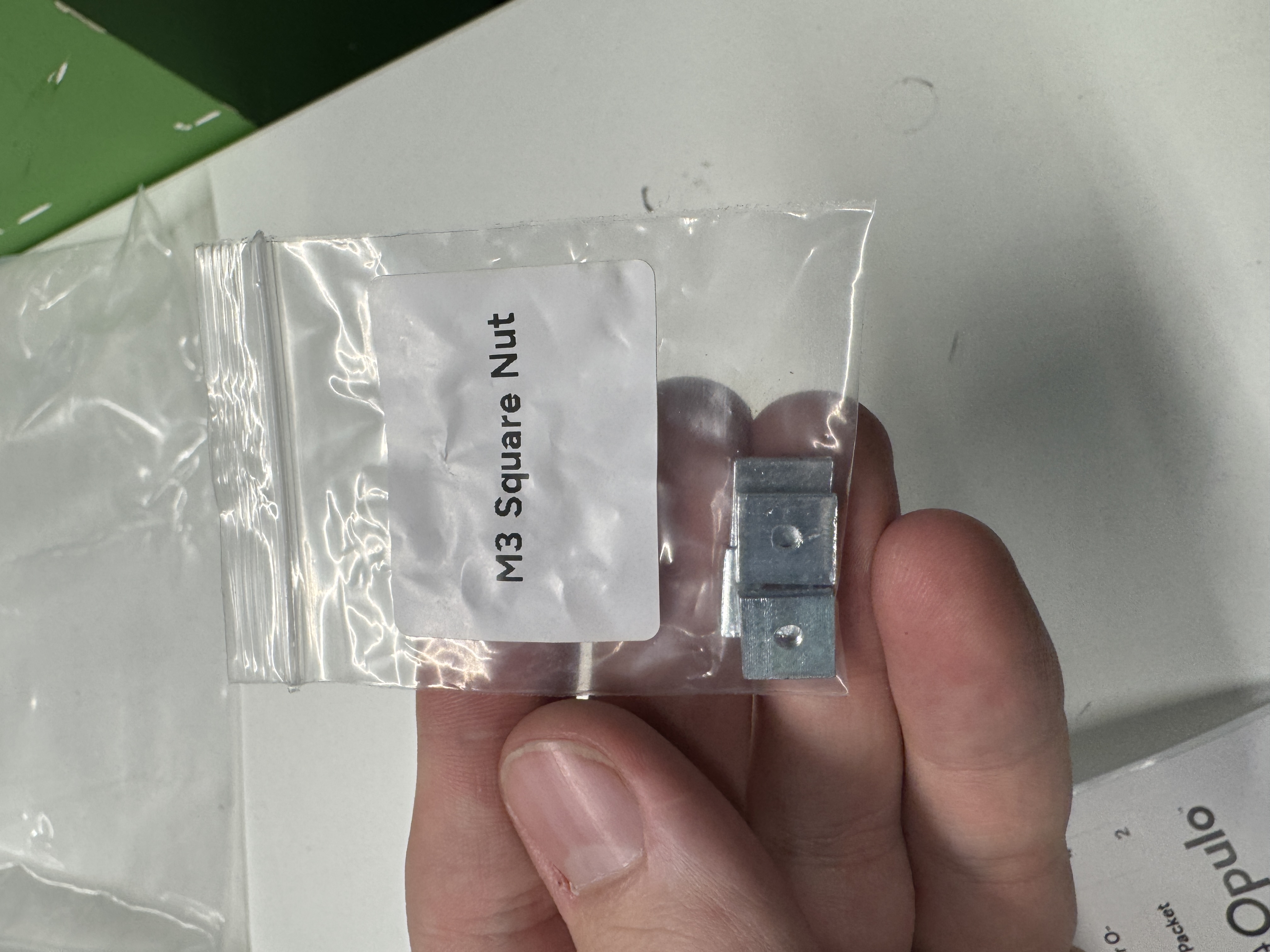

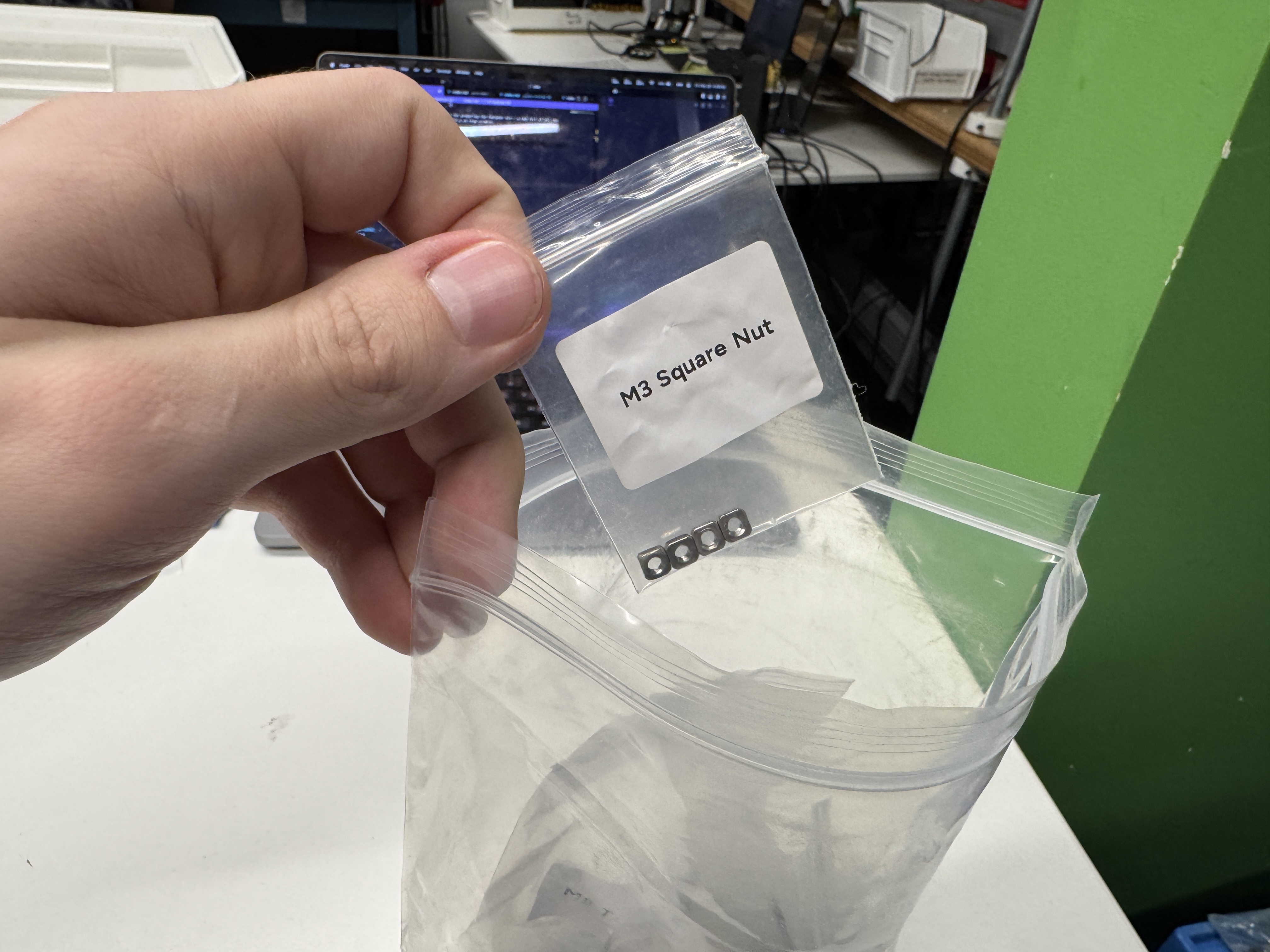

They're weird, and won't work for a LumenPnP build. Toss them, but keep the bag, and replace with 4x normal M3 square nuts. Add back to the main bag.

Add

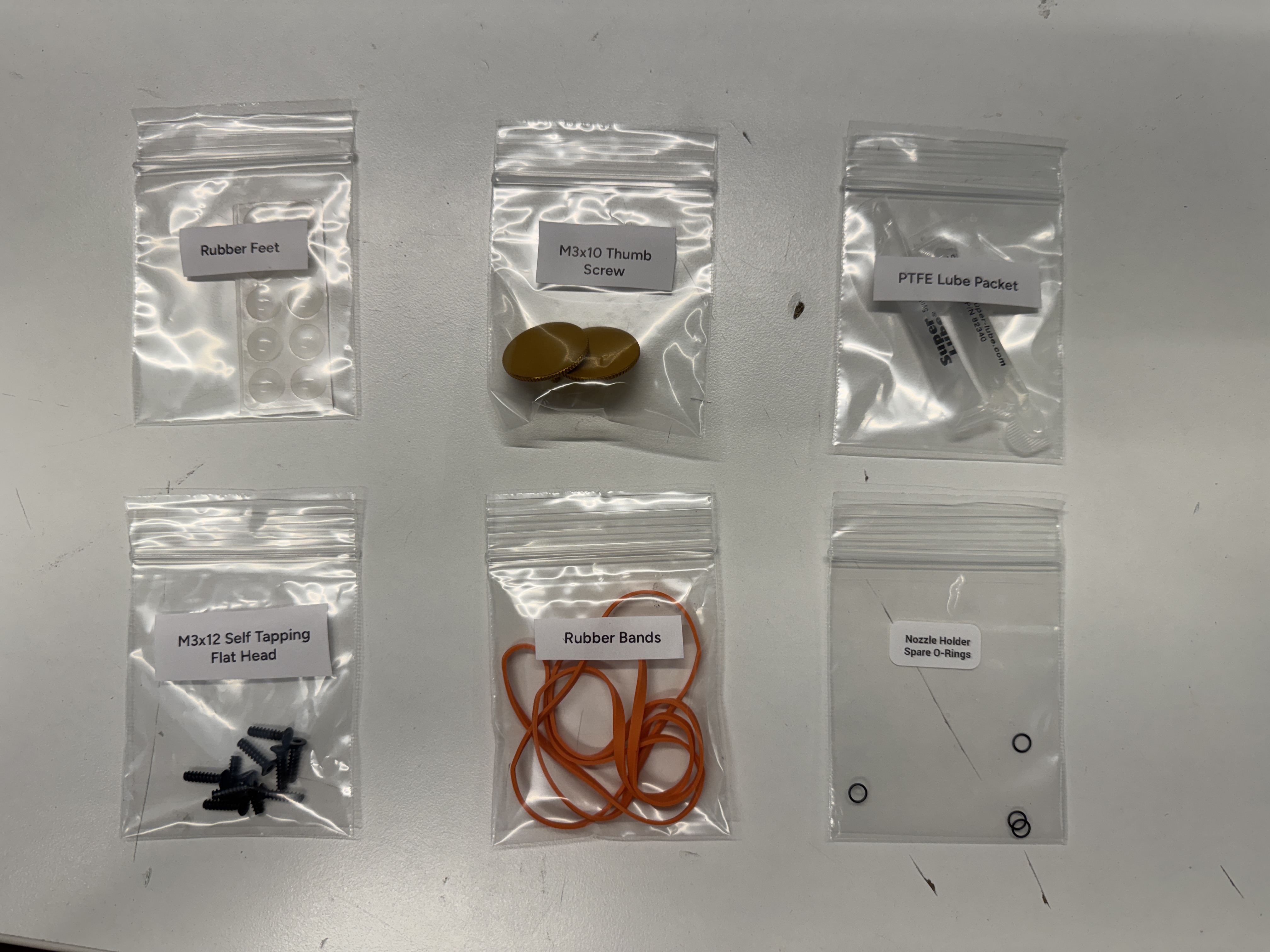

Prepare the following things, added to small bags with labels, as shown below

  • 2x M3x10 thumbscrew (for bottom cam mount)
  • 10x M3x12 self-tapping flat head
  • 10x rubber feed
  • 4x rubber bands
  • 4x nozzle holder o-rings
  • 2x PTFE lube packets

Add to the main bag.

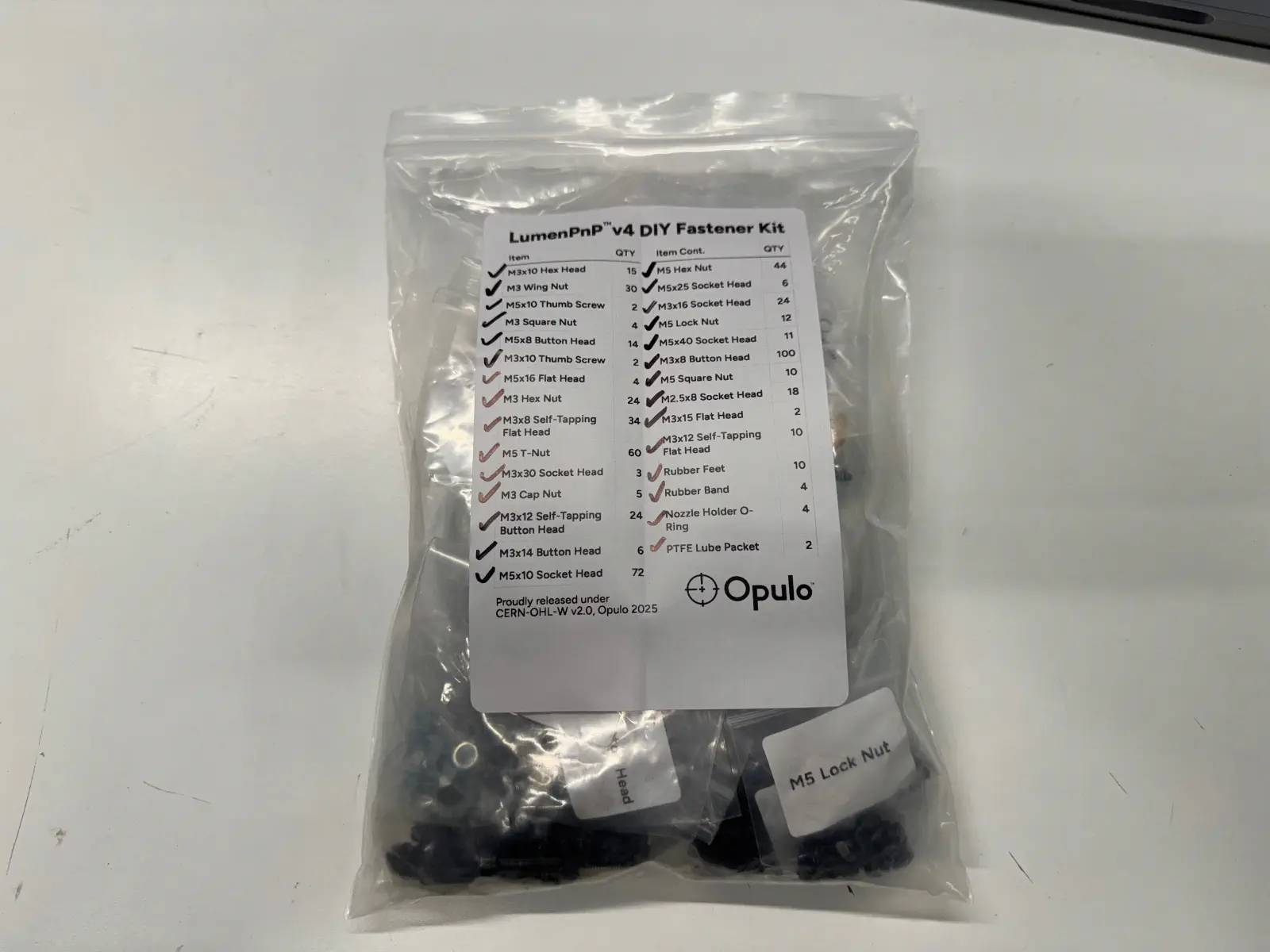

Add the label to the bag.
