LumenPnP NEMA 17 Stepper Motor 4-Pack

Purpose

The purpose of this work instructions is to document the assembly process for the LumenPnP NEMA 17 Stepper Motor 4-Pack.

Instructions

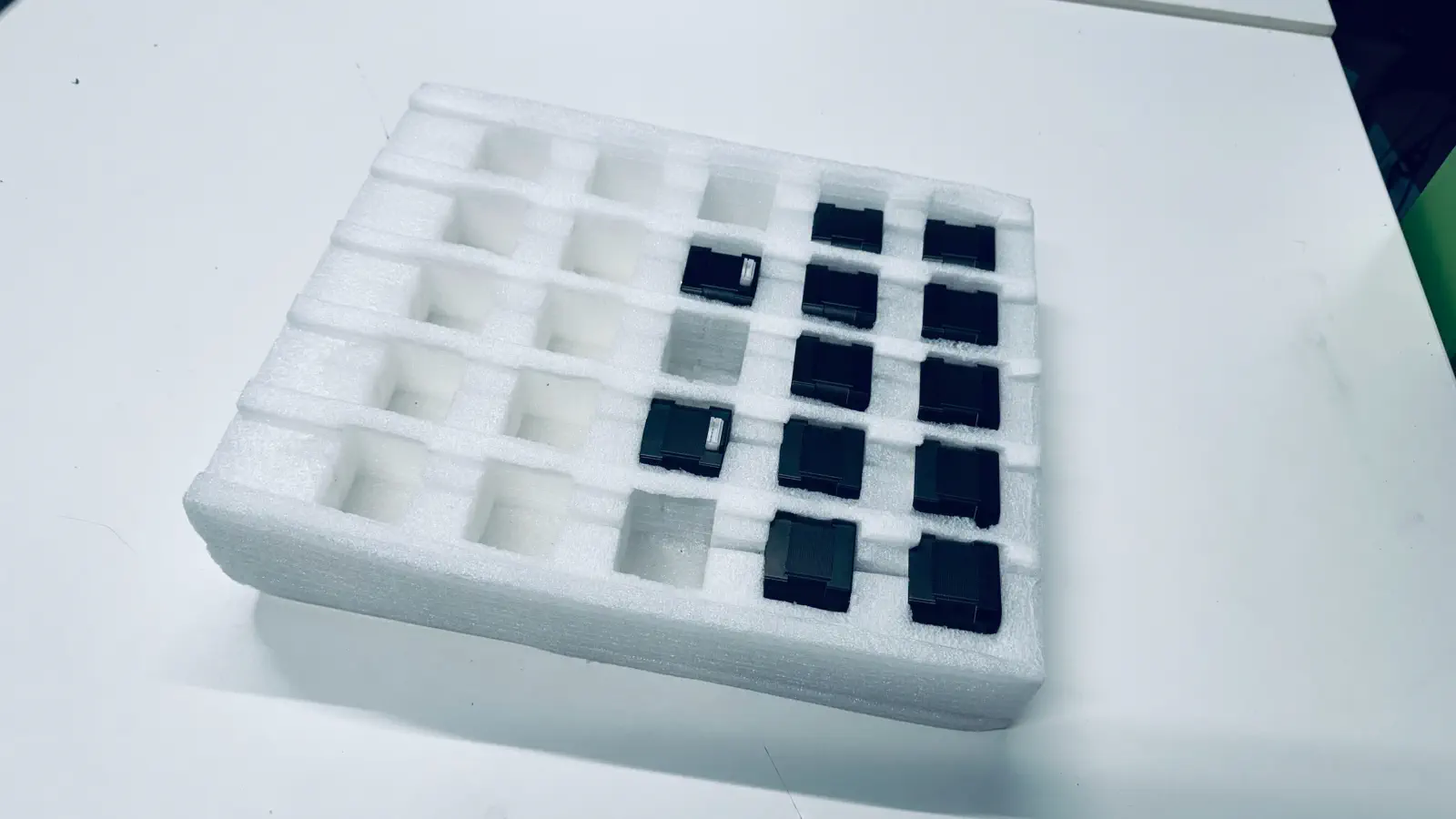

  • Collect a tray of NEMA 17 Stepper Motors from inventory

    alt text

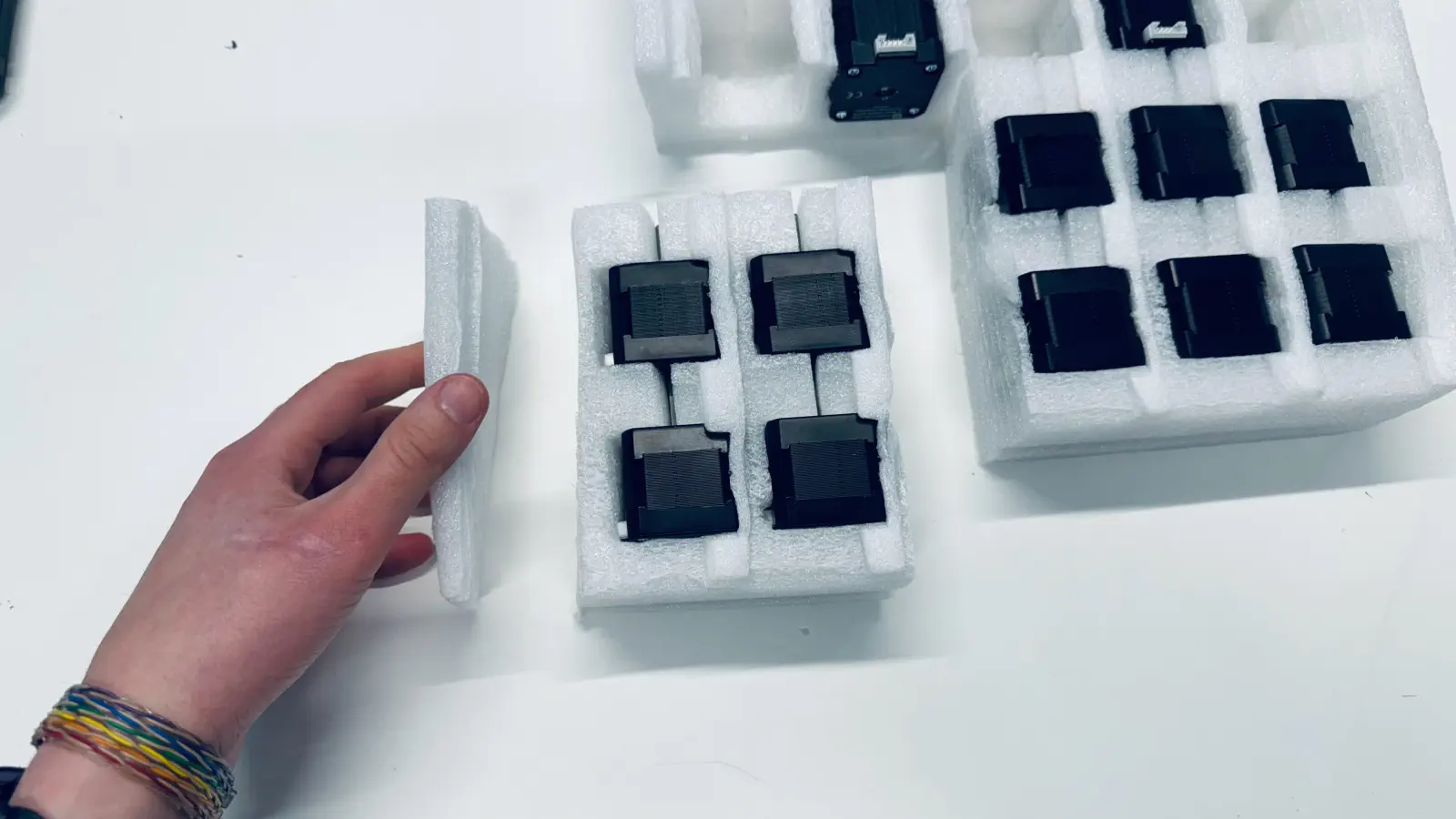

  • Use a long razor blade to seperate a 4-pack of motors from the rest of the foam tray

    alt text

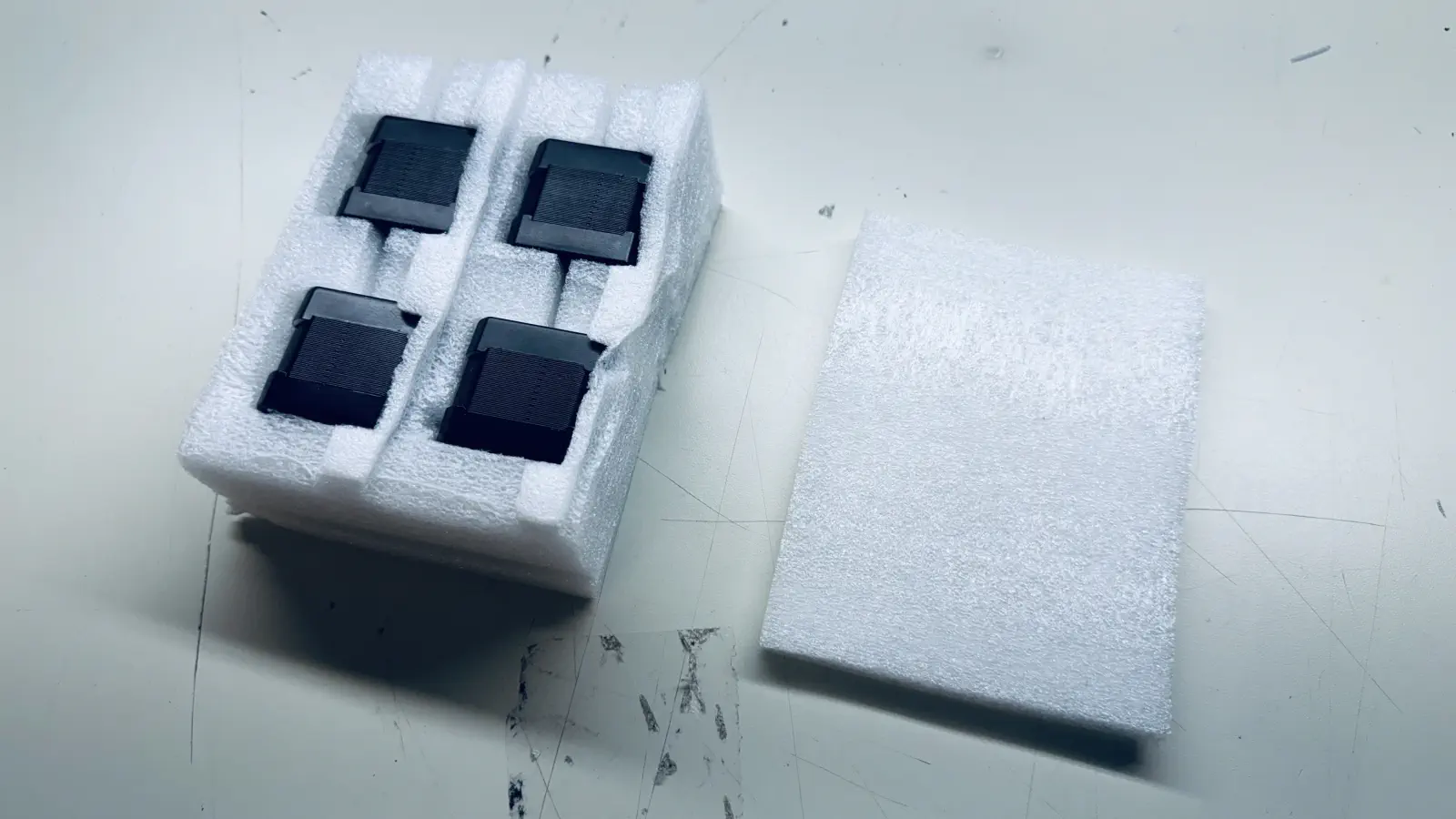

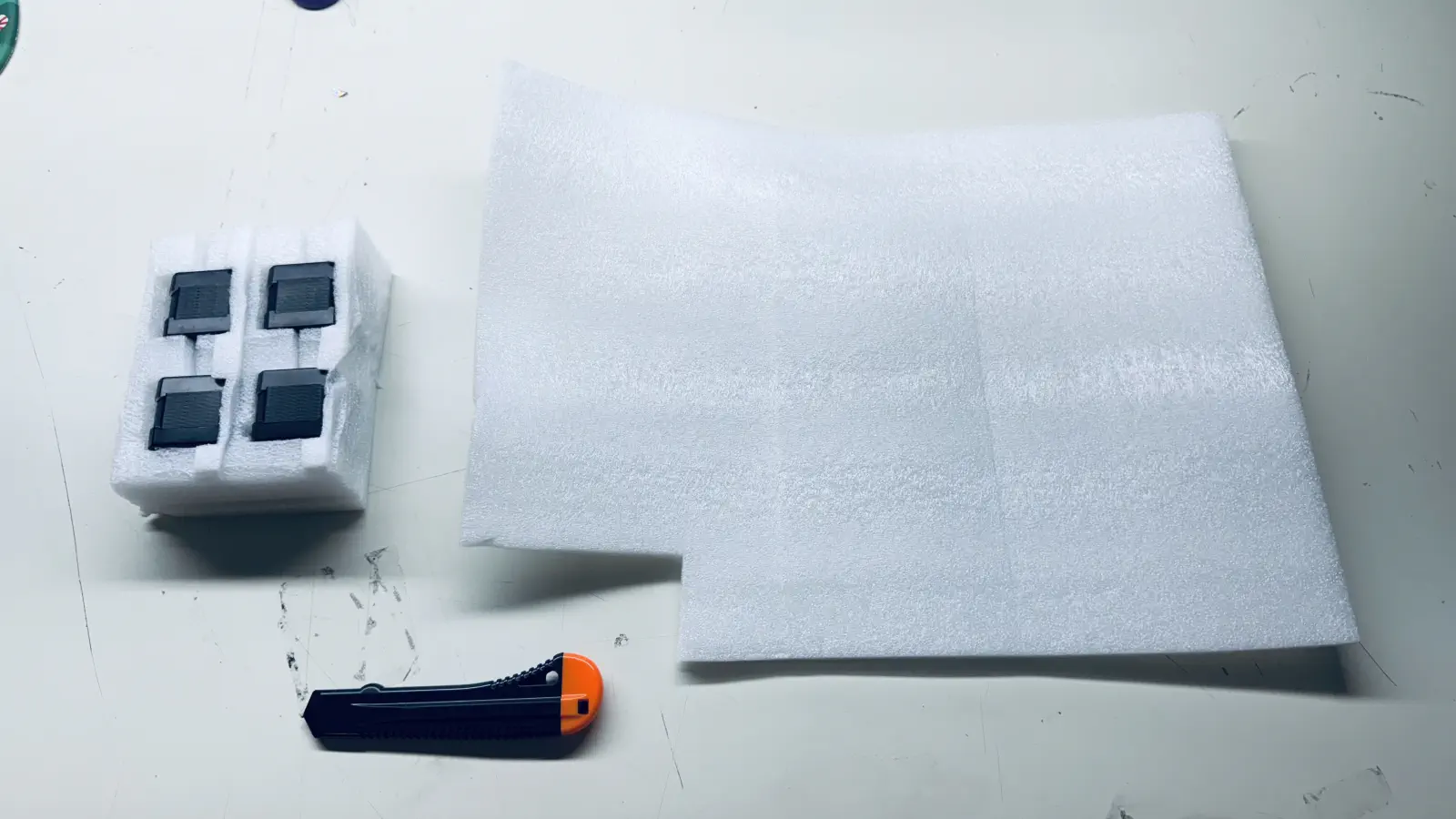

  • Collect a thin piece of foam sheeting from the reclaimed packaging materials bin and cut it to match the size of the 4-pack

    alt text alt text

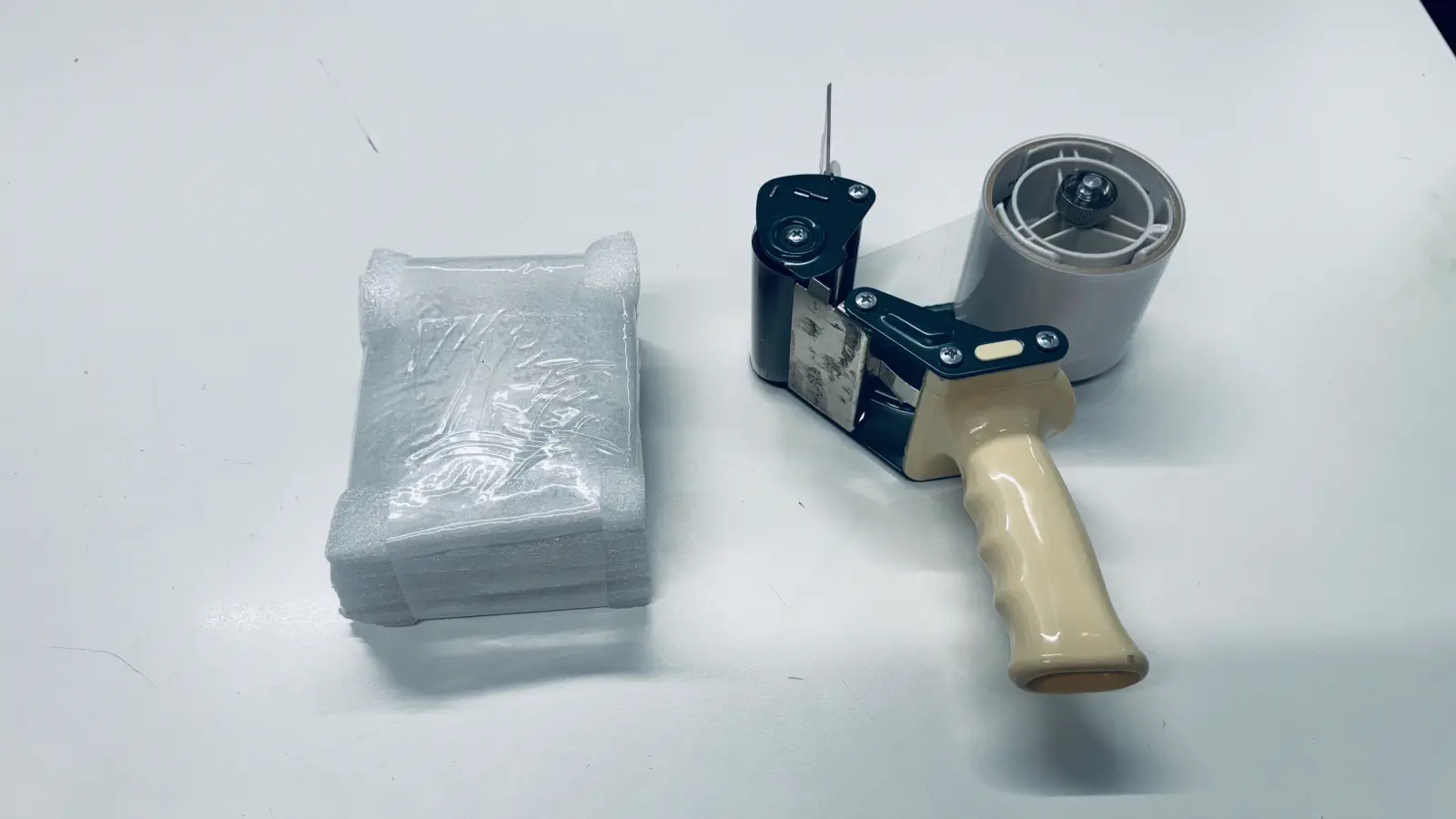

  • Tape the thin piece of foam to the top of the 4-pack of motors

    alt text

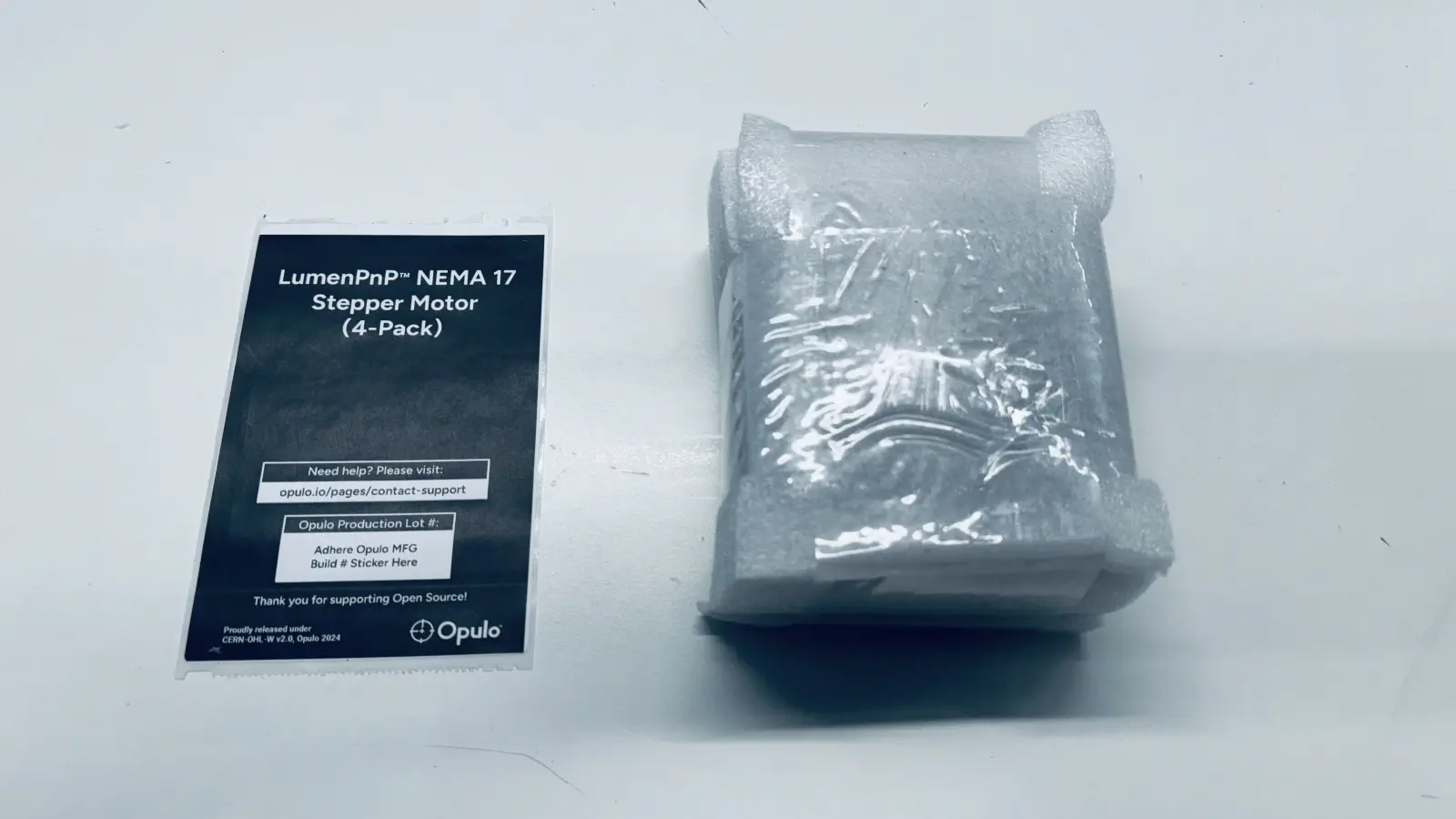

  • Adhere a product-label to the packaged motors

    alt text alt text

  • Adhere a build-number-label to the packaged motors

    alt text alt text

The completed LumenPnP NEMA 17 Stepper Motor 4-Pack is now ready for packout!
