LumenPnP MGN12H Linear Rail Kit

Purpose

The purpose of this work instructions is to document the assembly process for the LumenPnP MGN12H Linear Rail Kit.

alt text

Instructions

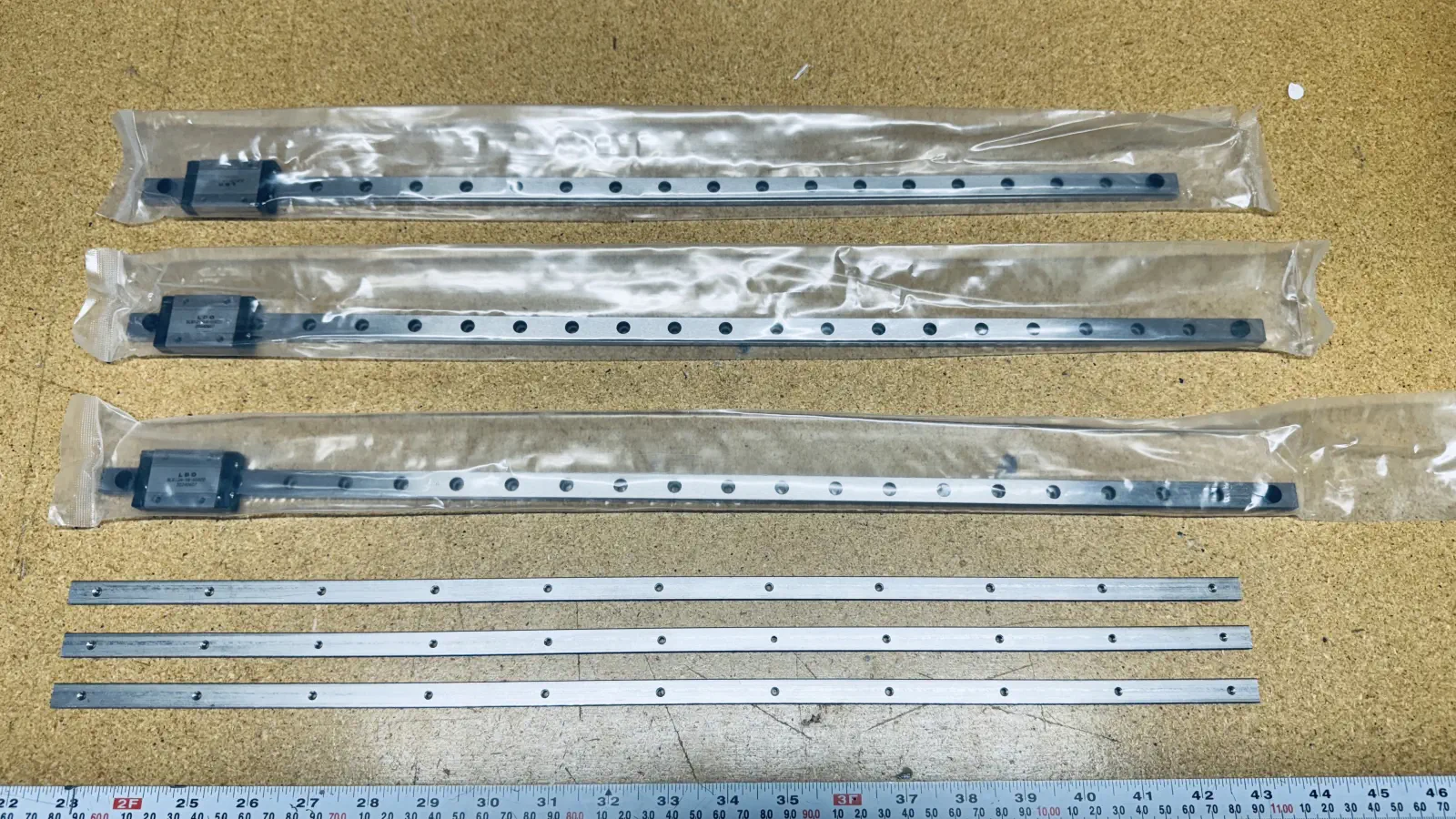

  • Collect the following items from inventory:

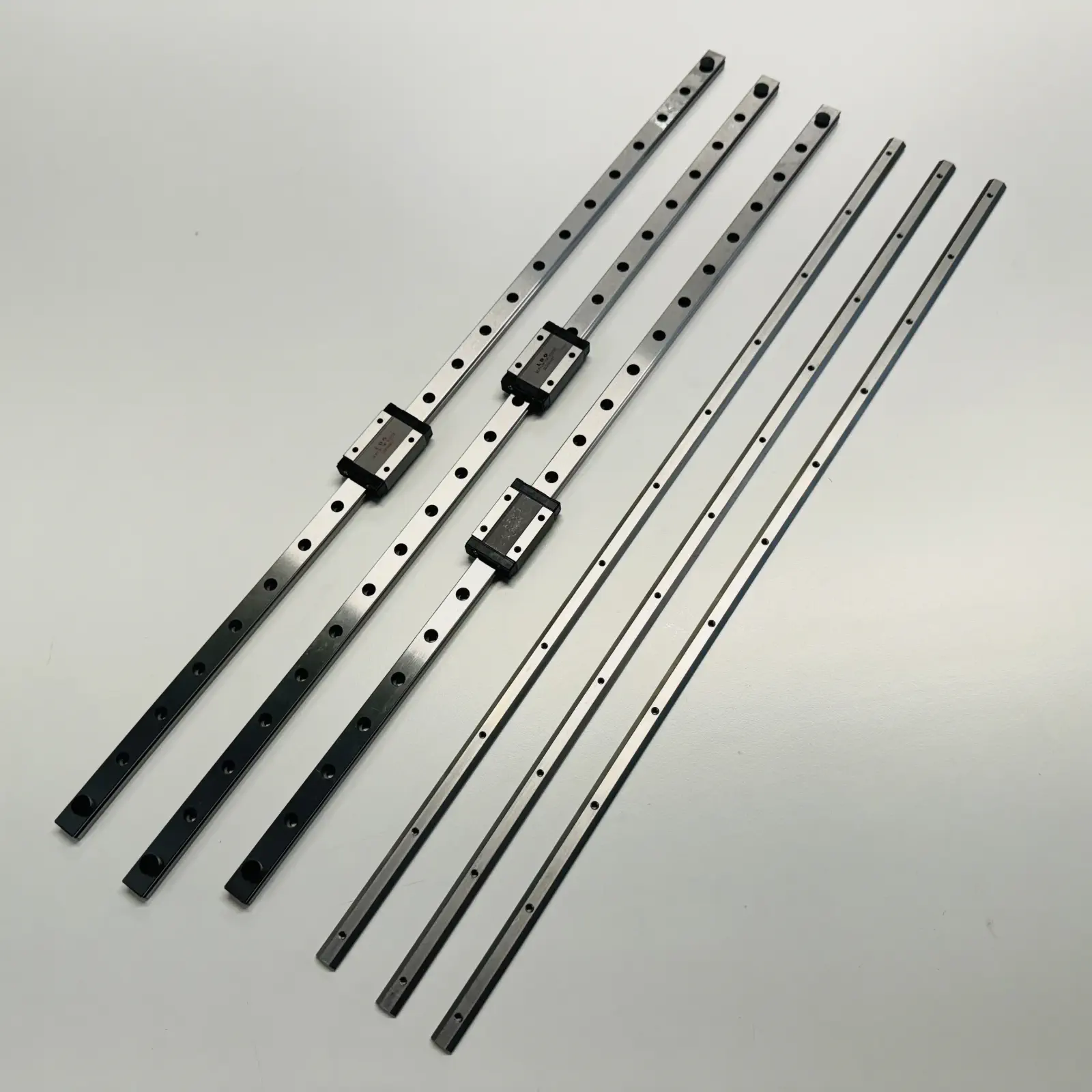

    alt text

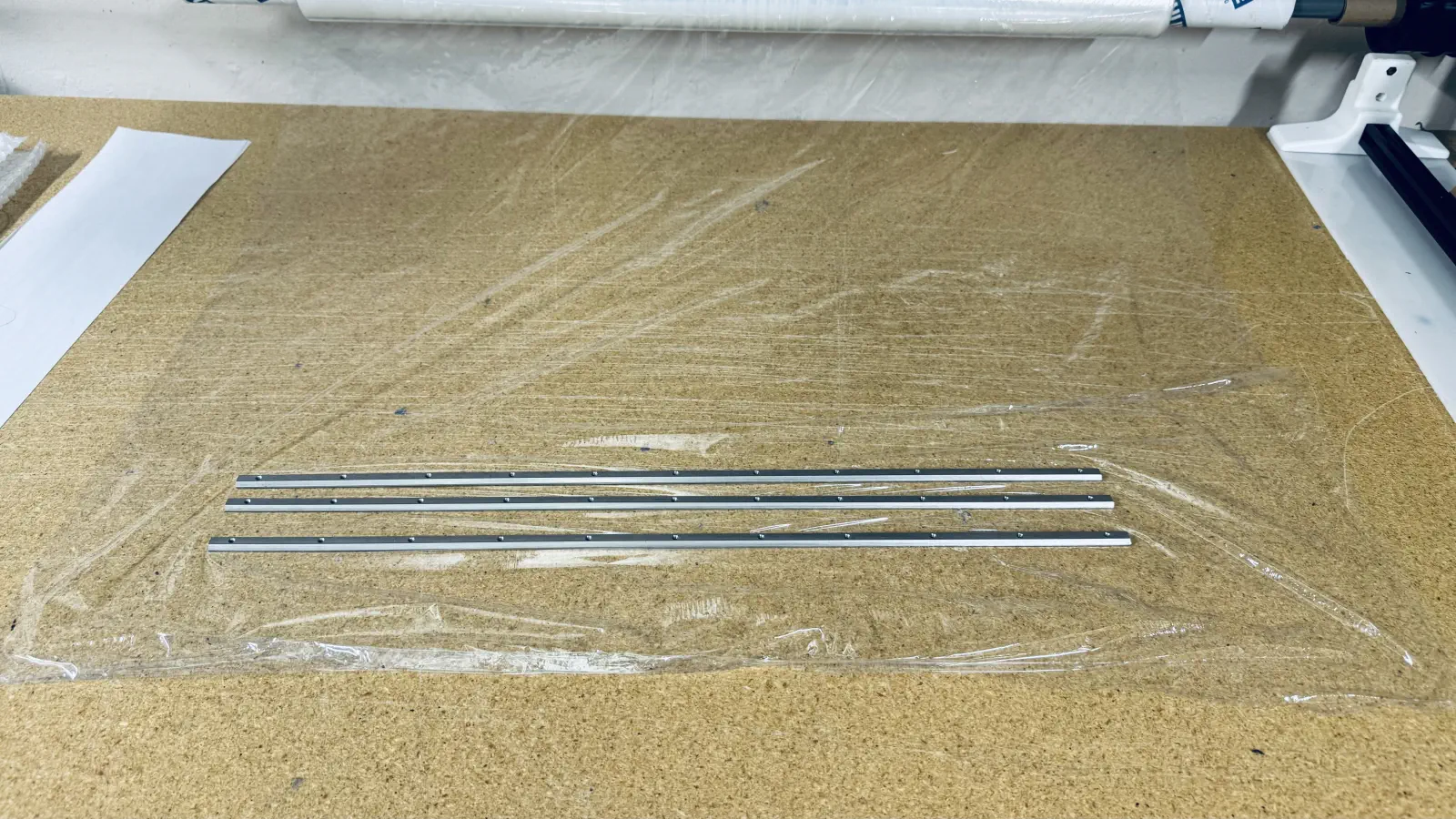

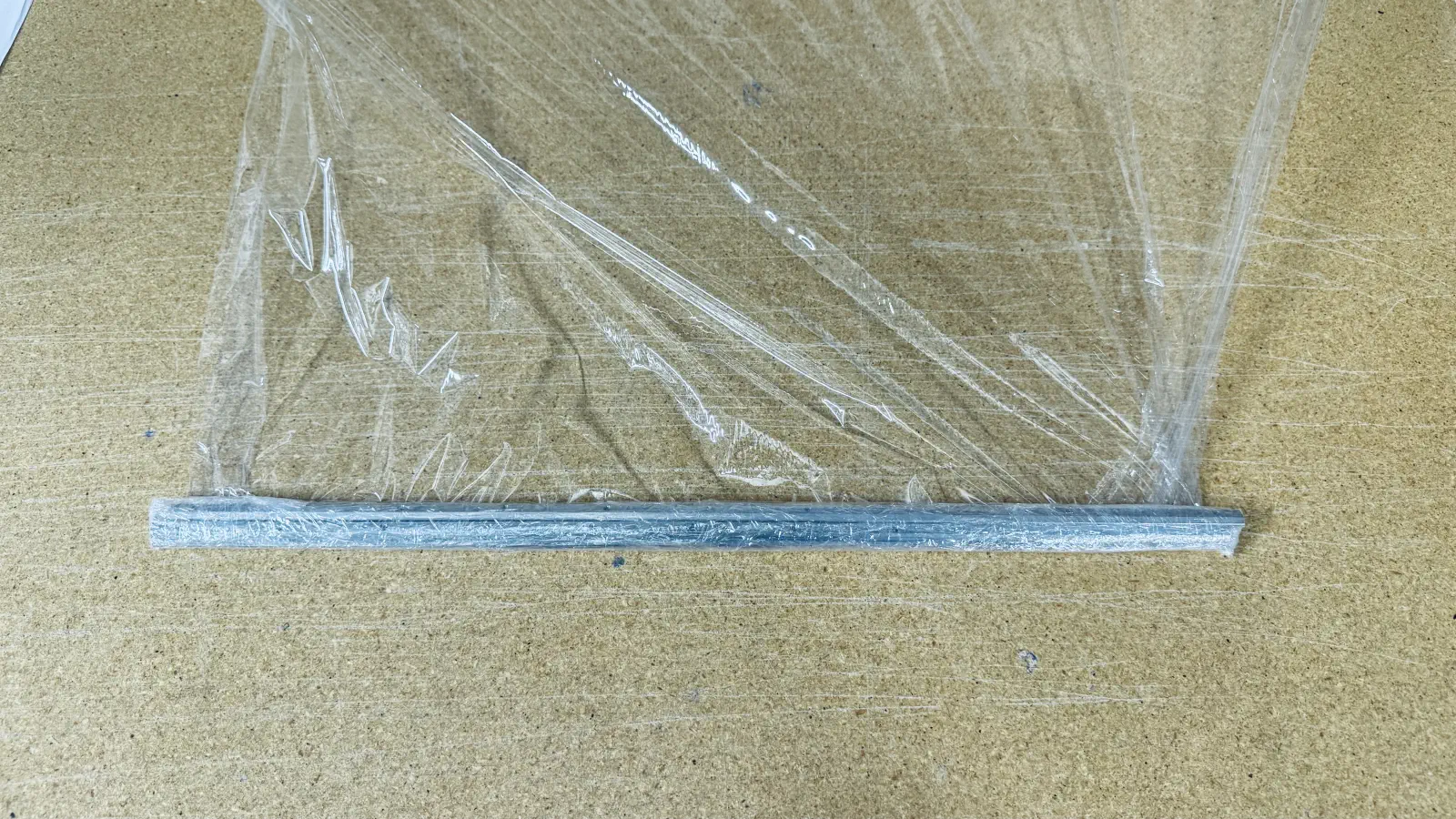

  • Plastic wrap the 3x m3-tee-nut-bar to create m3-tee-nut-bar-bundle

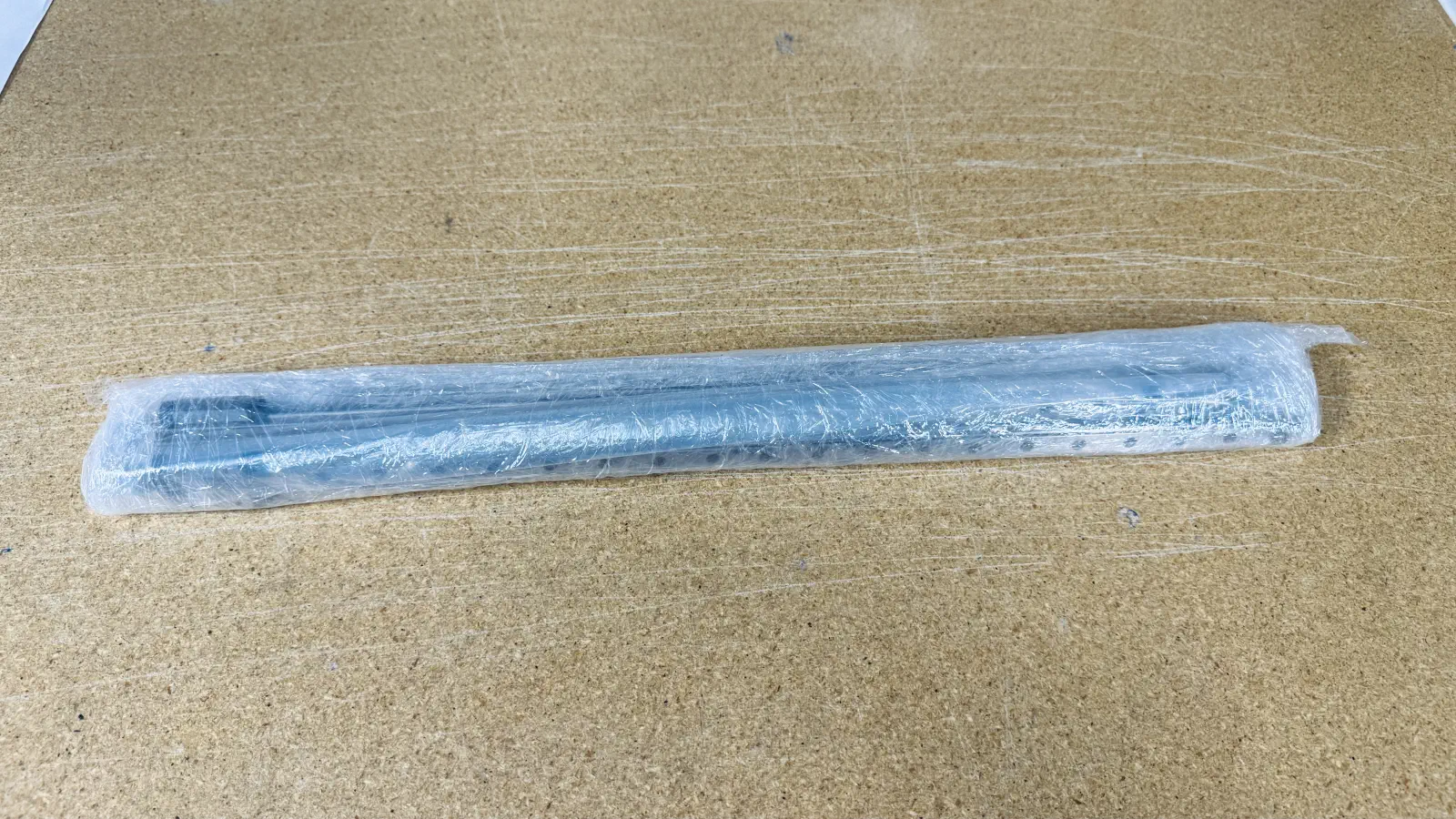

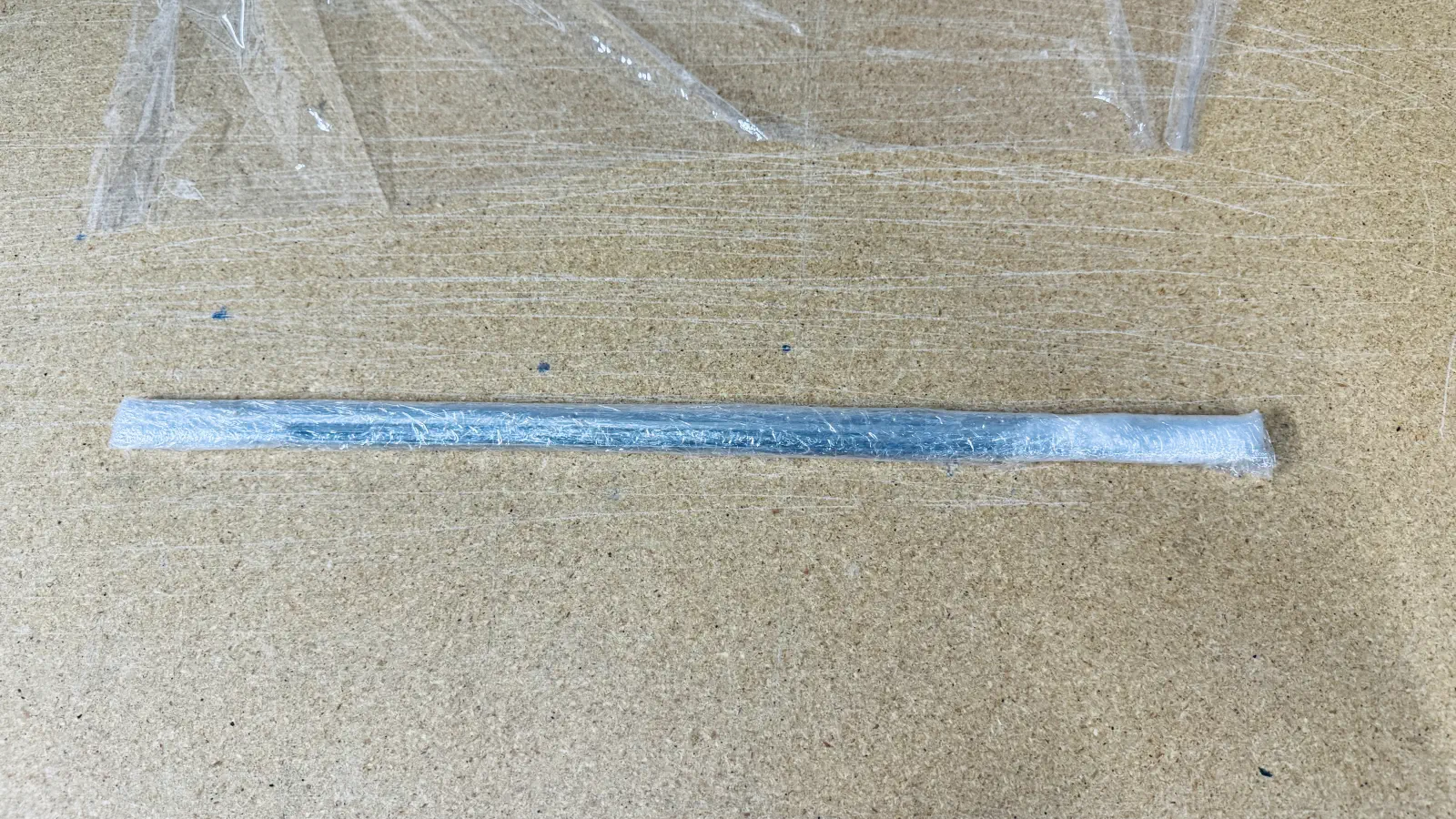

    alt text alt text alt text

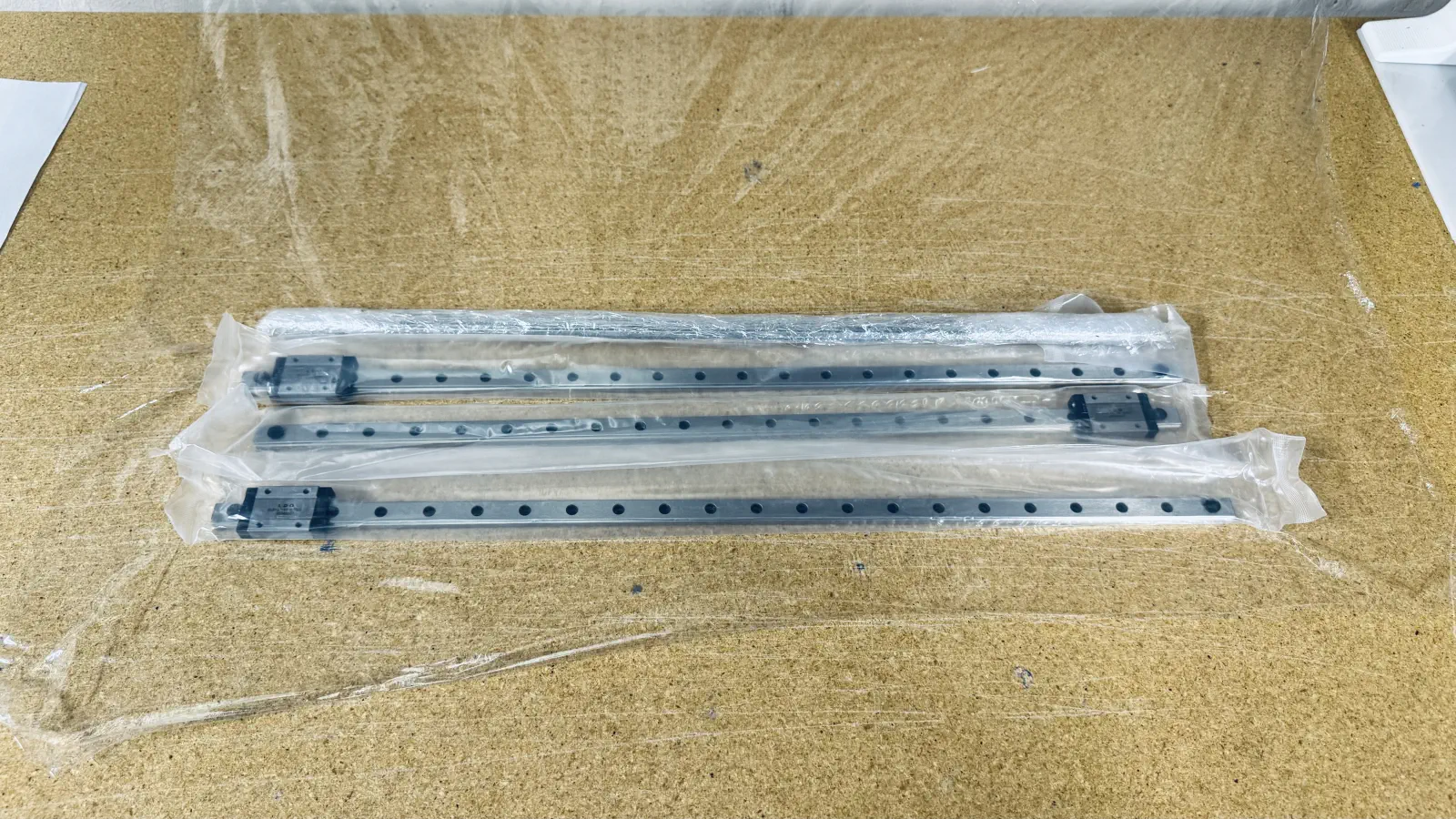

  • Plastic wrap the previously created m3-tee-nut-bar-bundle alongside 2x blah and 1x blah

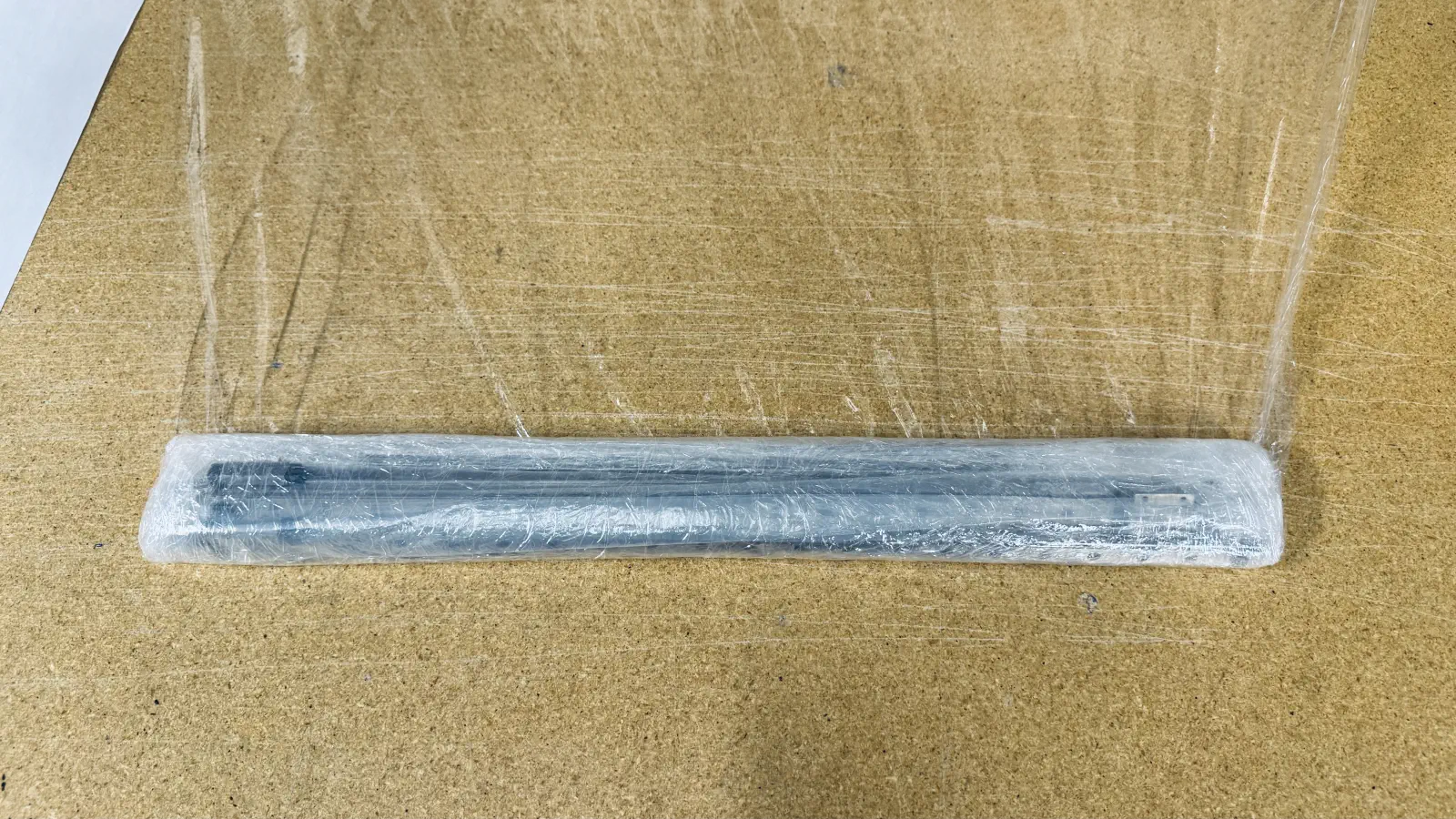

    alt text alt text alt text

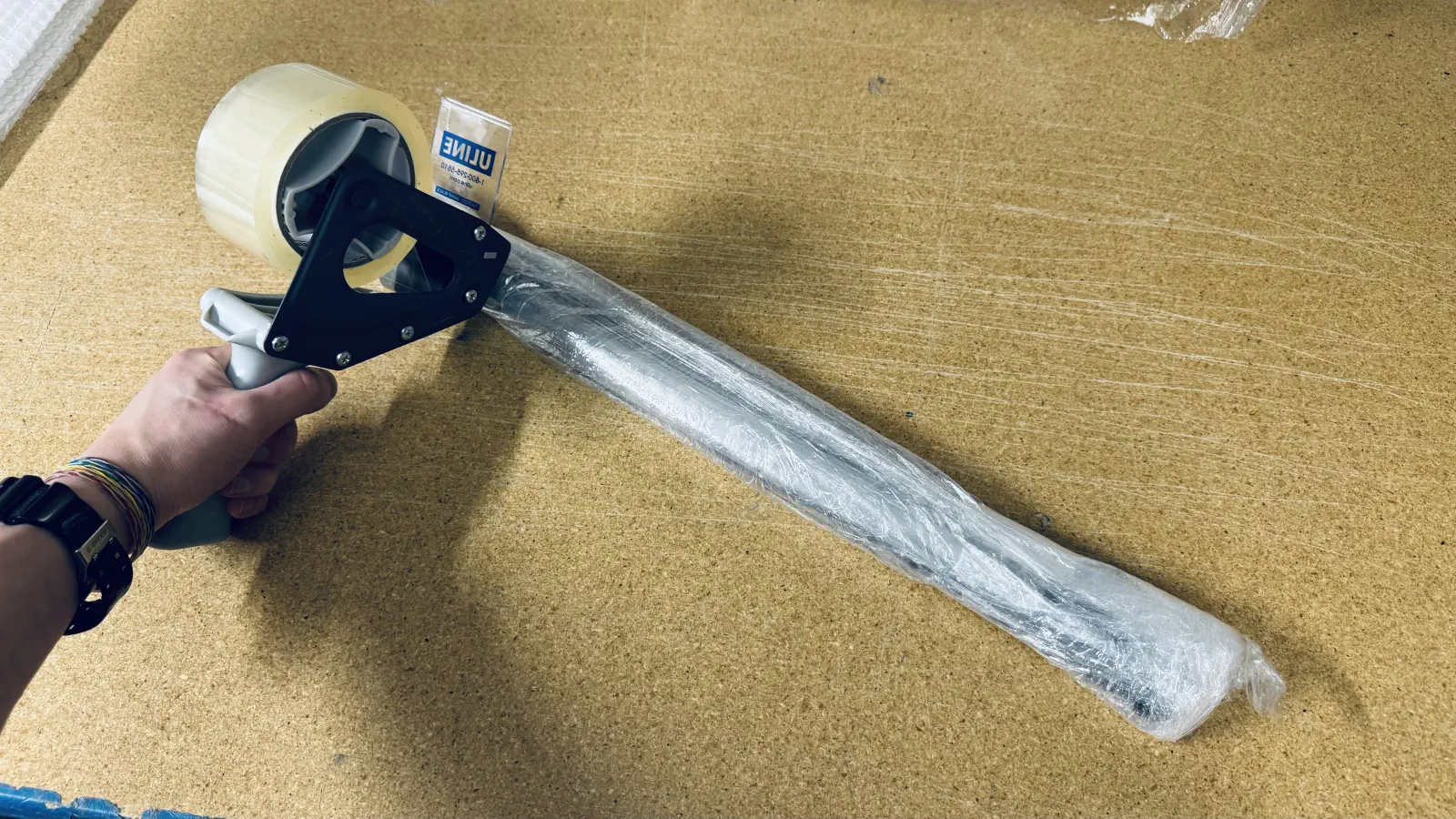

  • Tape up the plastic wrapped rails so it can't come undone

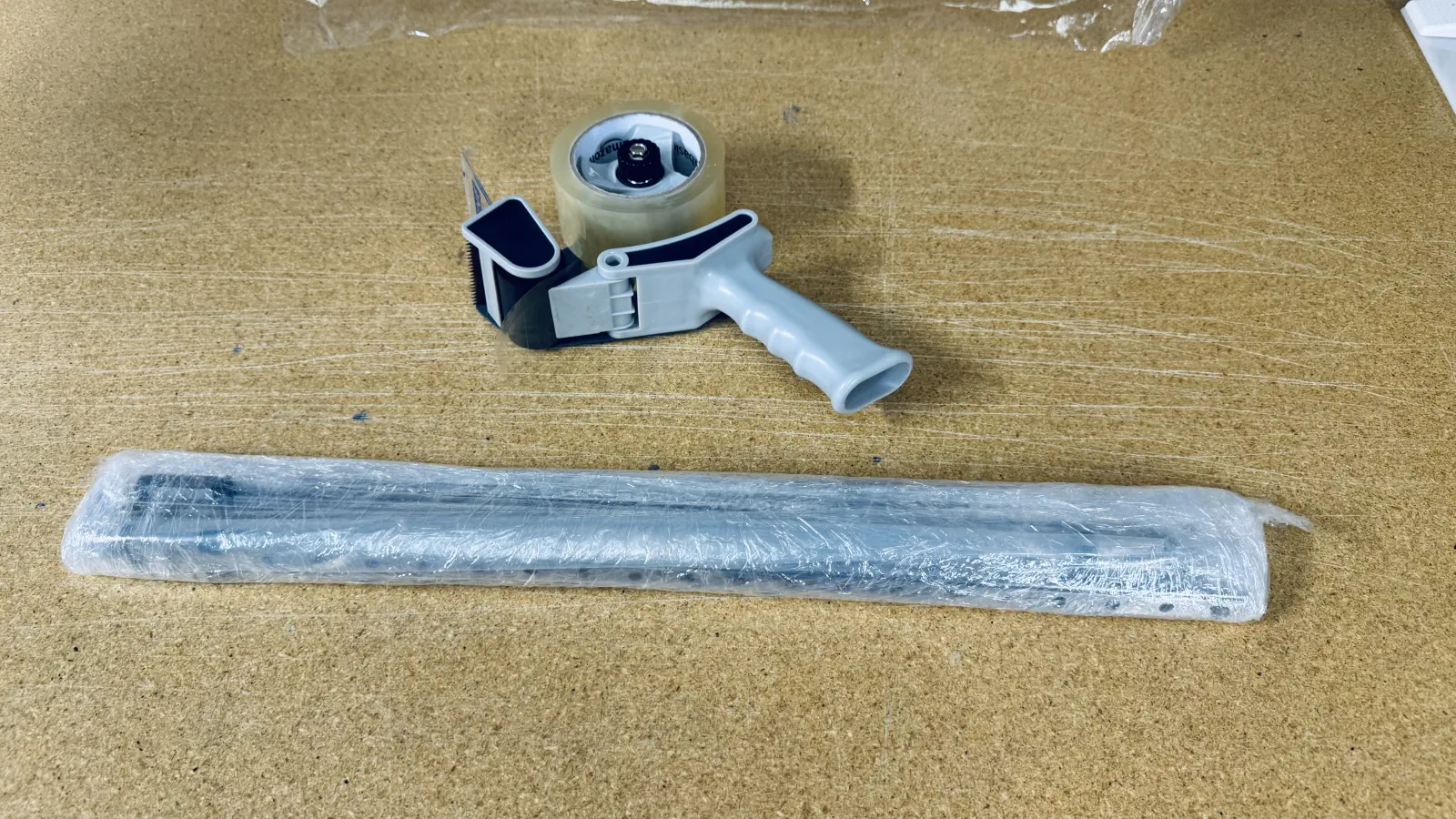

    alt text alt text

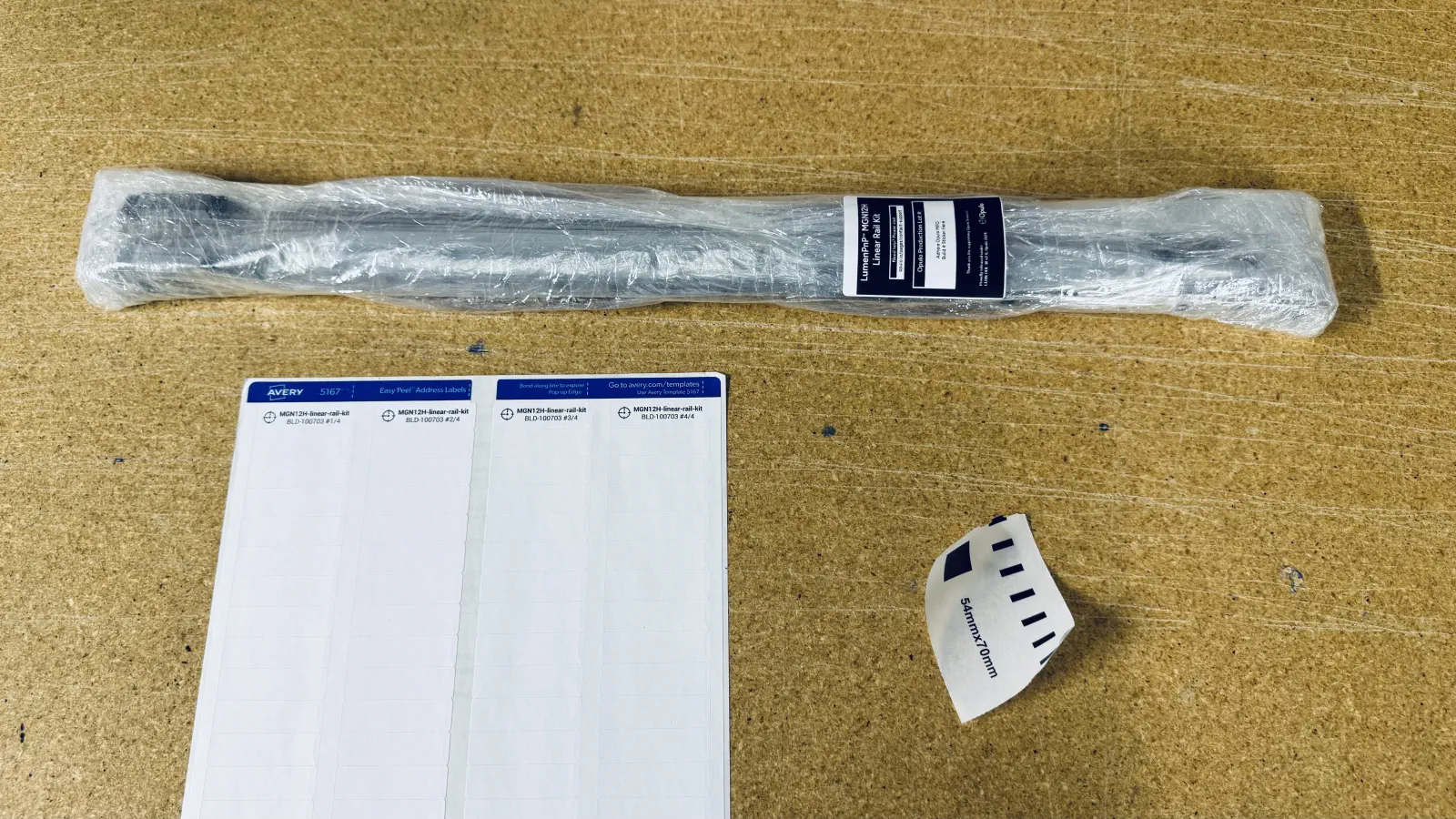

  • Adhere a product-label

    alt text alt text

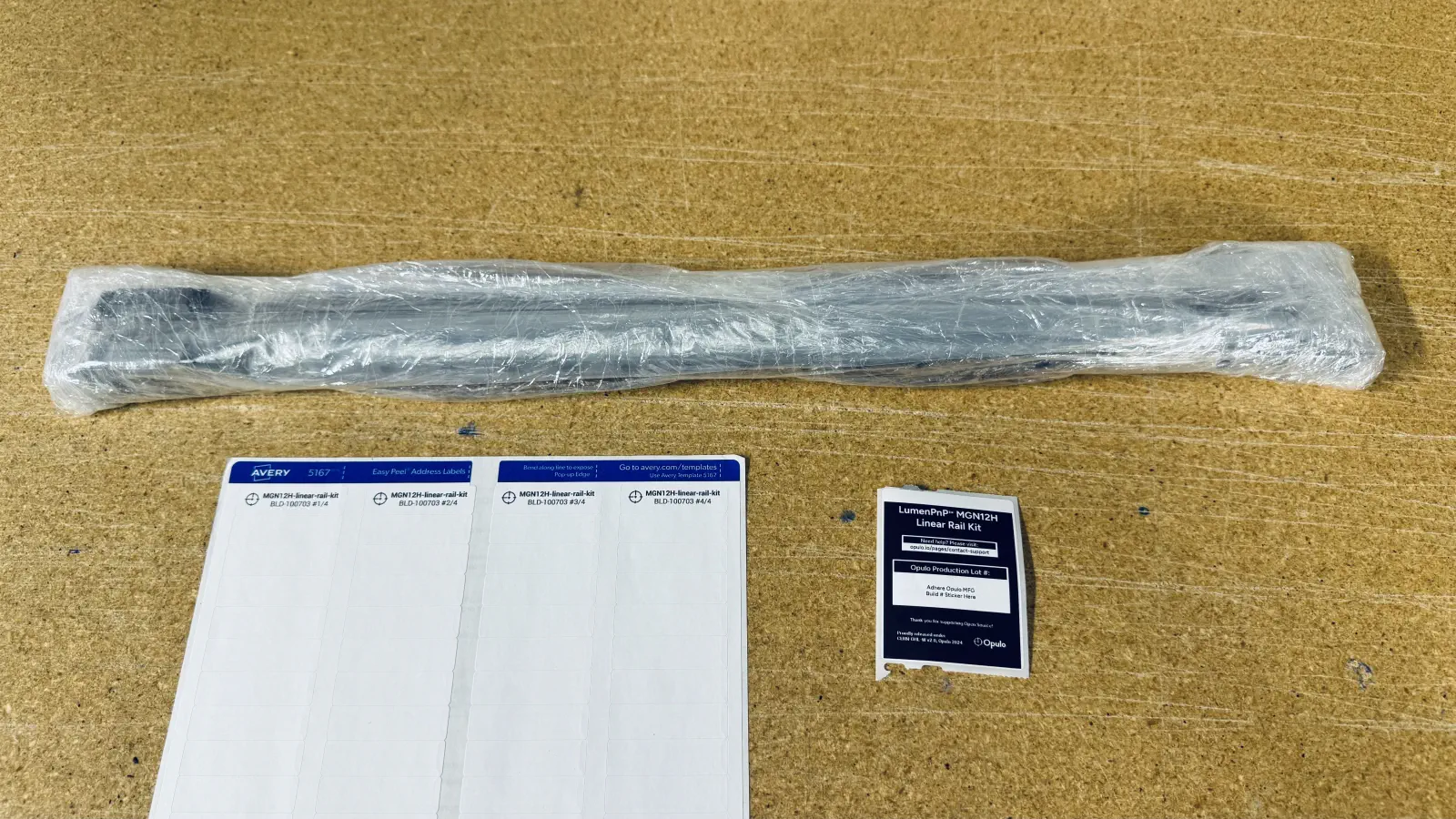

  • Adhere a build-number-sticker to the LumenPnP MGN12H Linear Rail Kit

    alt text

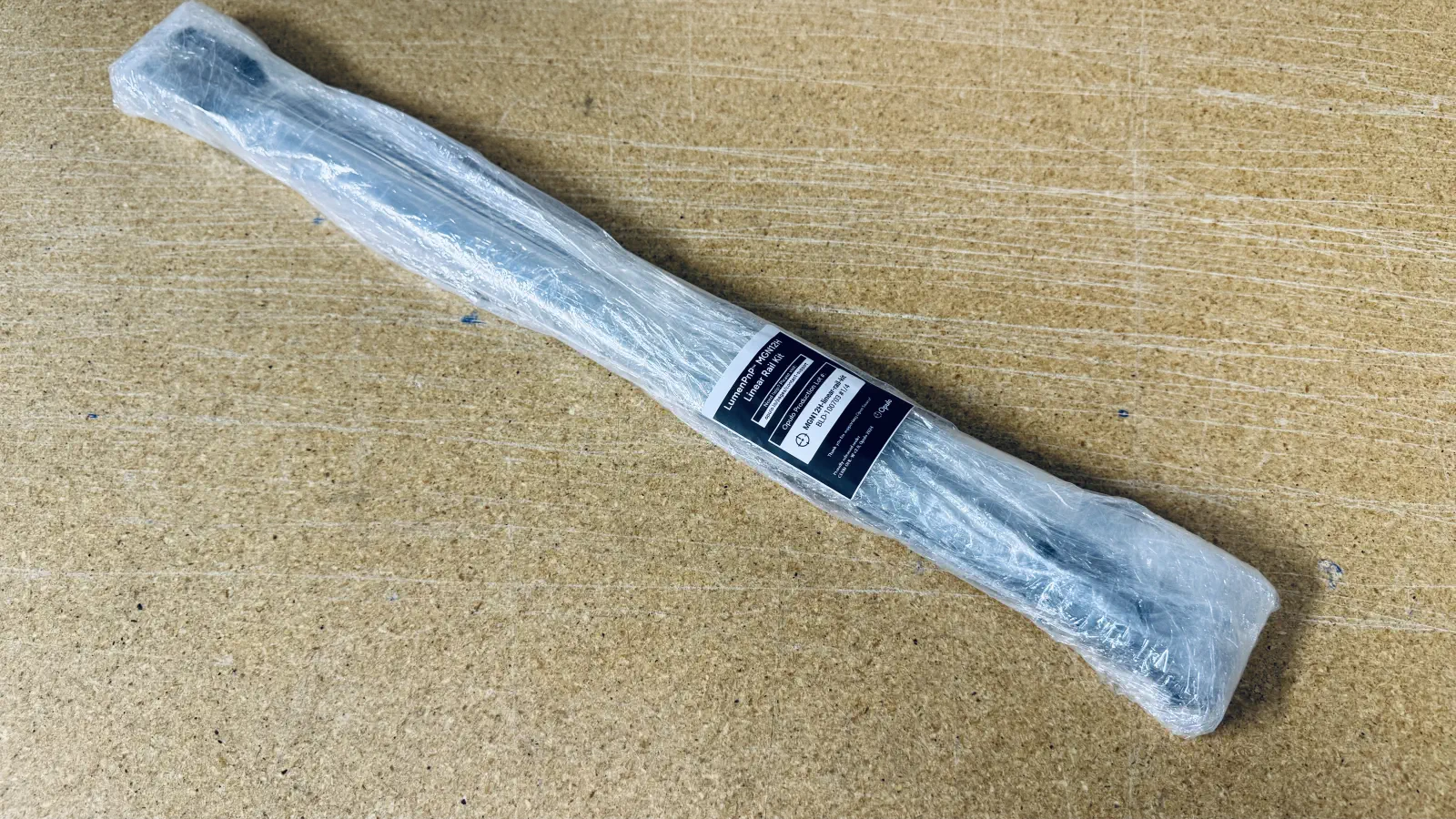

The LumenPnP MGN12H Linear Rail Kit is now ready for packout!
