LumenPnP 24vDC 6A Power Supply

Purpose

The purpose of this work instructions is to document the assembly process for the LumenPnP 24vDC 6A Power Supply.

Instructions

• Collect the following items from inventory:

  • 1x 24vDC 6A Power Supply

  • 1x N515-C13-PWR-CBL

    This is nerd-speak for USA-style 3-prong power cord

  • 1x 6x9-bag

  • 1x product-label
  • 1x build-number-sticker

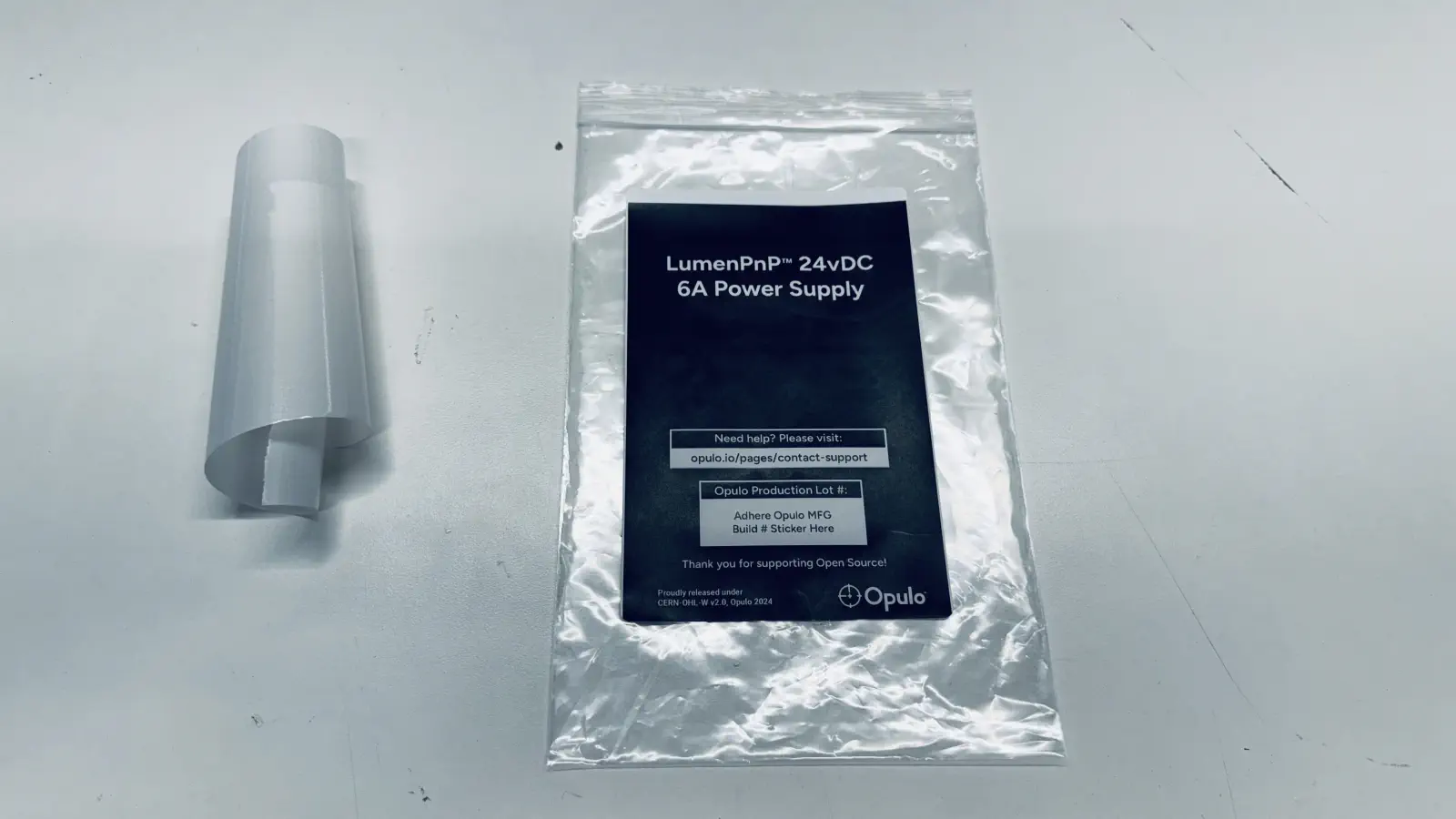

• Adhere a product-label to the 6x9-bag

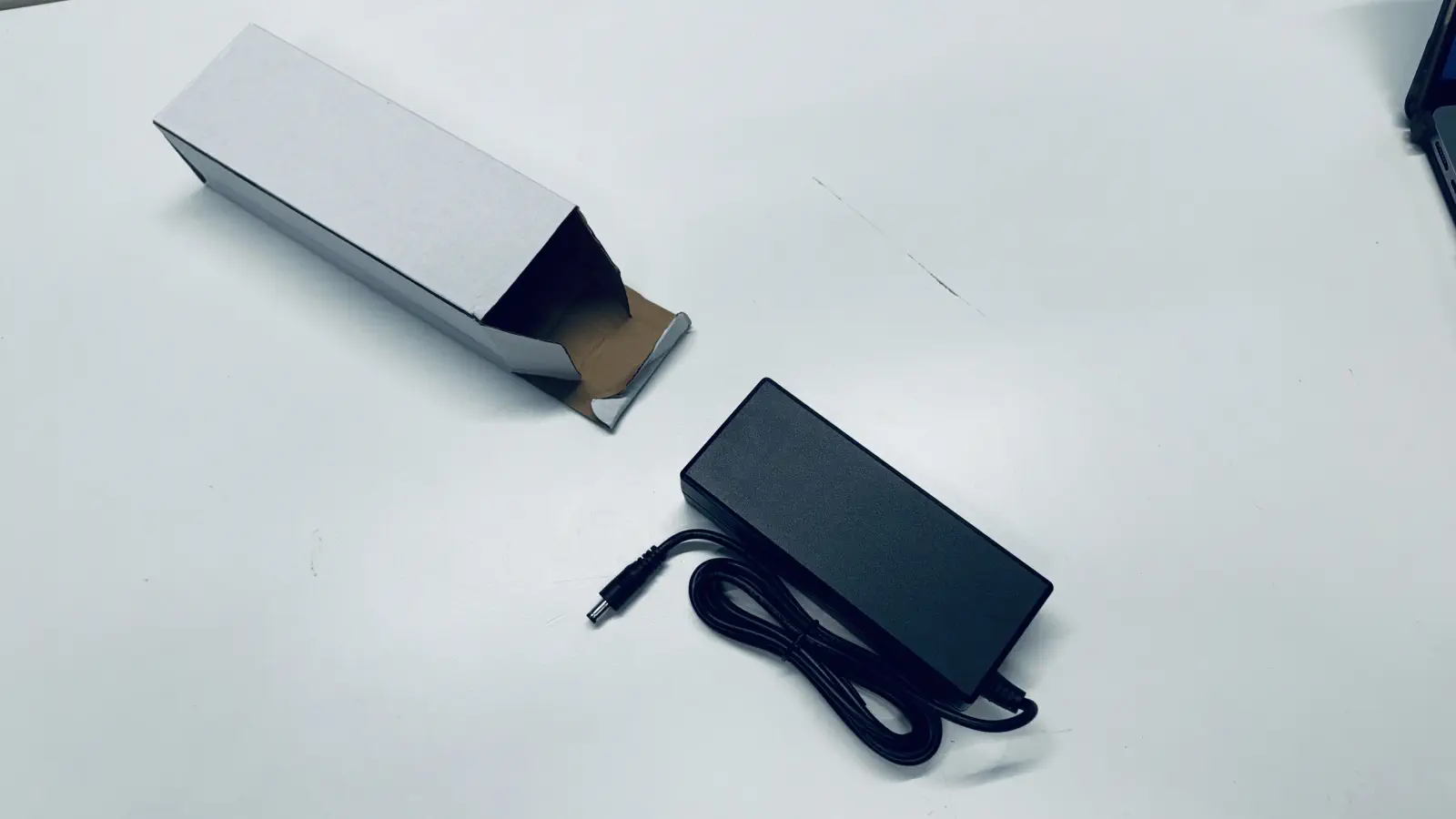

• Unbox the 24vDC 6A Power Supply

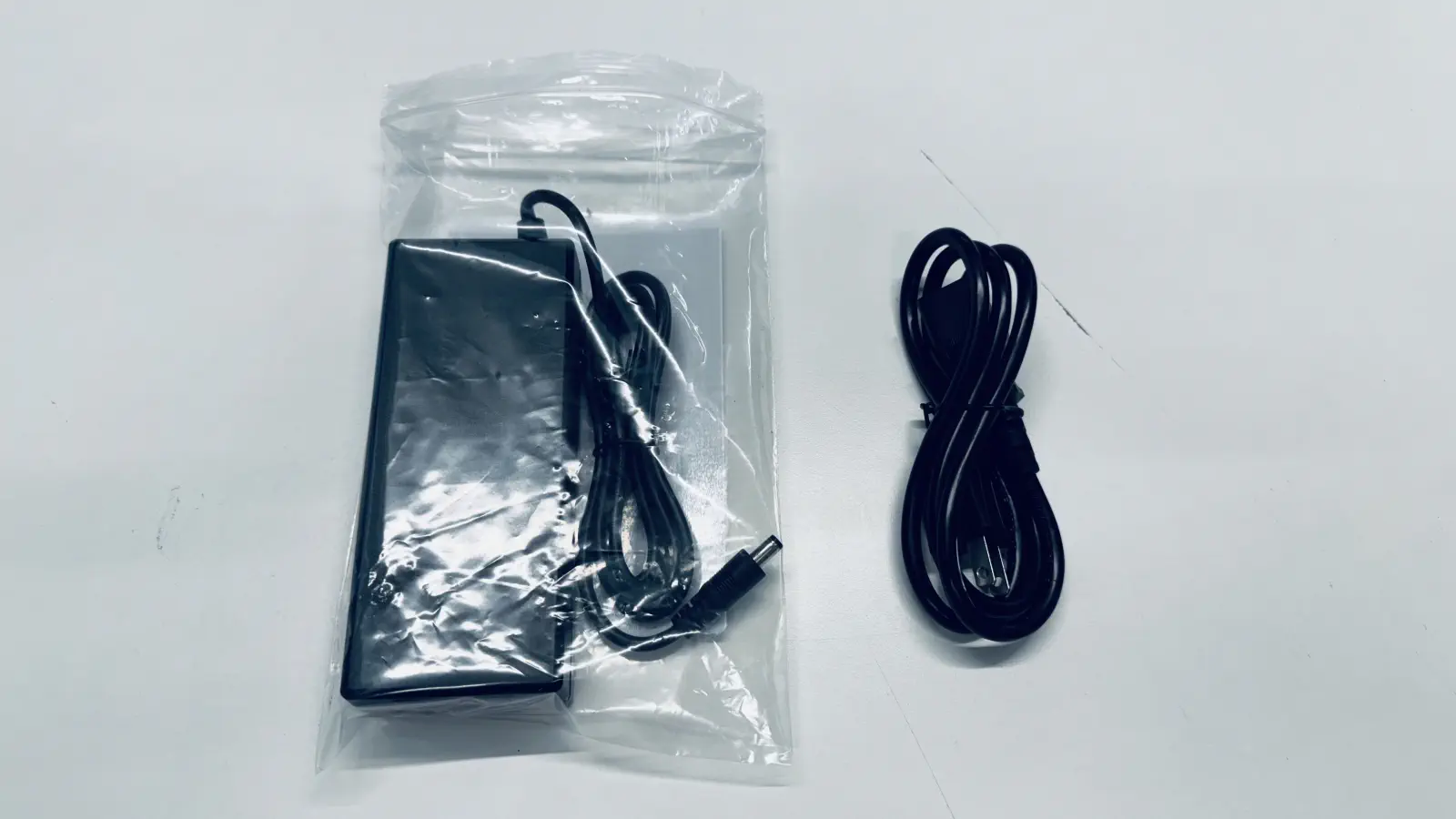

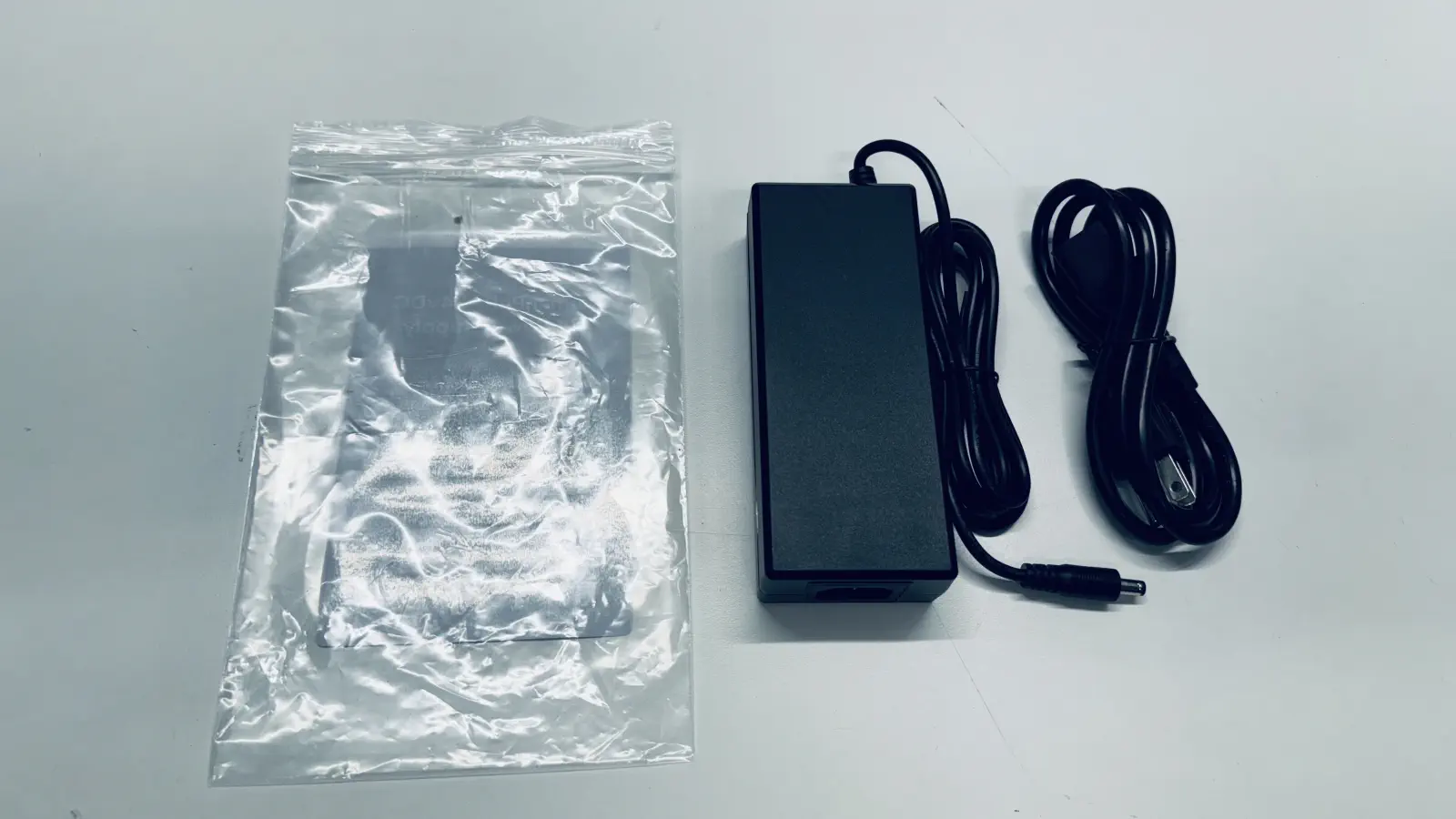

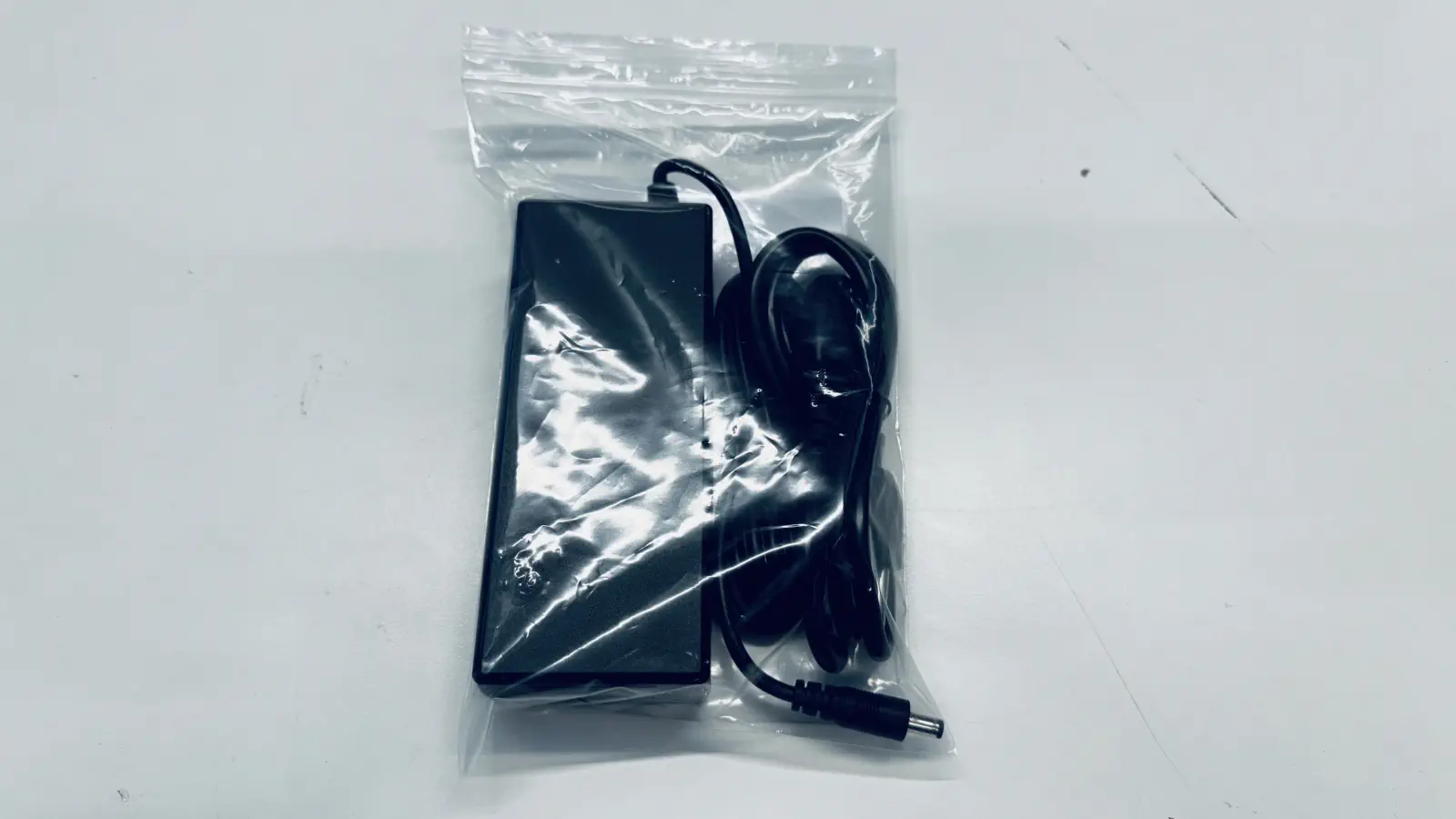

• Place a 24vDC 6A Power Supply and N515-C13-PWR-CBL into the 6x9-bag before sealing it shut

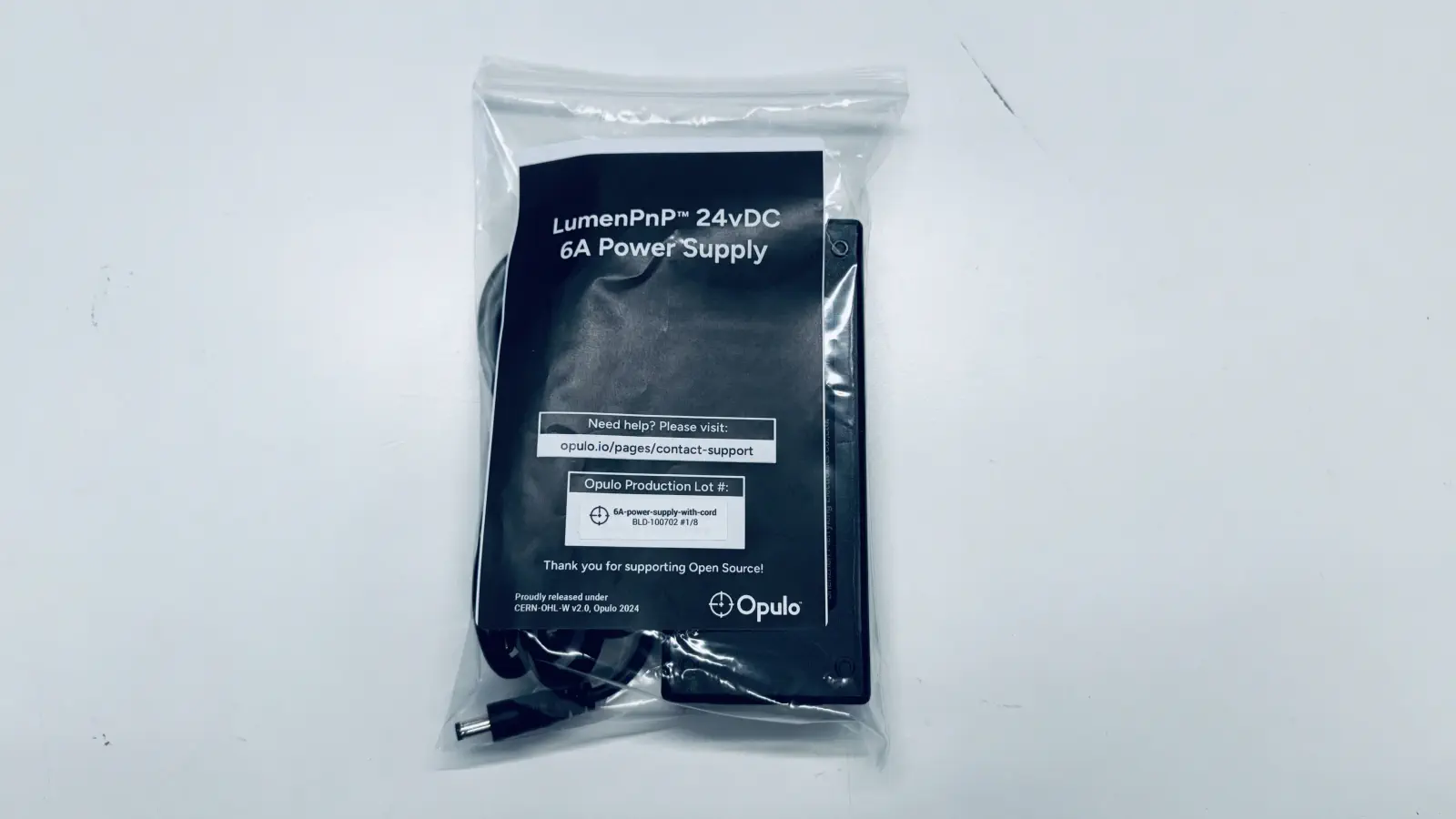

• Adhere a build-number-sticker to the product-label as shown in the image below



The LumenPnP 24vDC 6A Power Supply is now ready for packout!
