LumenPnP v4 Camera Set

Purpose

The purpose of this work instruction is to guide the reader on how to produce the two variants of the LumenPnP v4 USB Camera Set.

The two variants are:

  • LumenPnP v4 USB Camera Set - No Cables
    • This a set of LumenPnP v4 cameras in foam tray, tape closed with 3 stickers adhered to the outside (including a build # sticker)
  • LumenPnP v4 USB Camera Set - Cables Included
    • This is a bagged version of the above product where the top-camera-harness and bottom-camera-harness are also included
    • The build number sticker is adhered to the product sticker

Instructions

LumenPnP v4 USB Camera Set - No Cables

Create LumenPnP v4 Camera Set for "no cable variant"

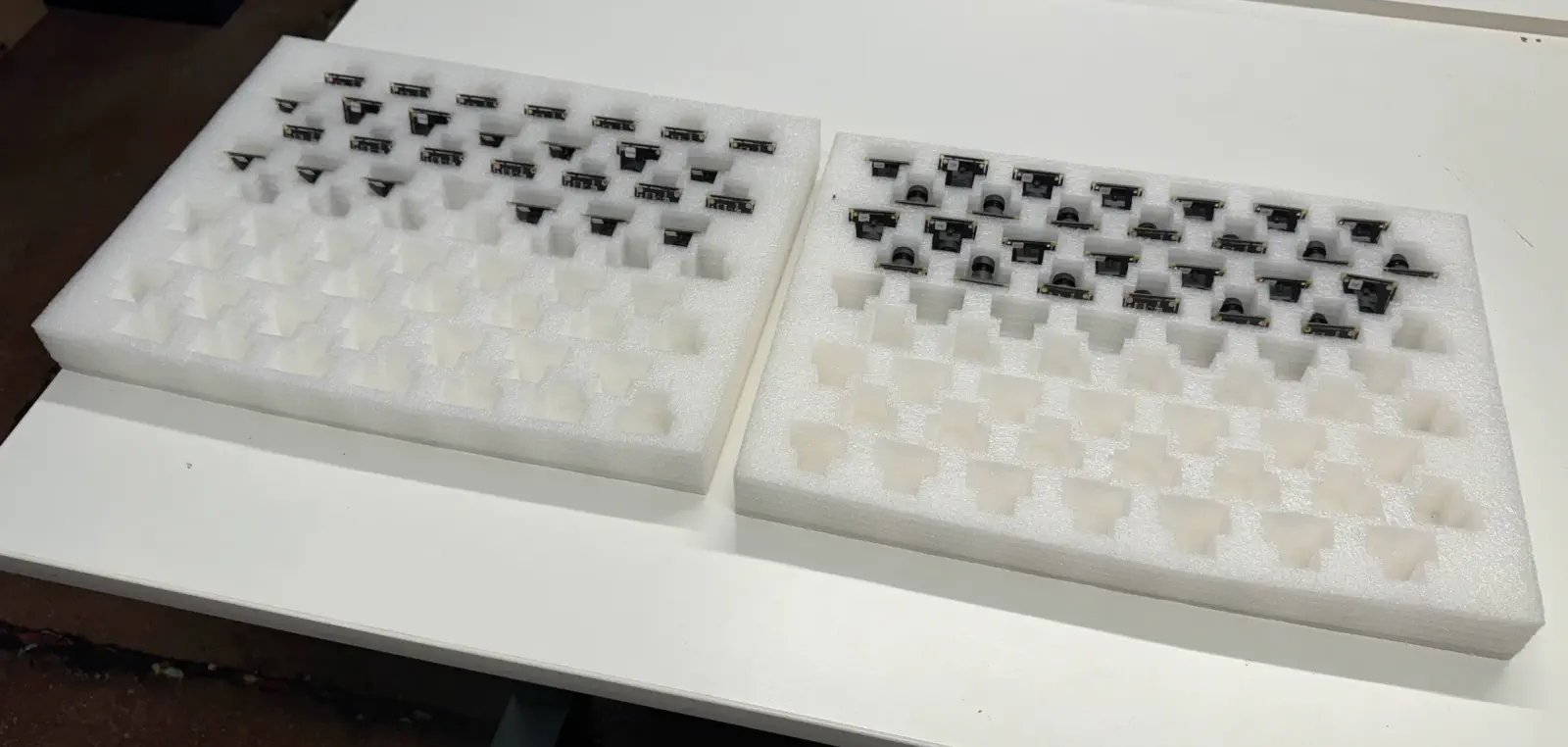

  • Collect the bulk packaged top-camera and bottom-camera from inventory alt text

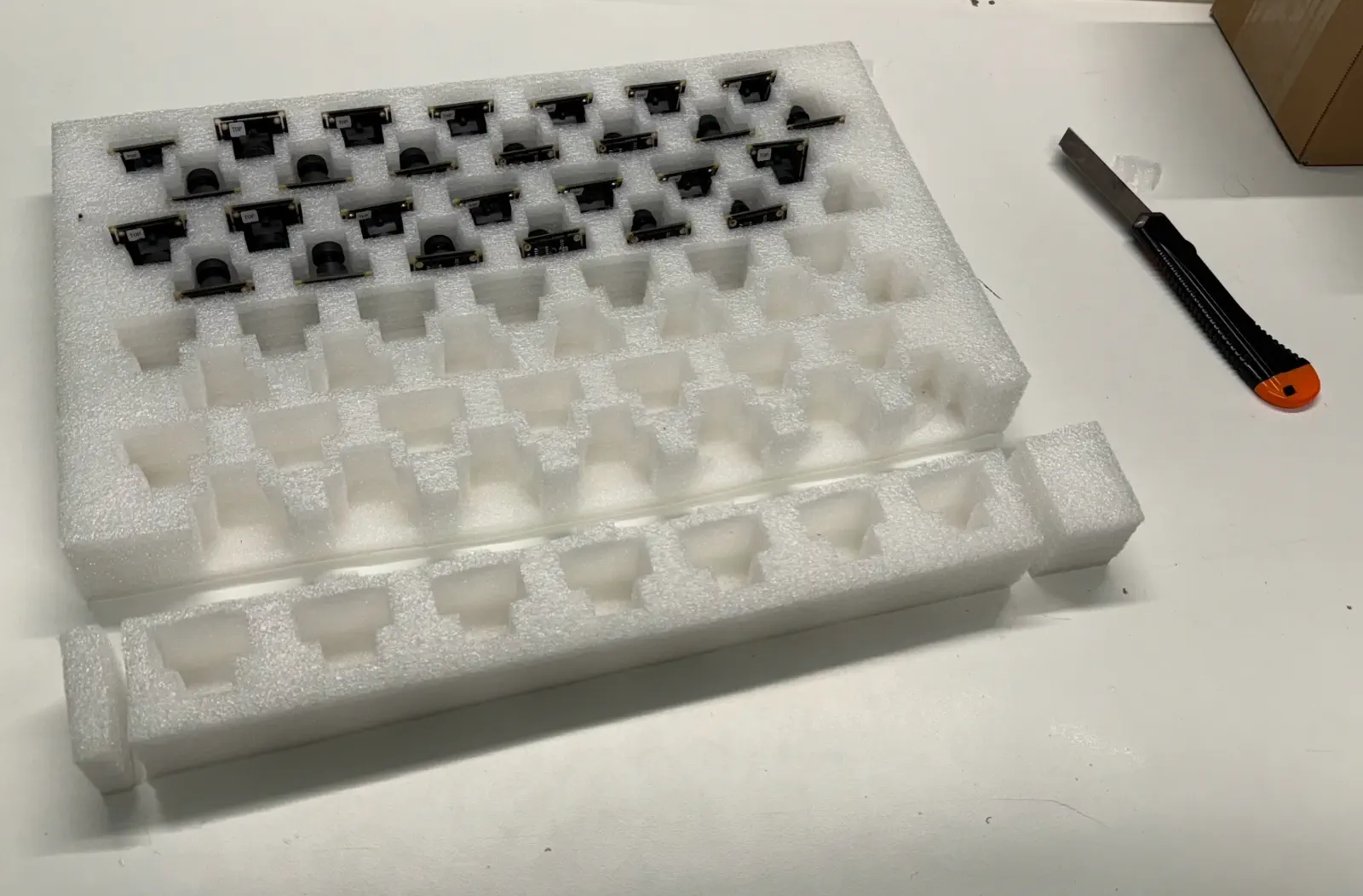

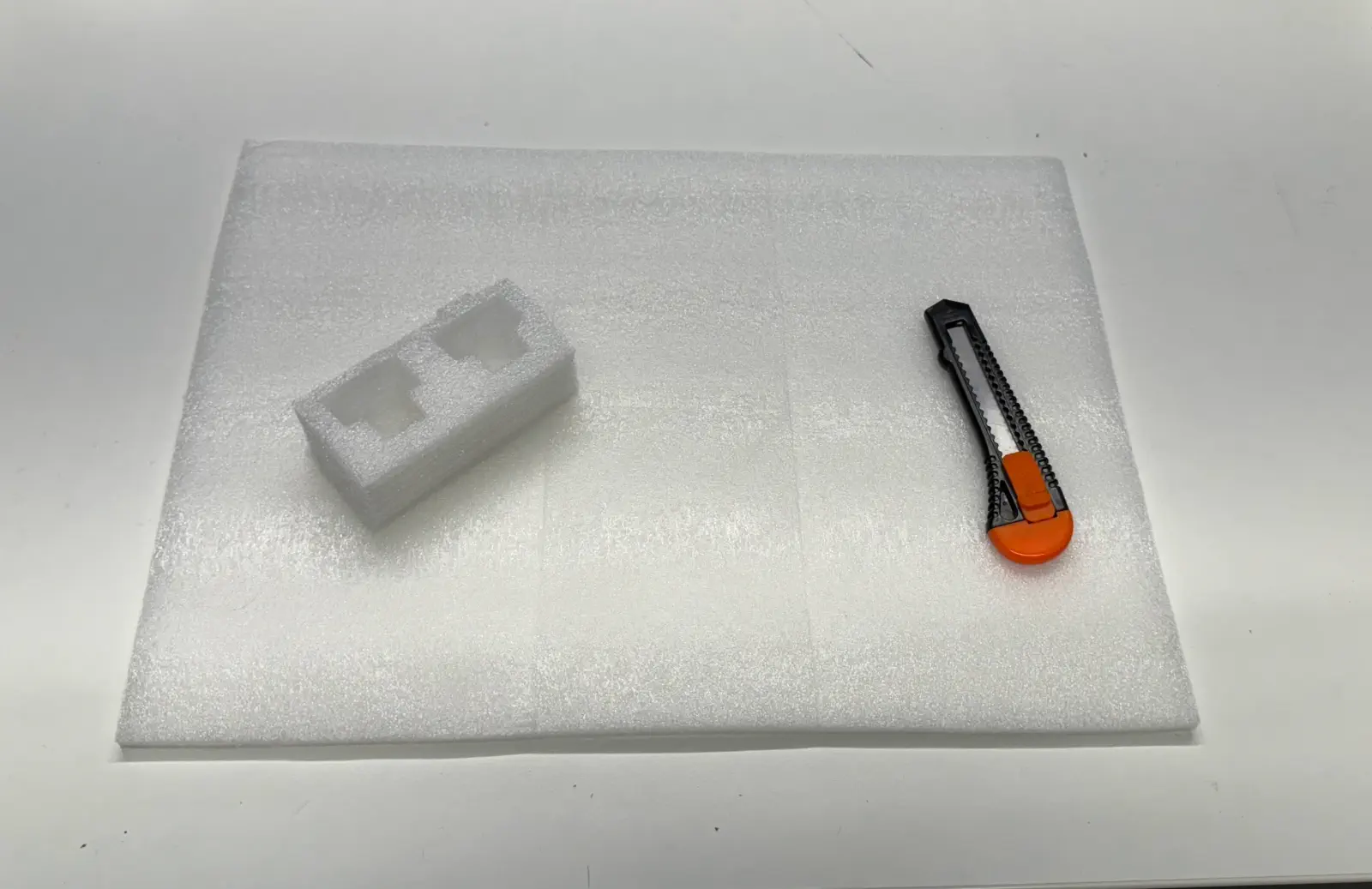

  • Cut off an empty row off a foam-tray alt text
  • Trim the now freed row into three sections that can each hold two cameras alt text

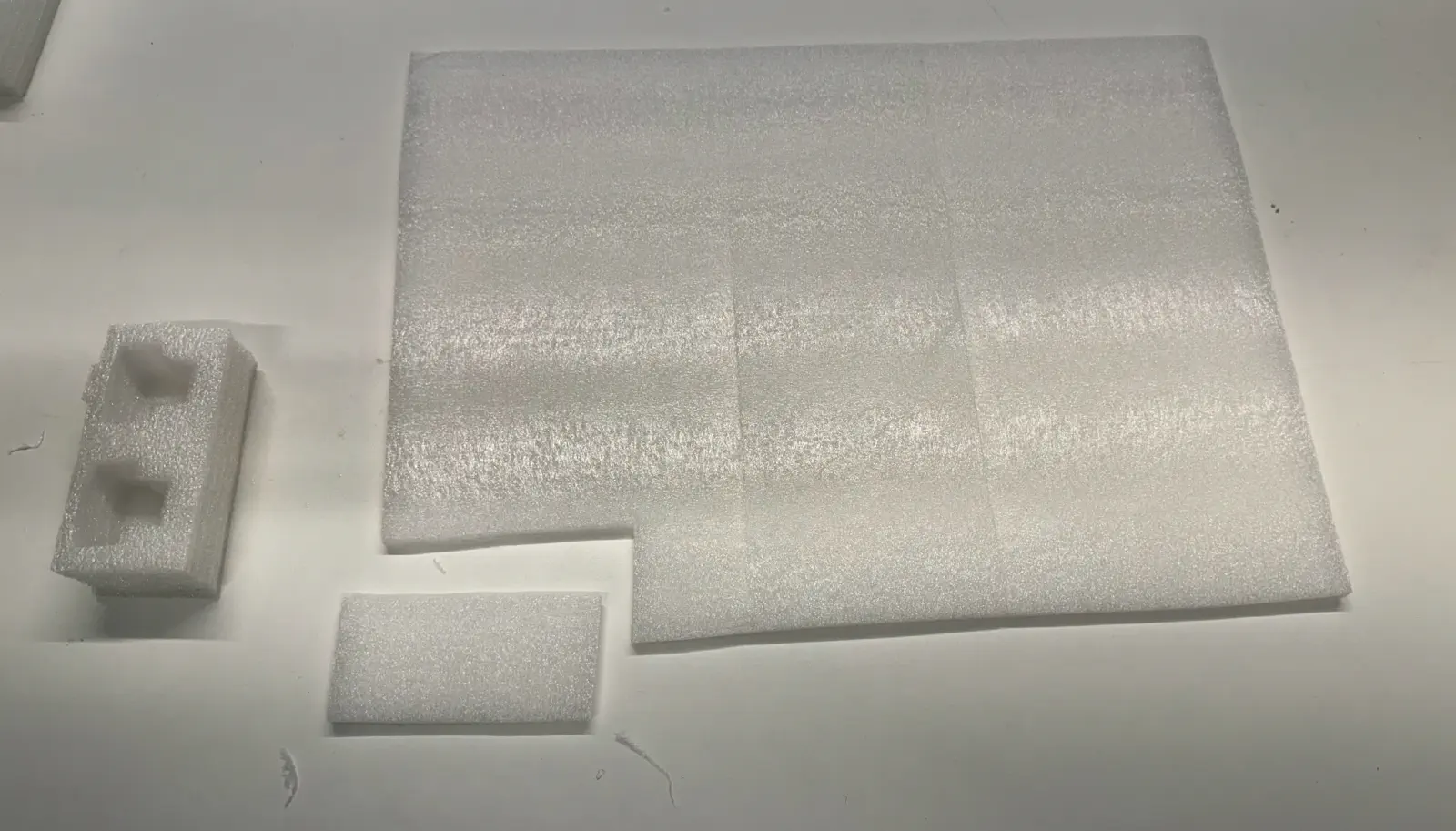

  • Use one of the smaller foam-tray pieces as a cutting template to make corresponding foam-top-lid pieces alt text alt text
  • Collect a top-camera and bottom-camera from inventory alt text

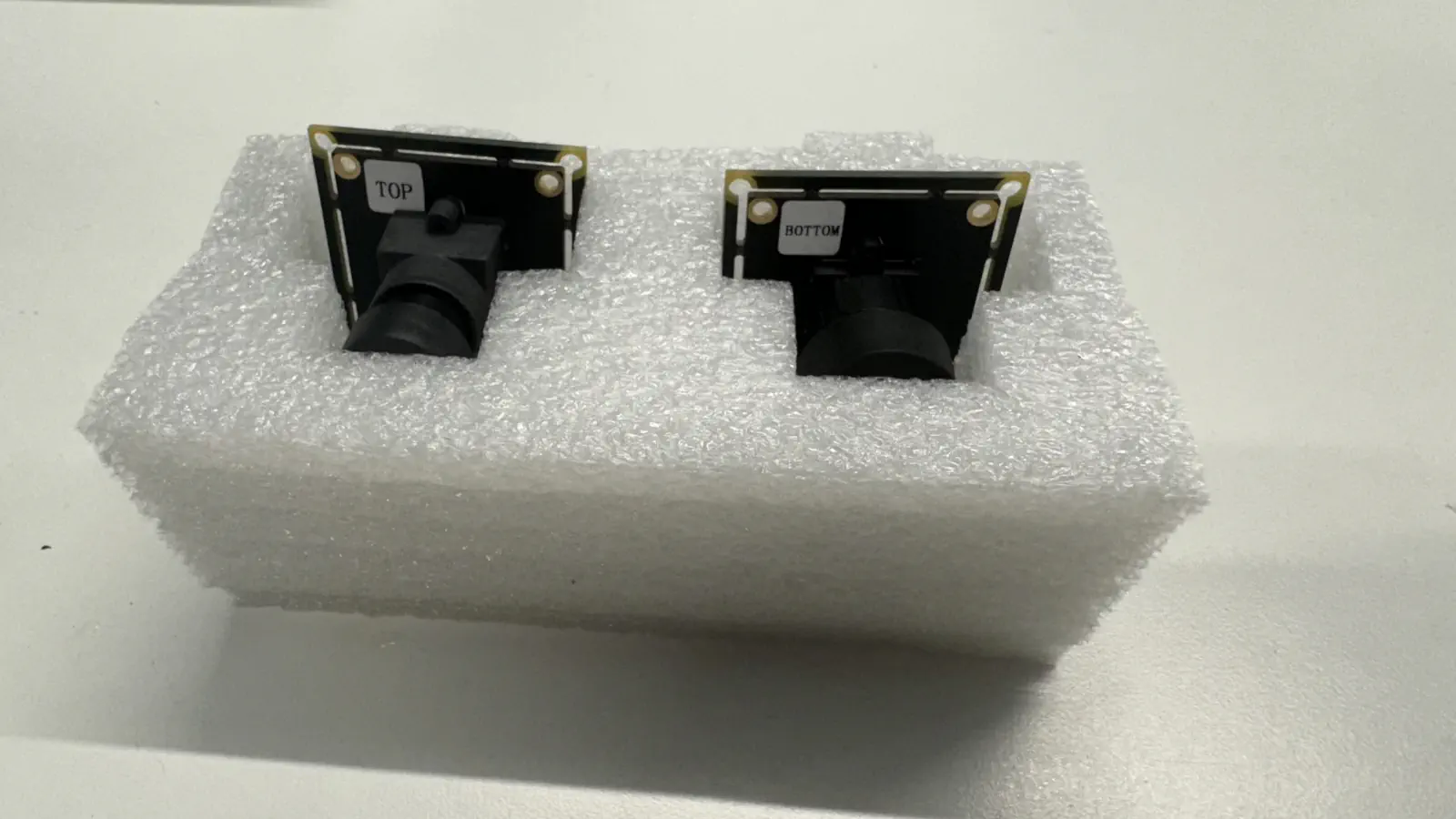

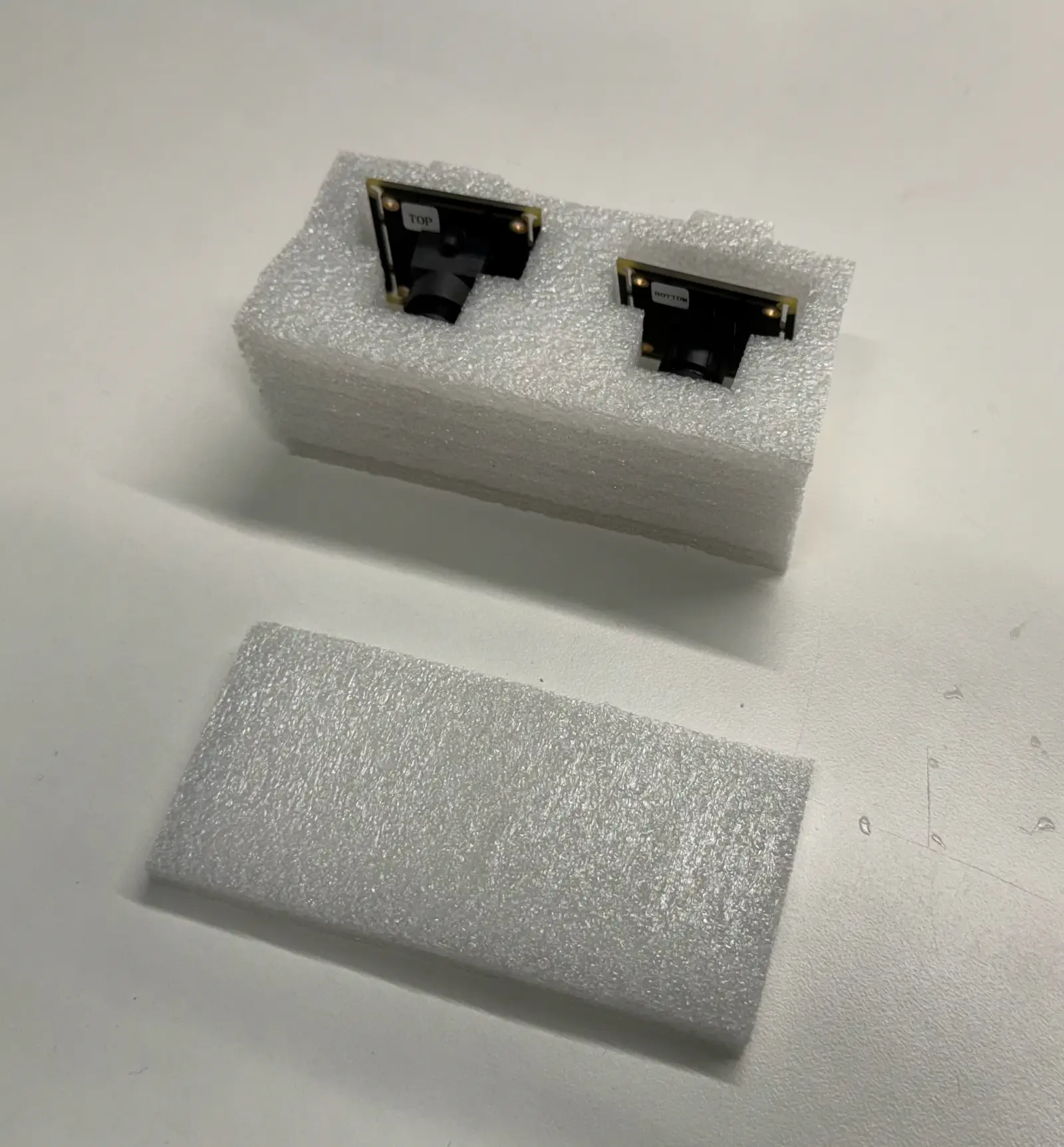

  • Place each camera into the previously-made foam-tray alt text
  • Collect a foam-top-lid from inventory alt text

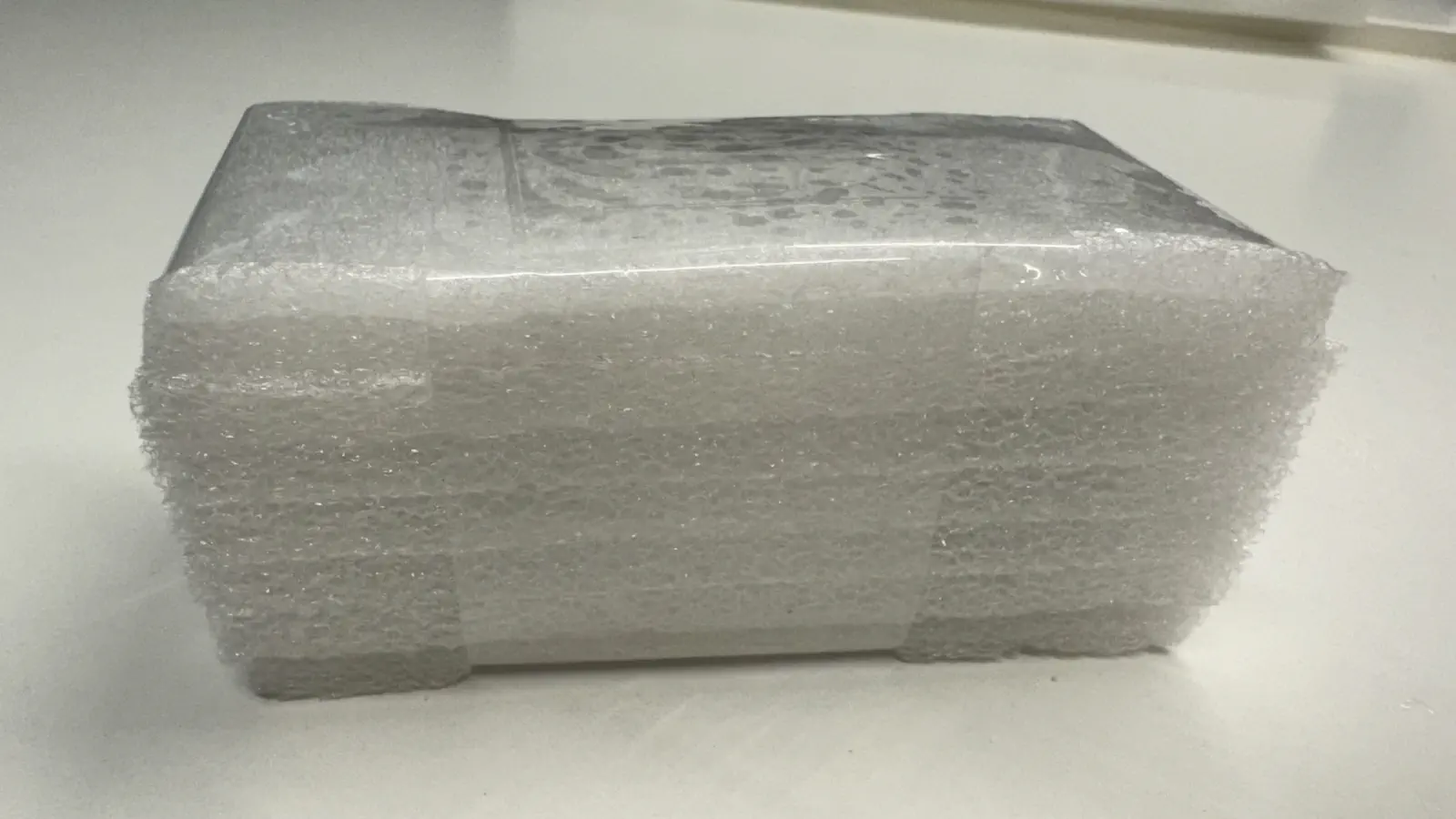

  • Tape the foam-top-lid to the foam-tray with two loops of 2" wide acrylic packaging tape alt text
  • Adhere an esd-safety-sticker to the front face of foam-tray alt text
  • Collect a LumenPnP v4 Camera Set Sticker from inventory alt text

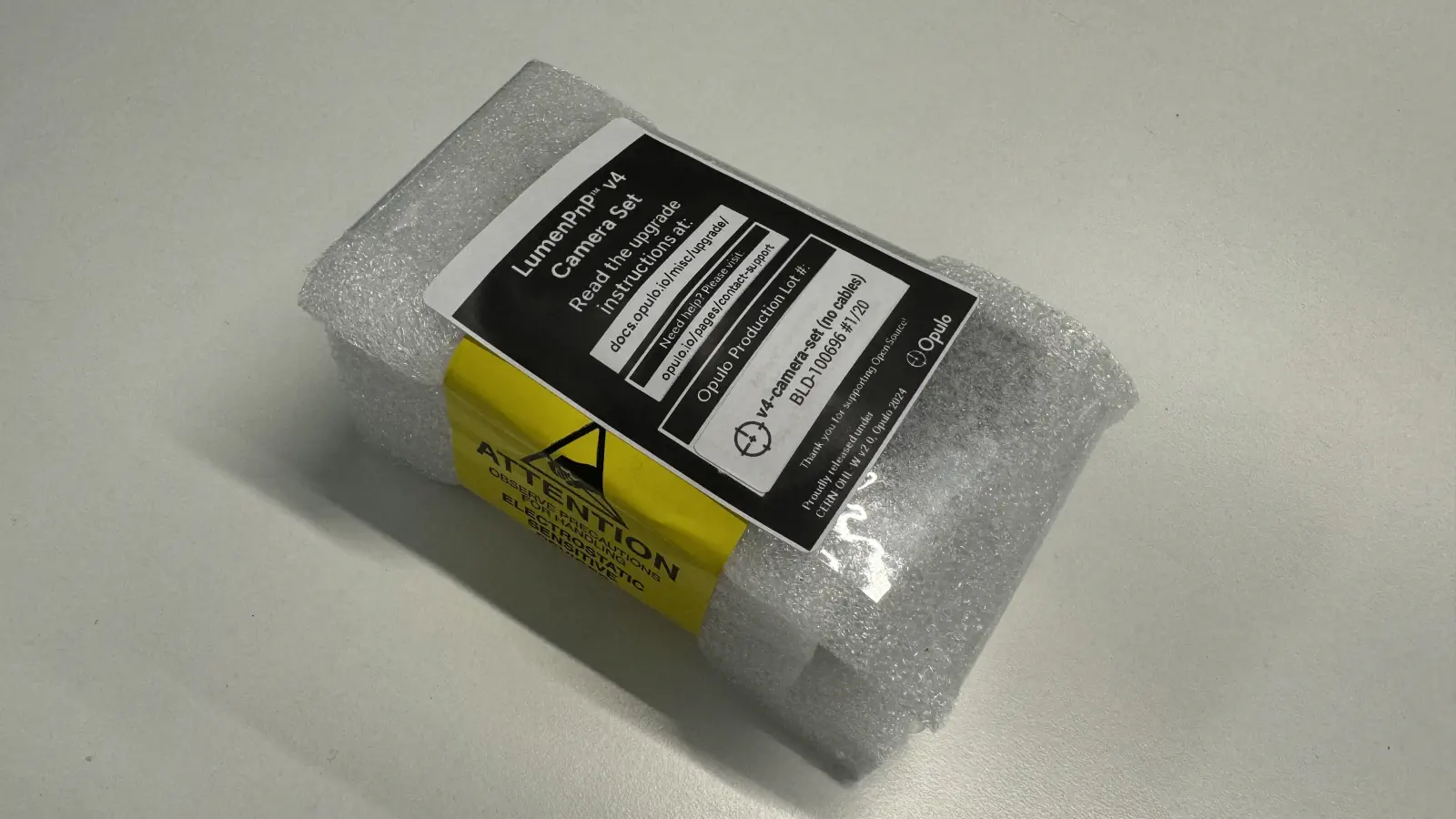

  • Adhere a LumenPnP v4 Camera Set Sticker to the top of foam-top-lid alt text
  • Adhere a build-number-sticker to the underside of the foam-tray alt text

If you are making LumenPnP v4 USB Camera Set - No Cables

You may stop here and set the completed LumenPnP v4 USB Camera Set - No Cables aside for packout

LumenPnP v4 USB Camera Set - With Cables

Create LumenPnP v4 Camera Set for "with cable variant"

A built number sticker is not adhered to the foam tray

  • Collect the bulk packaged top-camera and bottom-camera from inventory alt text
  • Cut off an empty row off a foam-tray alt text
  • Trim the now freed row into three sections that can each hold two cameras alt text
  • Use one of the smaller foam-tray pieces as a cutting template to make corresponding foam-top-lid pieces alt text alt text
  • Collect a top-camera and bottom-camera from inventory alt text
  • Place each camera into the previously-made foam-tray alt text
  • Collect a foam-top-lid from inventory alt text
  • Tape the foam-top-lid to the foam-tray with two loops of 2" wide acrylic packaging tape alt text
  • Adhere an esd-safety-sticker to the front face of foam-tray alt text
  • Collect a LumenPnP v4 Camera Set Sticker from inventory alt text
  • Adhere a LumenPnP v4 Camera Set Sticker to the top of foam-top-lid alt text

Create Camera Cable Set

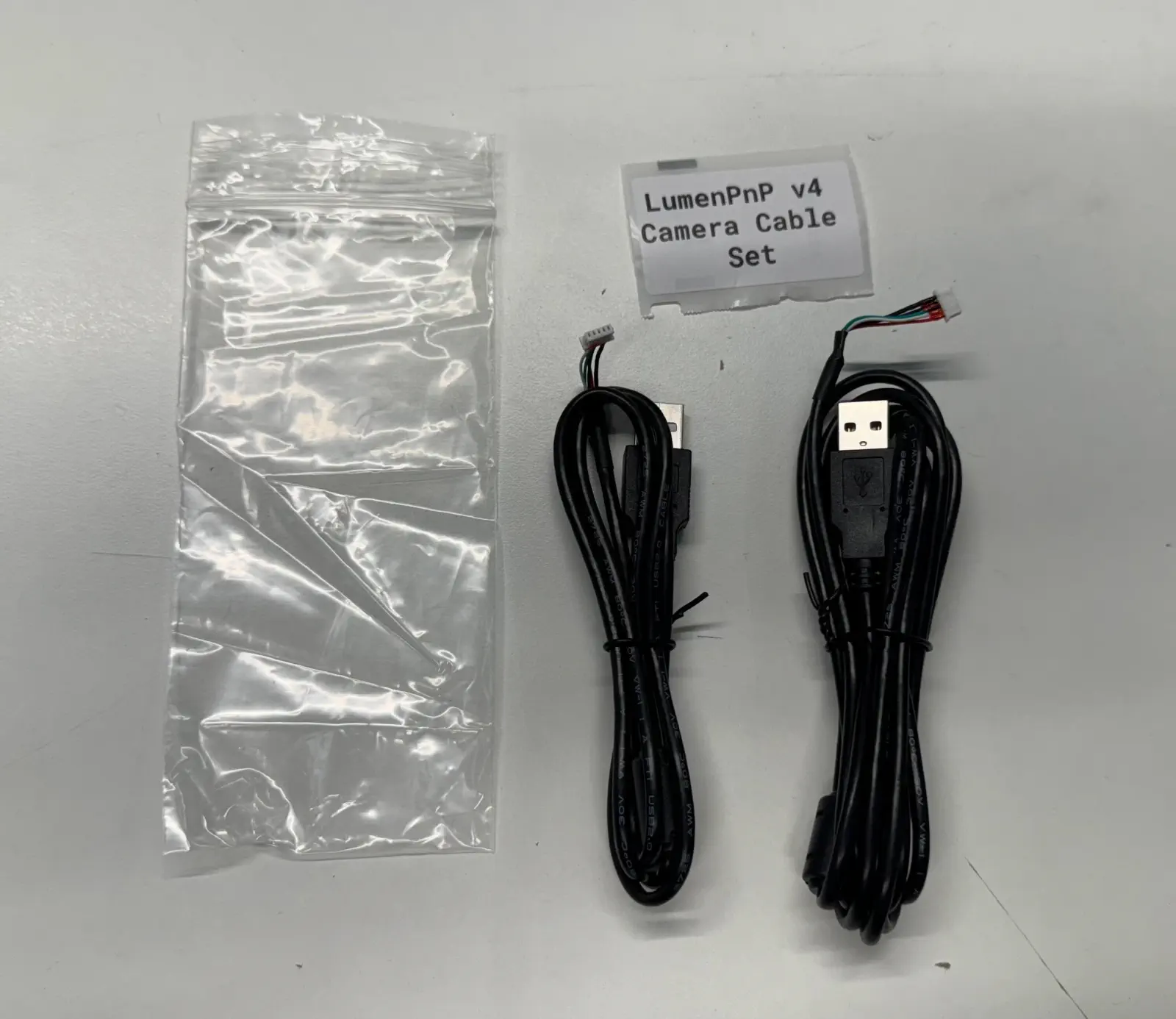

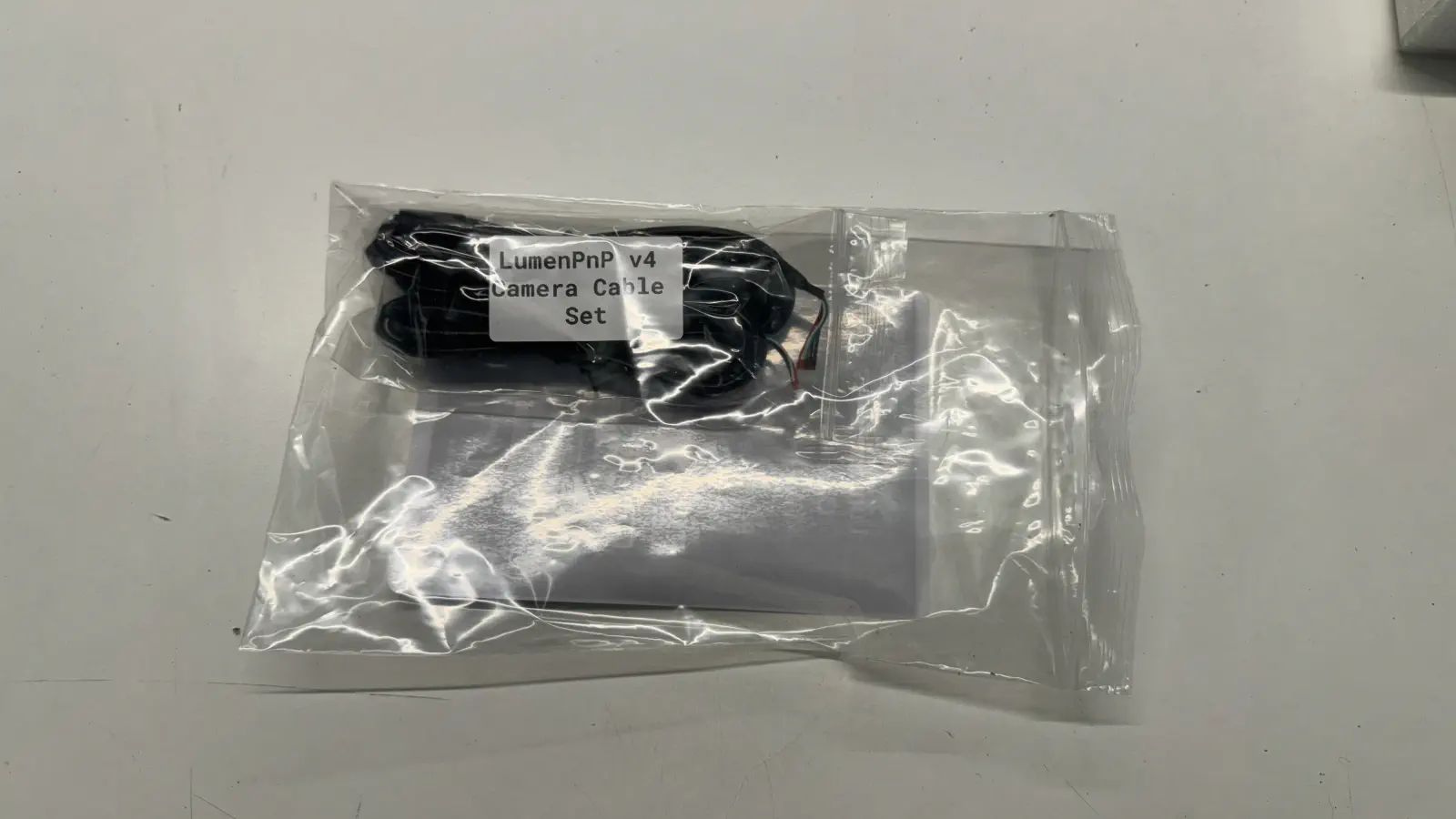

  • Place a top-camera-harness and bottom-camera-harness into a 3x6-bag before sealing it shut alt text

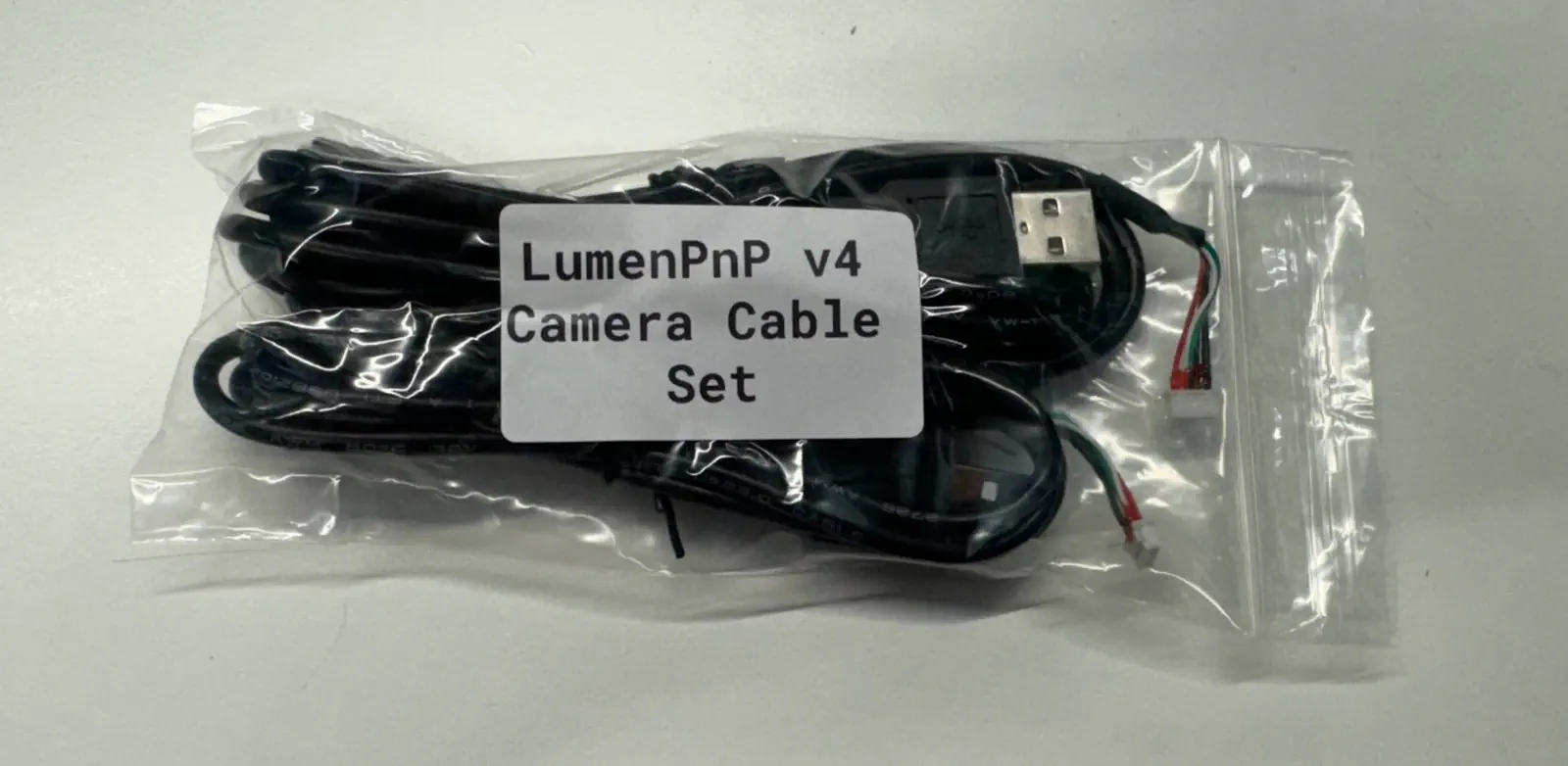

  • Adhere a LumenPnP v4 Camera Cable Set Sticker to the outside of the 3x6-bag alt text

Package the - With Cables variant

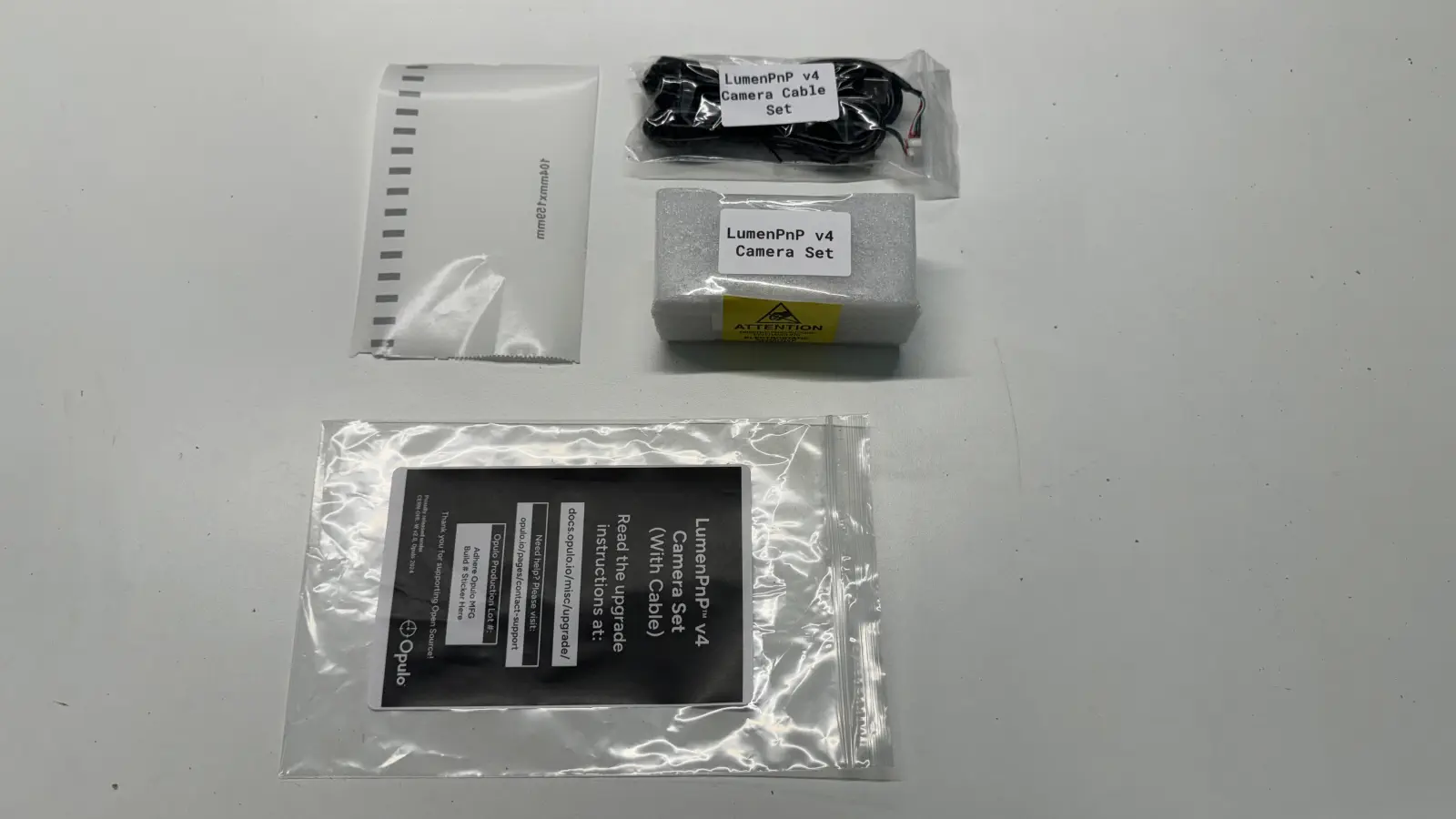

  • Layout the components

    alt text

  • Adhere a product label onto the 6x9-bag

    alt text

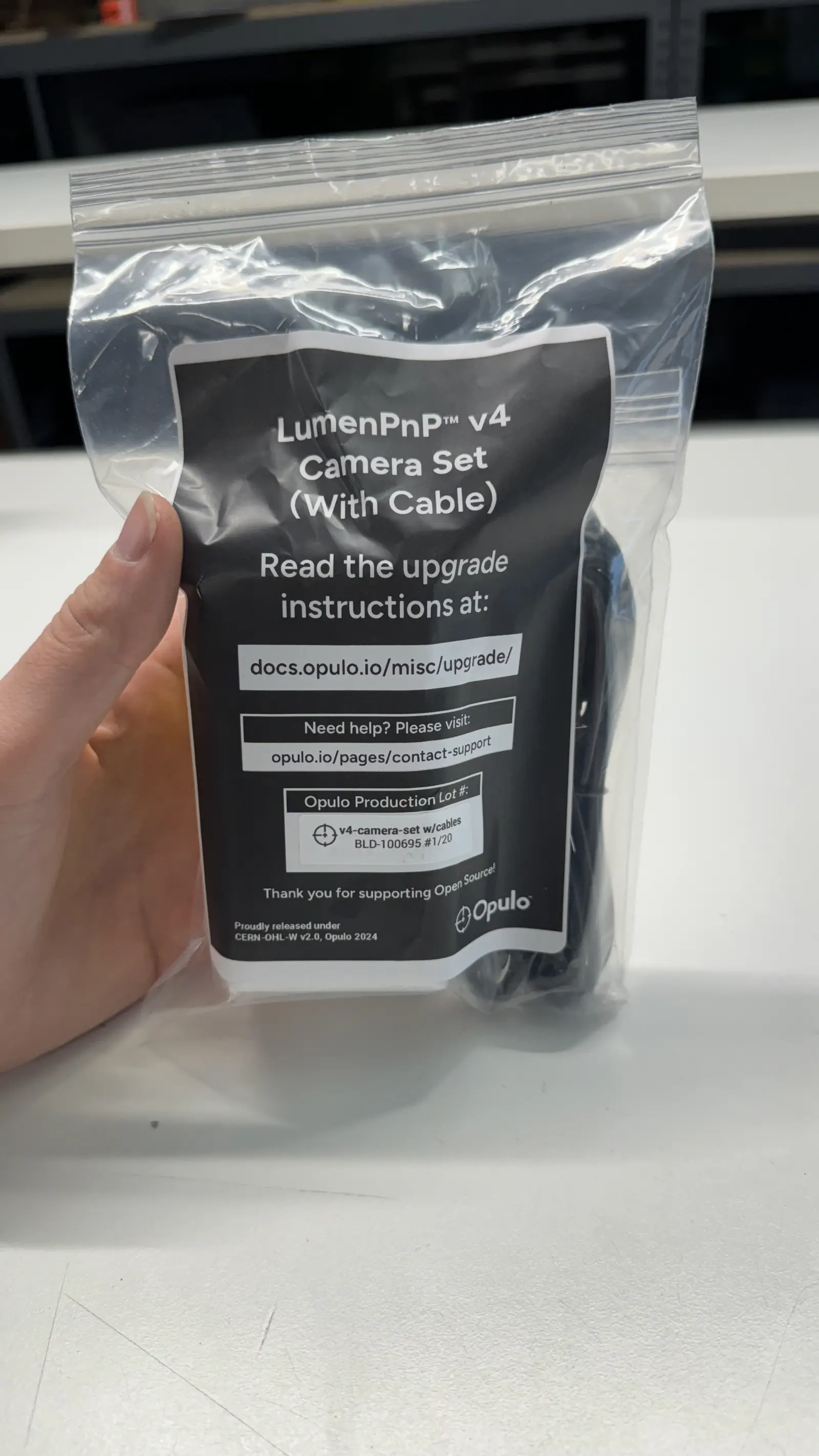

  • Place a packaged set of cameras and camera cable set into the 6x9-bag before sealing it shut

    alt text alt text alt text alt text

  • Adhere a build-number-sticker to the bottom of the 6x9-bag alt text alt text

The LumenPnP v4 USB Camera Set - With Cables is now ready to ship!
