LumenPnP v4 Toolhead Kit

Purpose

The purpose of this work instructions is to document the assembly process for the LumenPnP v4 Toolhead Kit.

Instructions

• Collect a nozzle-holder from inventory and confirm it meets the following QC requirements
  • Appears lubricated
  • Moves smoothly and in a straight path when actuated manually
  • Springs back to the extended position after being depressed by hand

• Collect a nozzle-camera-mask from inventory and confirm it is able to slide onto a nozzle-holder without requiring excessive force

  If installation requires the use of an arbor press...

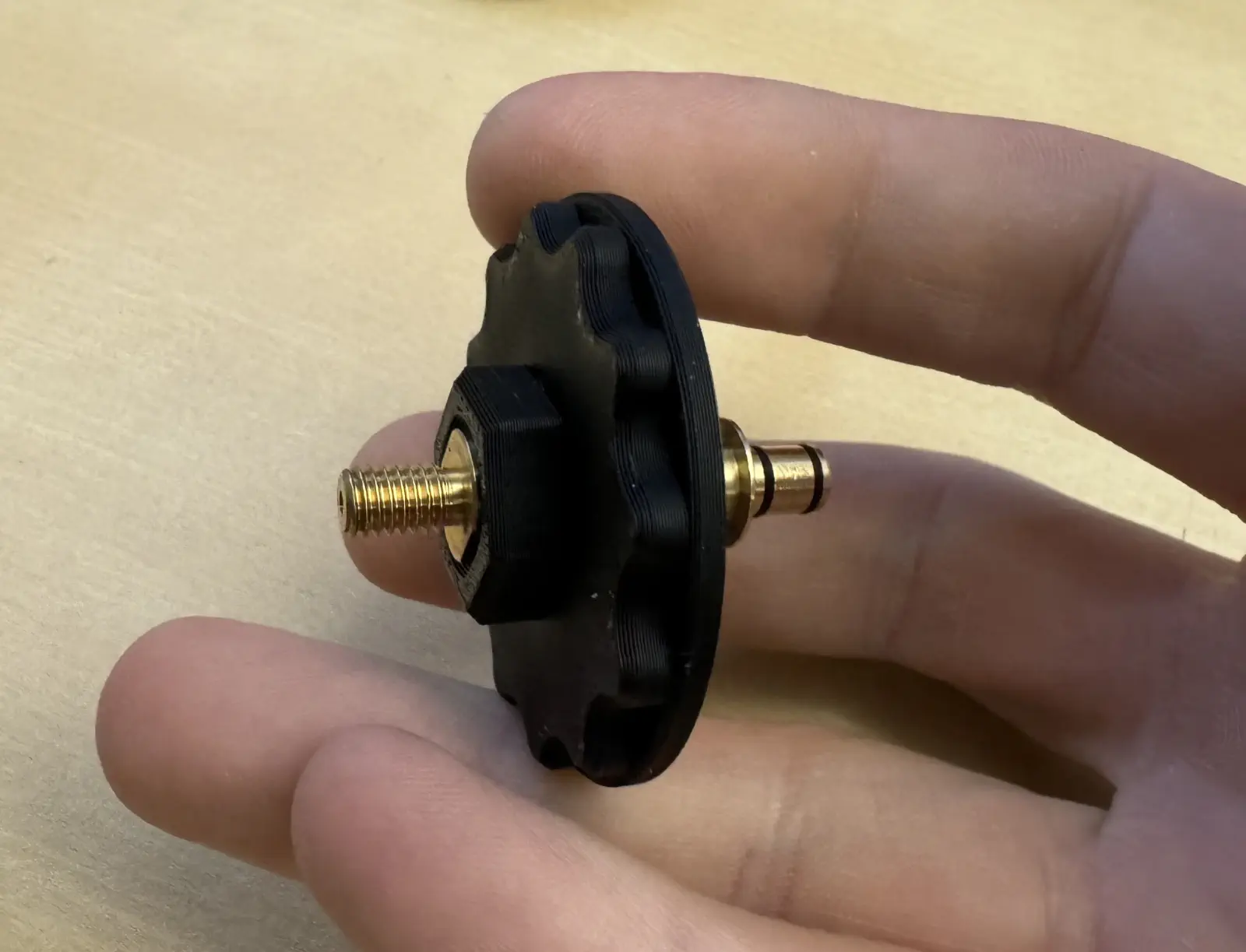

  You may proceed by pressing the nozzle-holder and nozzle-camera-mask together for the customer.

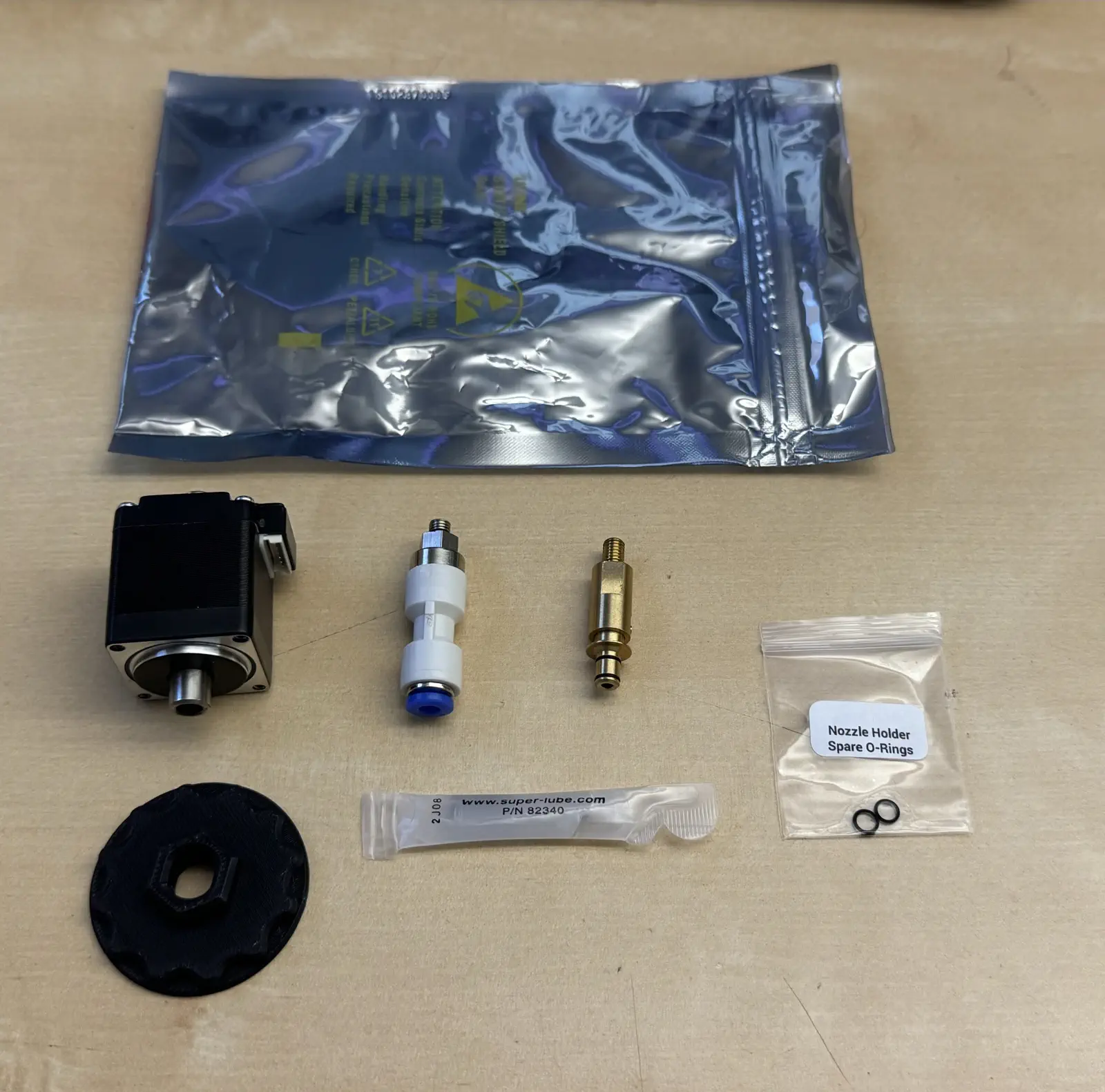

• Package the following items into a 4x6-esd-bag before sealing it shut

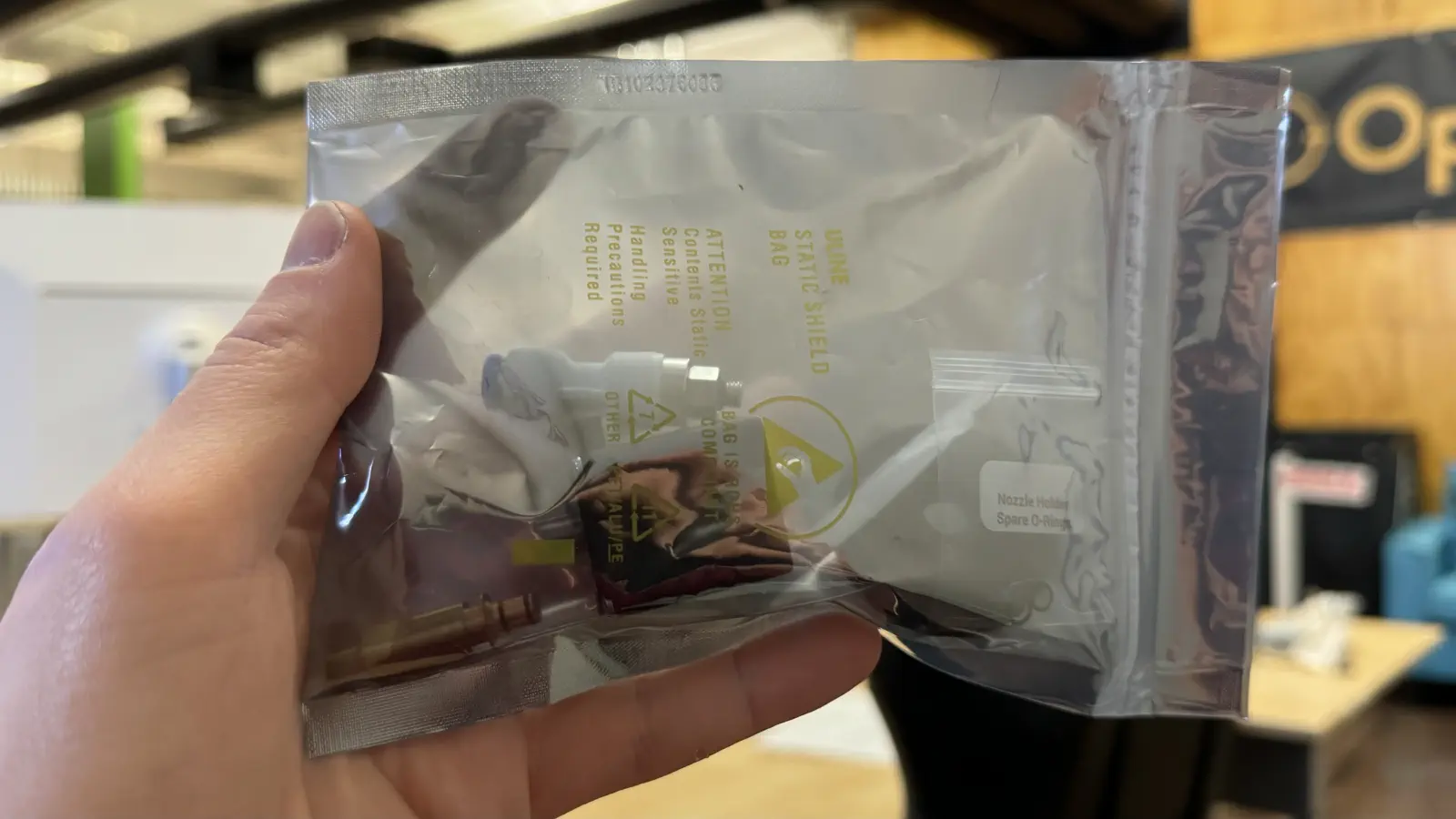

  • spare-o-ring-set
  • NEMA11-hollow-shaft-stepper
  • silicone-grease-packet
  • rotary-pneumatic-adapter
  • nozzle-holder
  • nozzle-camera-mask

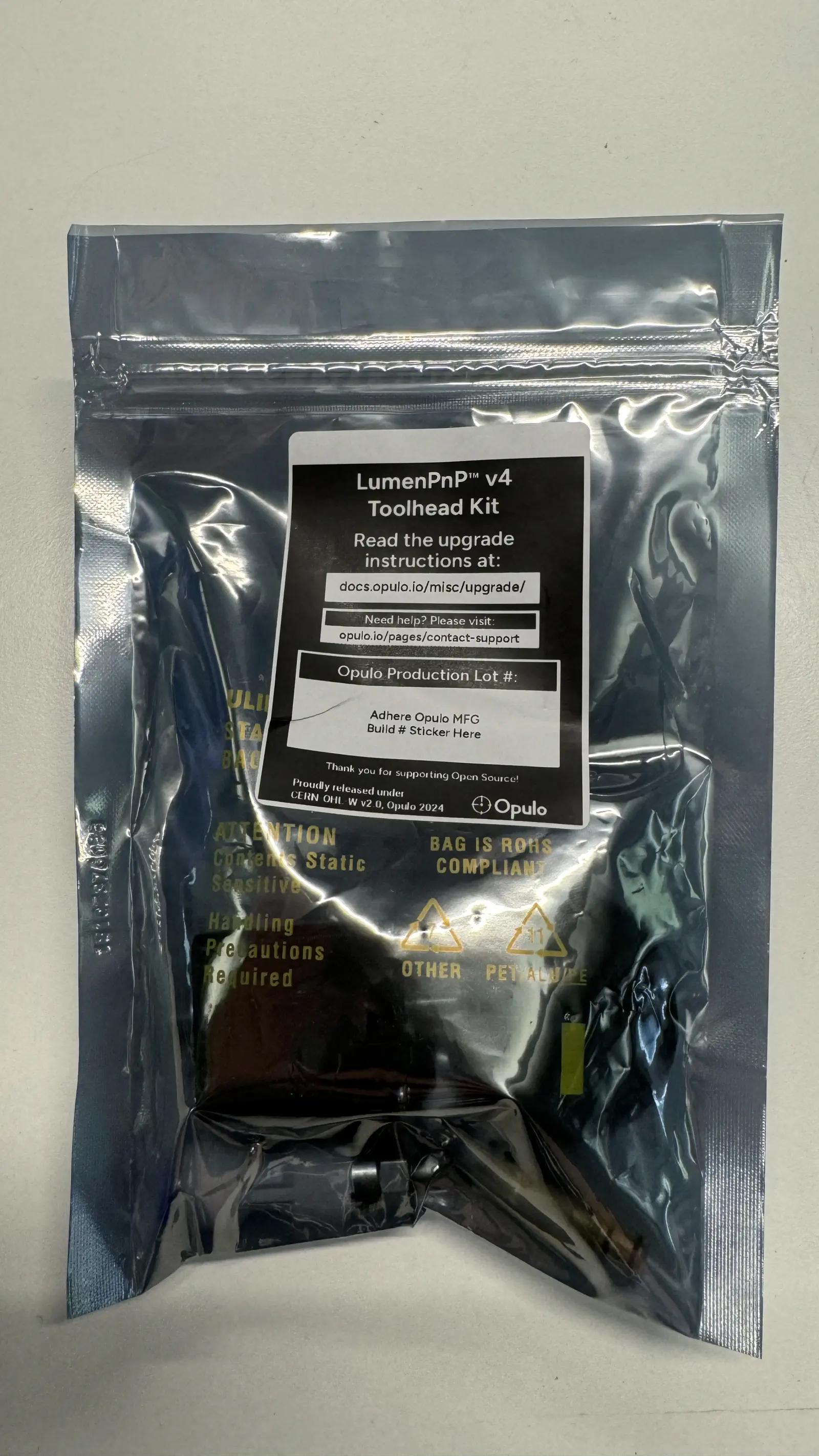

• Adhere a product-sticker to the 4x6-esd-bag

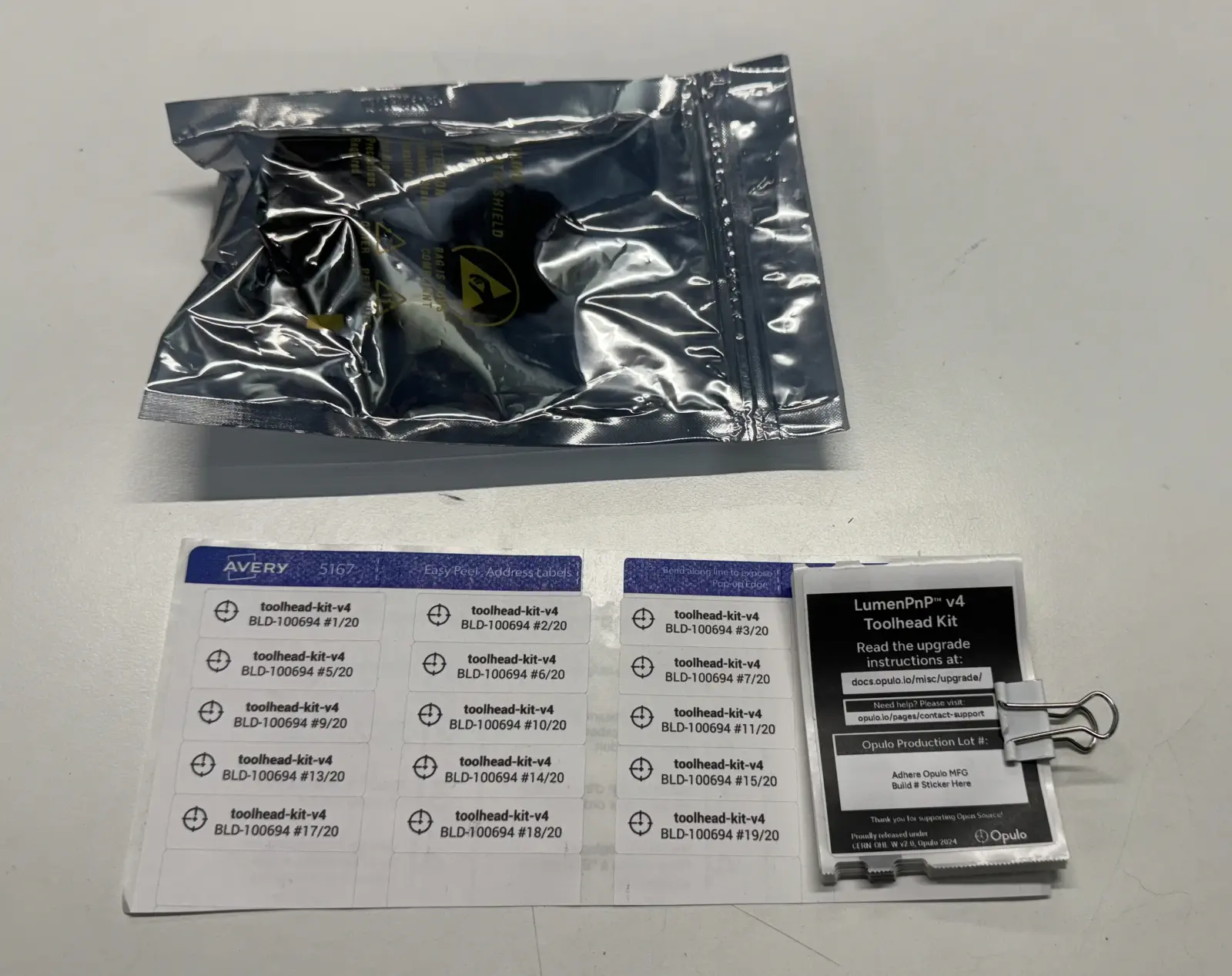

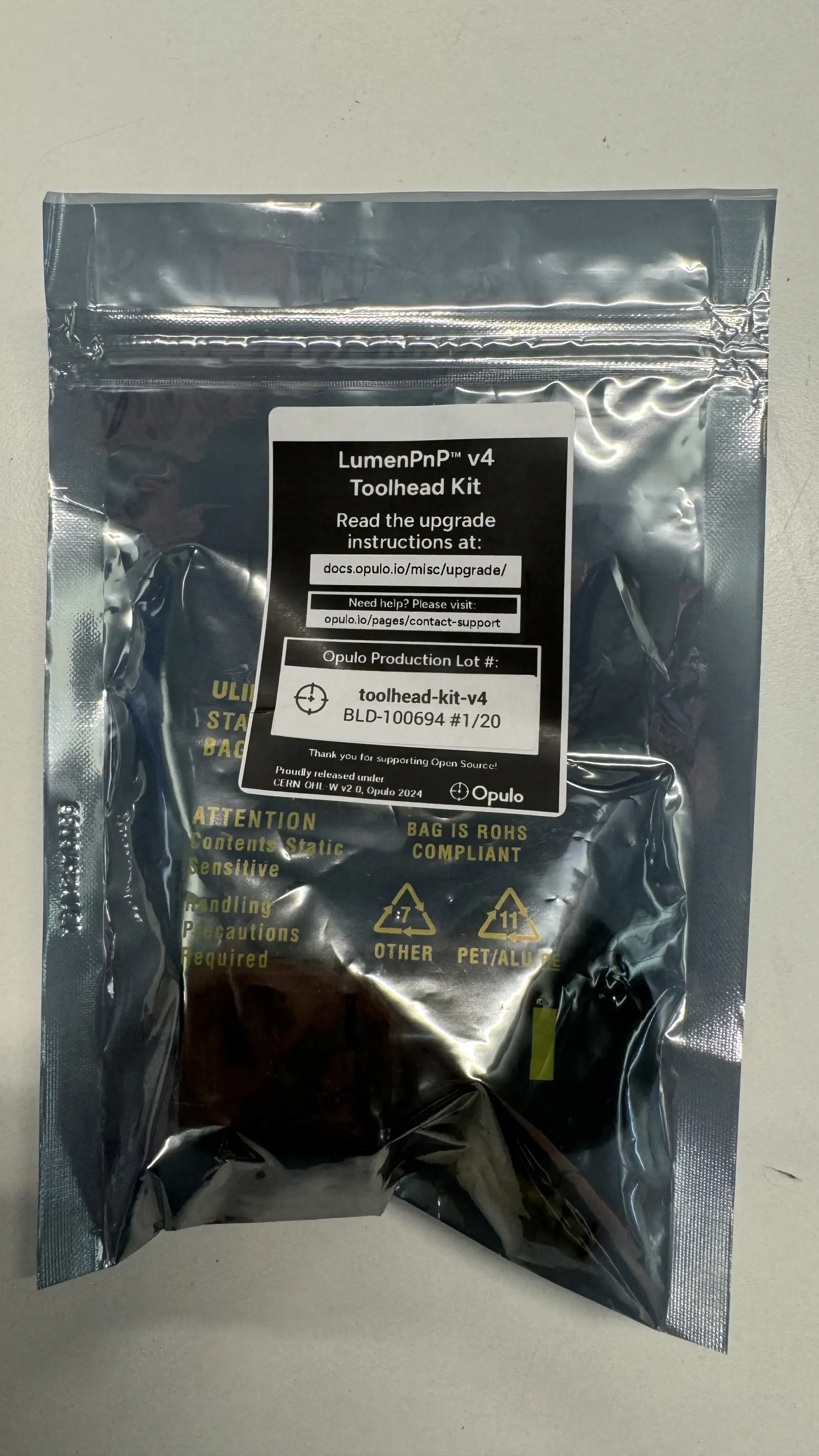

• Adhere a build-number-sticker to the completed LumenPnP v4 Toolhead Kit
