LumenPnP Strip Feeders

Prepare strip-feeder-hardware-set

• Prepare Bagging Station


• Add the following hardware to a 1.5" x 1.5" plastic bag

  • 2x M3-wing-nut

    Visually inspect the threads of wing-nut prior to bagging

  • 2x M3x10-ULPCS

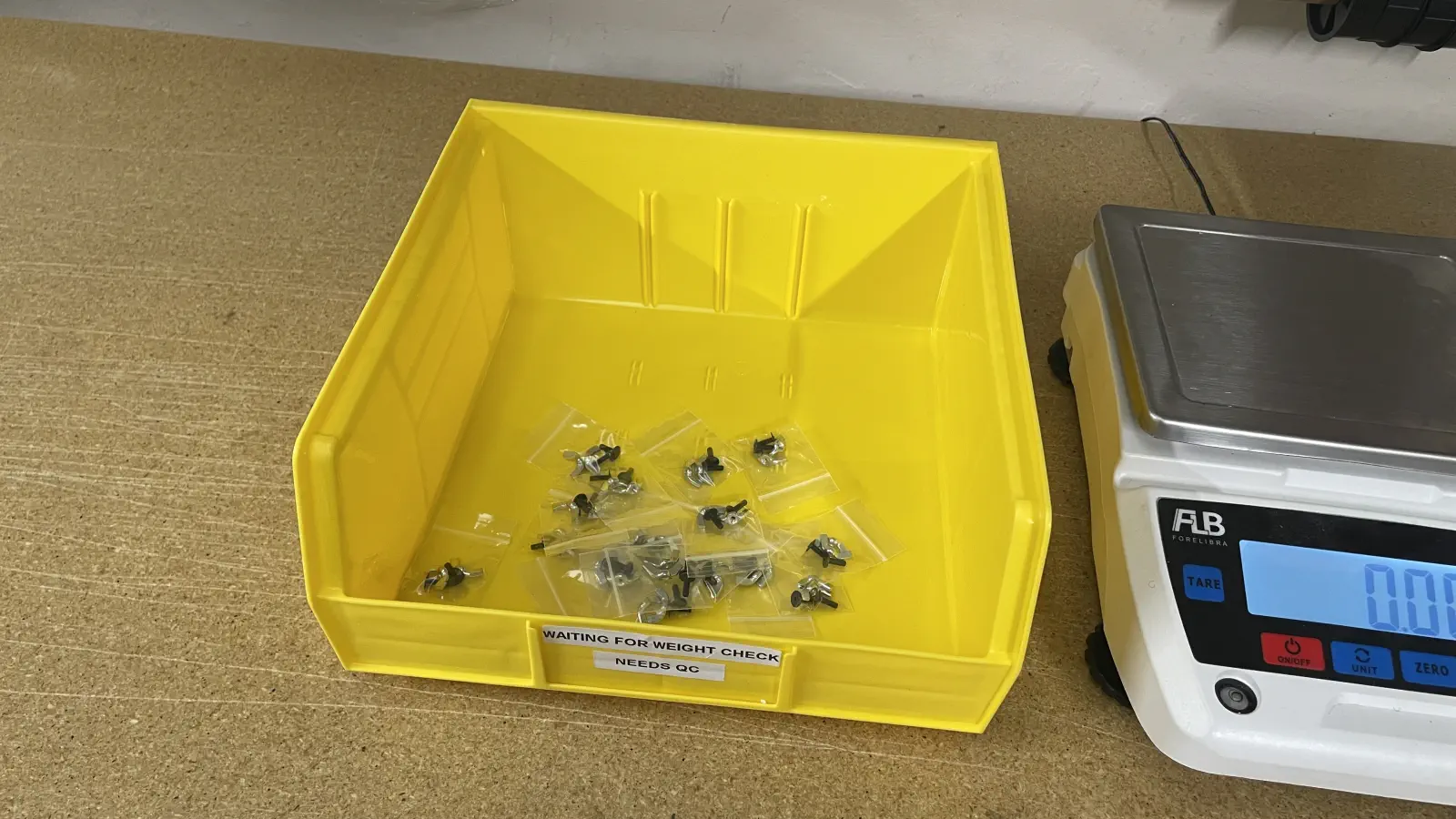

• Fill up the yellow needs QC bin with the hardware bags you make

• Weigh each hardware bag before transferring to the green QC Pass bin

  • Confirm each hardware bag weights 4.9g +/- 0.5g

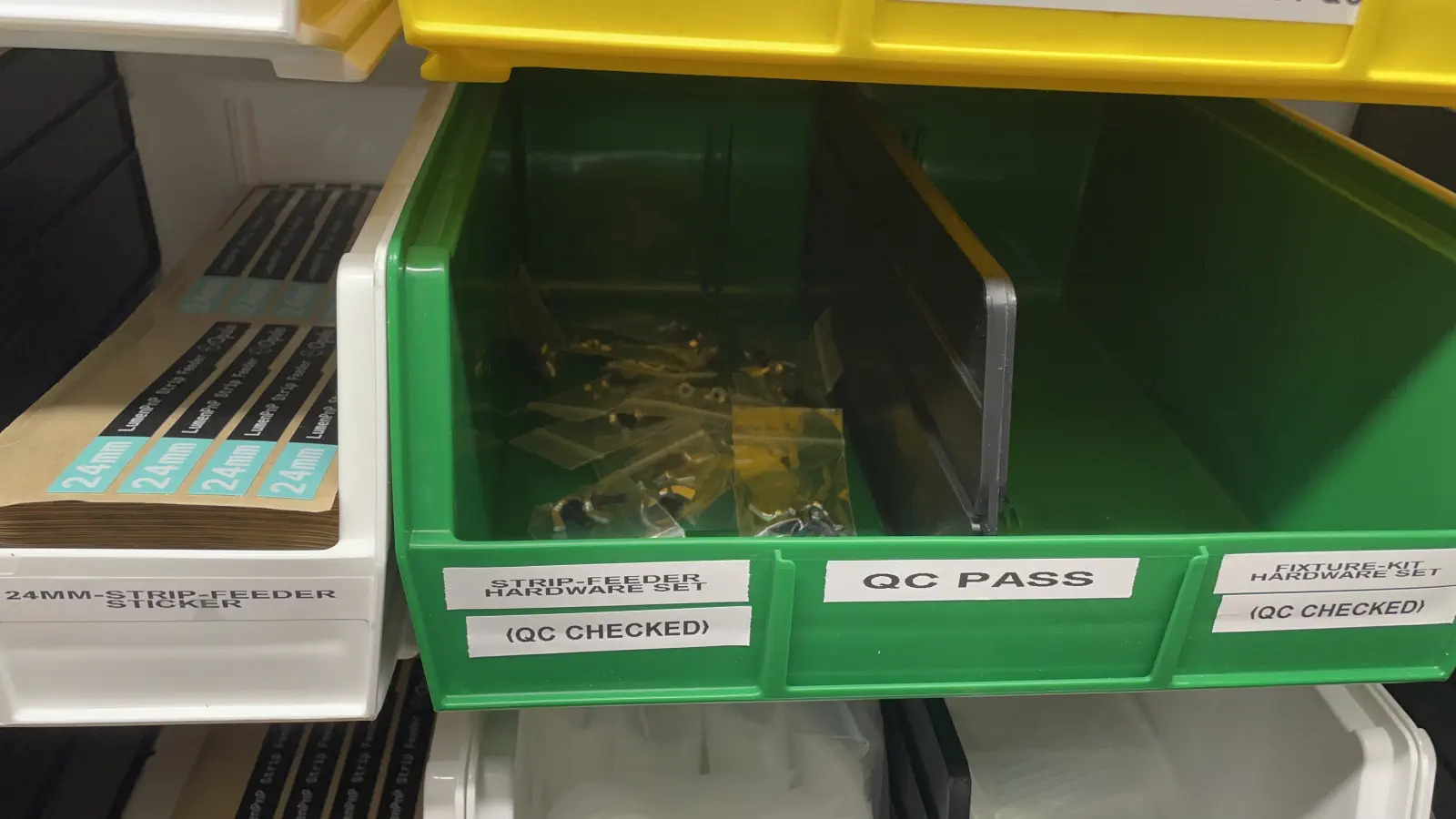

  - Transfer the QC-checked hardware bags to the strip-feeder-hardware-set bin found at the Strip Feeder workstation

Prepare ##mm-strip-feeder-kit

• This section covers the following versions of the strip-feeder-kit:
  • 8mm-strip-feeder-kit
  • 12mm-strip-feeder-kit
  • 16mm-strip-feeder-kit
  • 24mm-strip-feeder-kit
  • 32mm-strip-feeder-kit

Adhere sticker

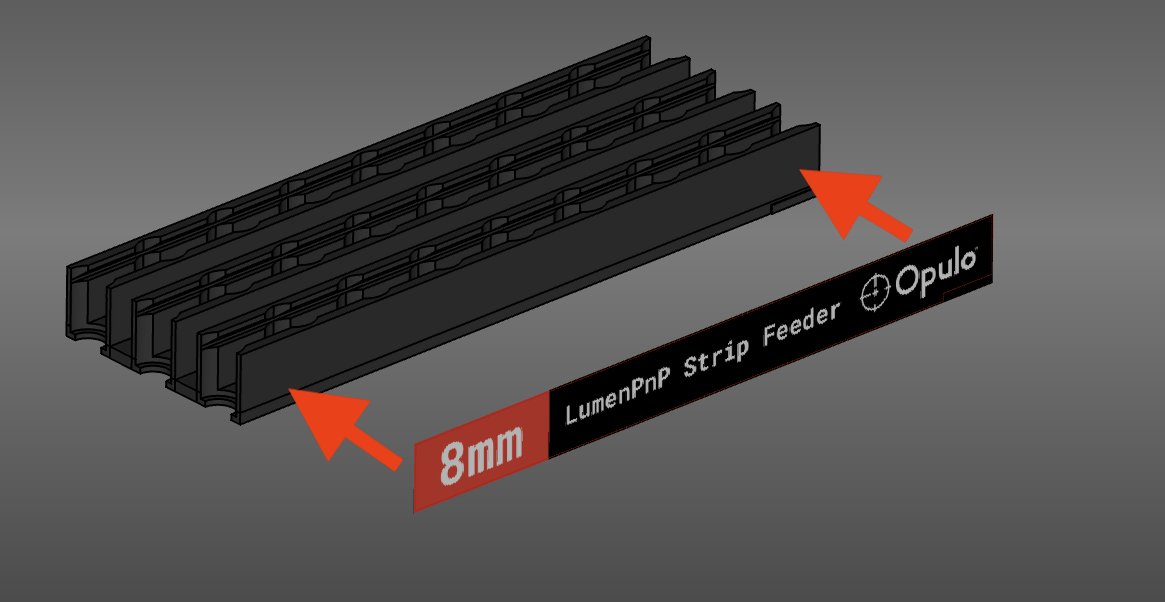

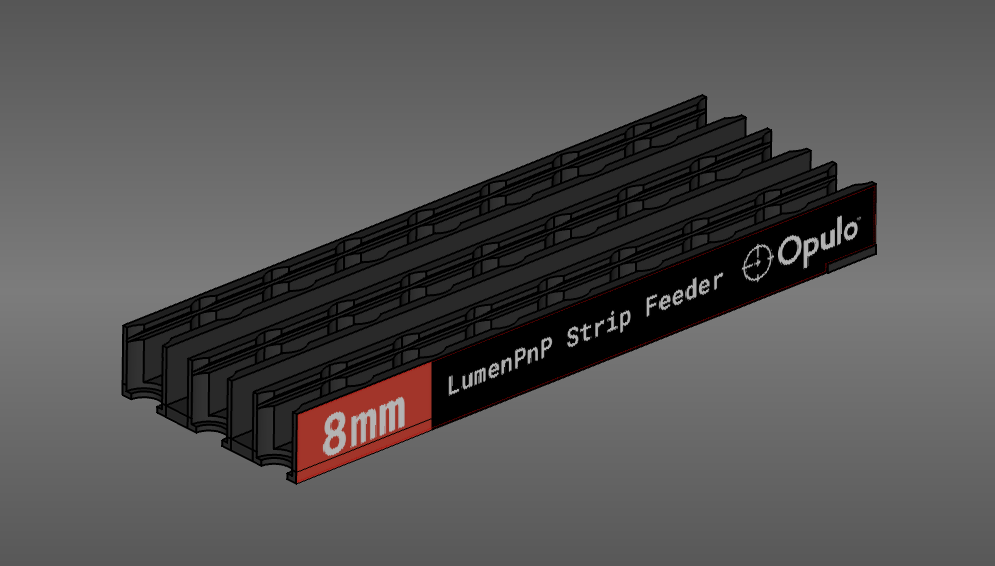

• Adhere the sticker onto the given strip feeder - be careful to properly center it

Check ##-strip-feeder flatness

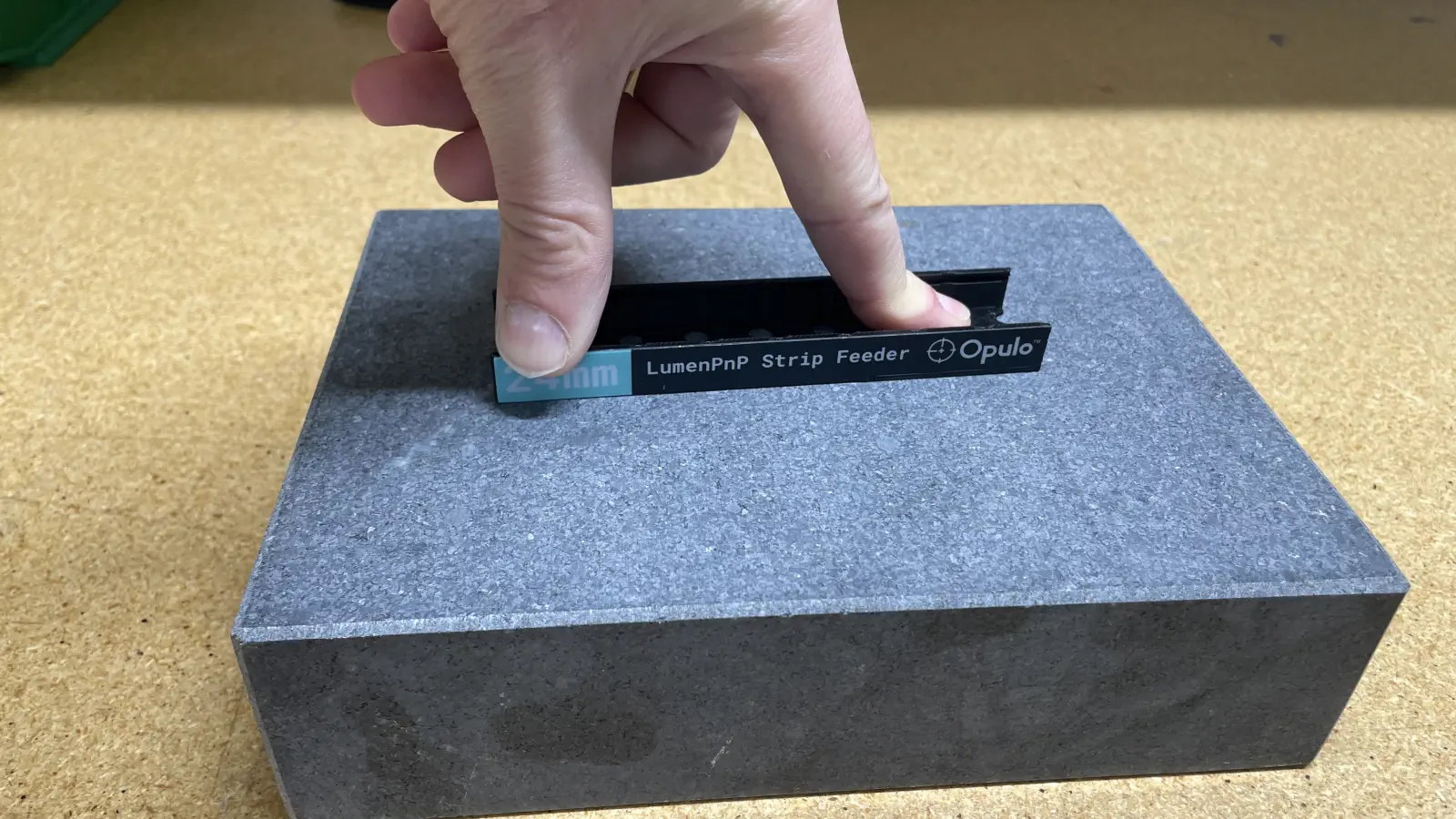

• Inspect the strip-feeder print for warping by placing it on a granite surface plate

  Continue onward if strip-feeder sits flush against plate

  Scrap the strip-feeder if it fails to sit flat against plate



Create ##mm-strip-feeder-kit

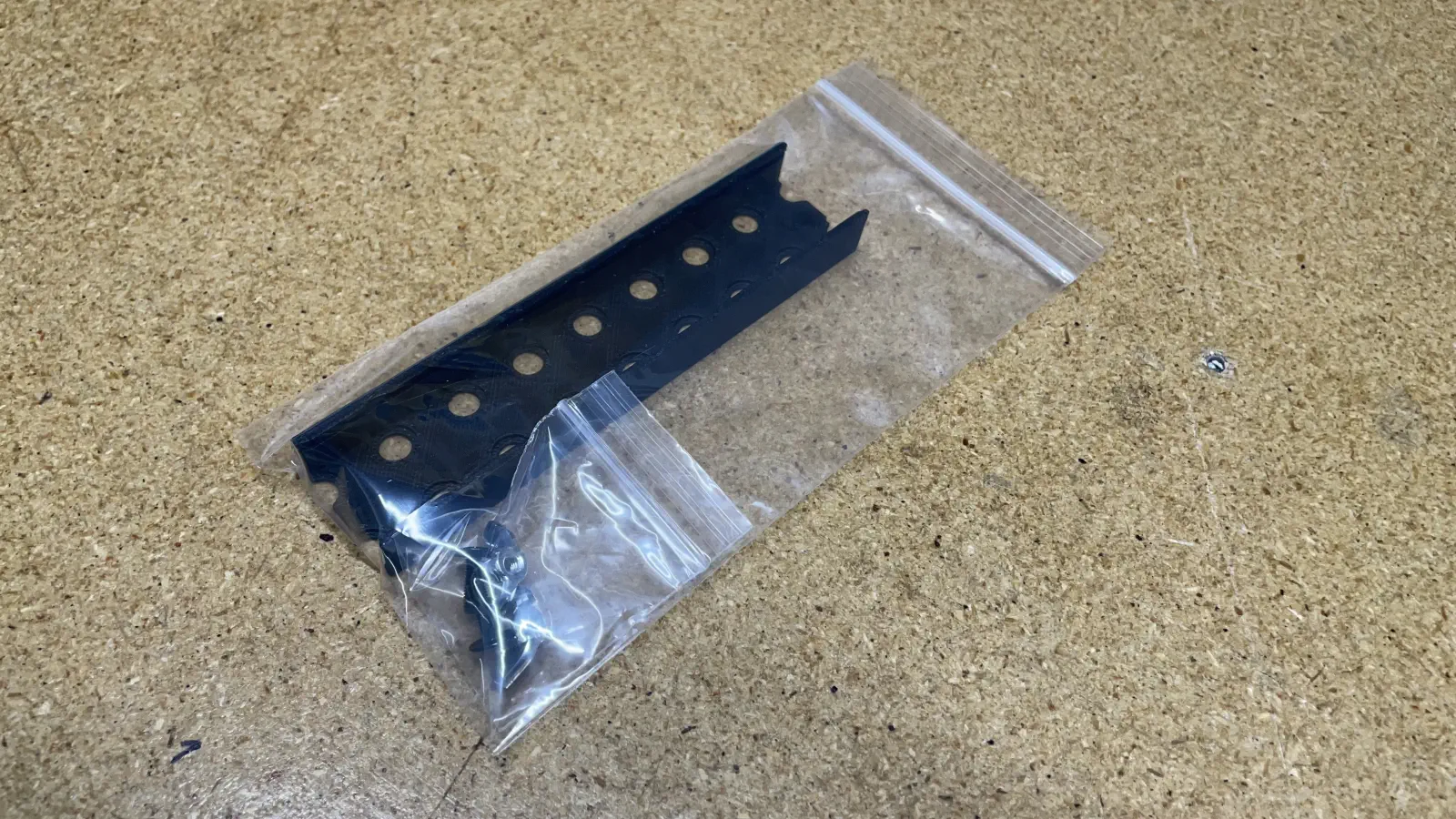

• Insert 1x ##mm-strip-feeder into 3x6-bag
• Insert 1x hardware-bag into 3x6-bag

• Seal bag closed



• Place completed ##mm-strip-feeder-kit into Yellow Needs QC Bin for peer review



• Adhere a build-number-sticker to the outside of ##mm-strip-feeder-kit when placing the item into a Green QC Pass Bin (or customer shipment if coming direct from a Yellow Bin when QC is done at time of packout)



Prepare adj-strip-feeder-kit

Check adj-strip-feeder flatness

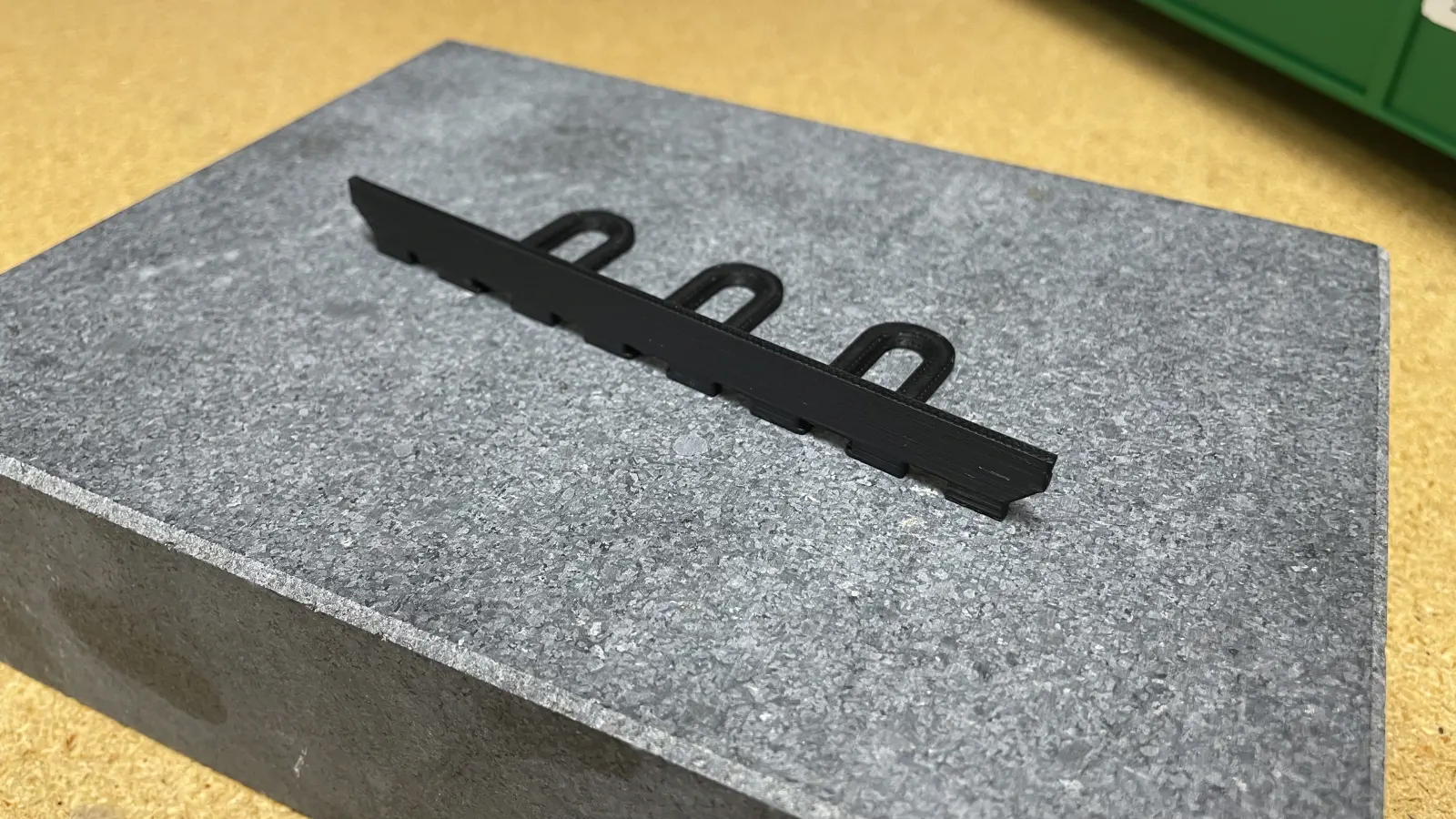

• Inspect both sides of the adj-strip-feeder print for warping by placing it on a granite surface plate



  Continue onward if the strip-feeder sits flush against plate

  Scrap the strip feeder print if it fails to sit flat against the plate

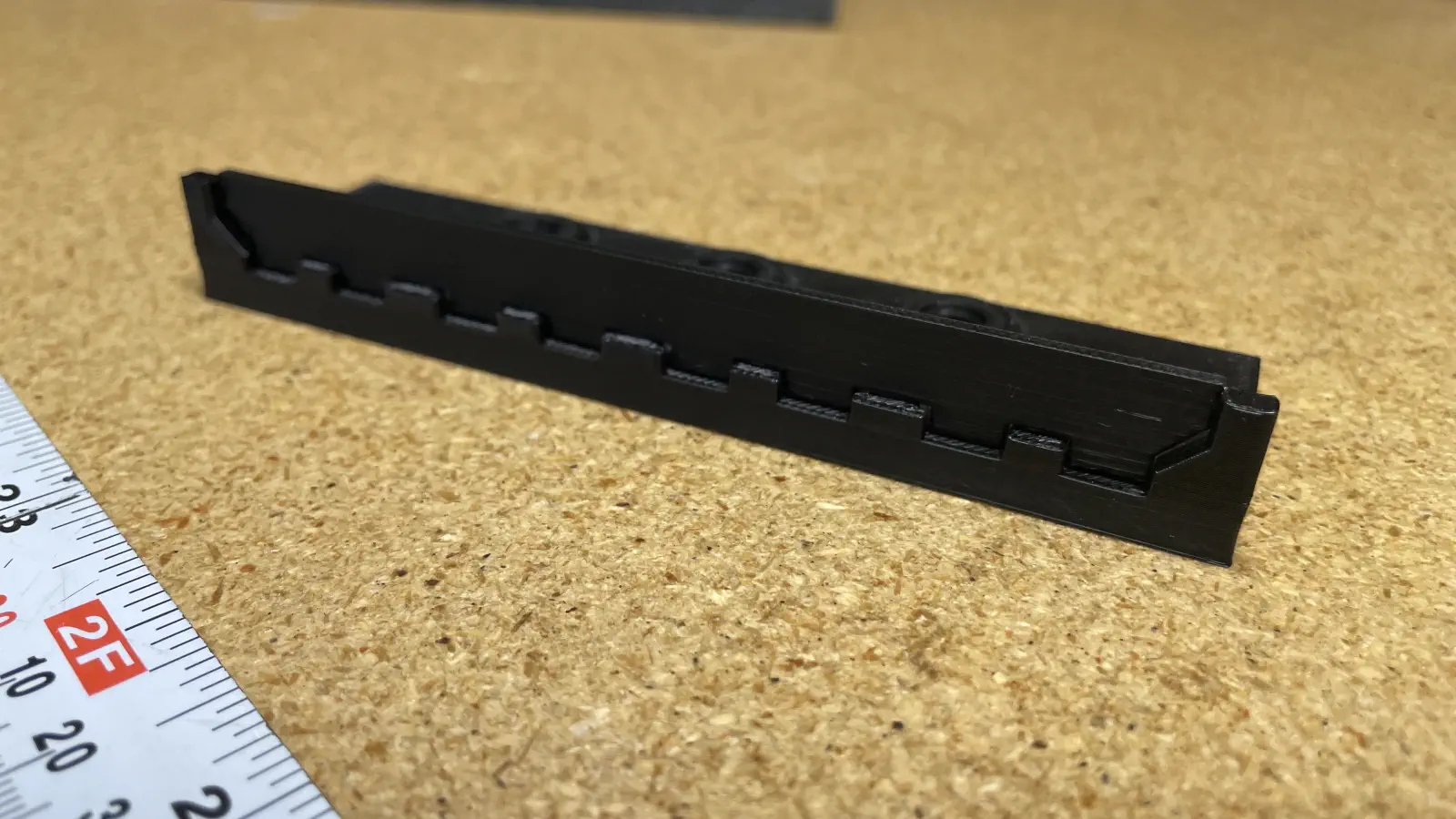

Adhere sticker to adj-strip-feeder-left

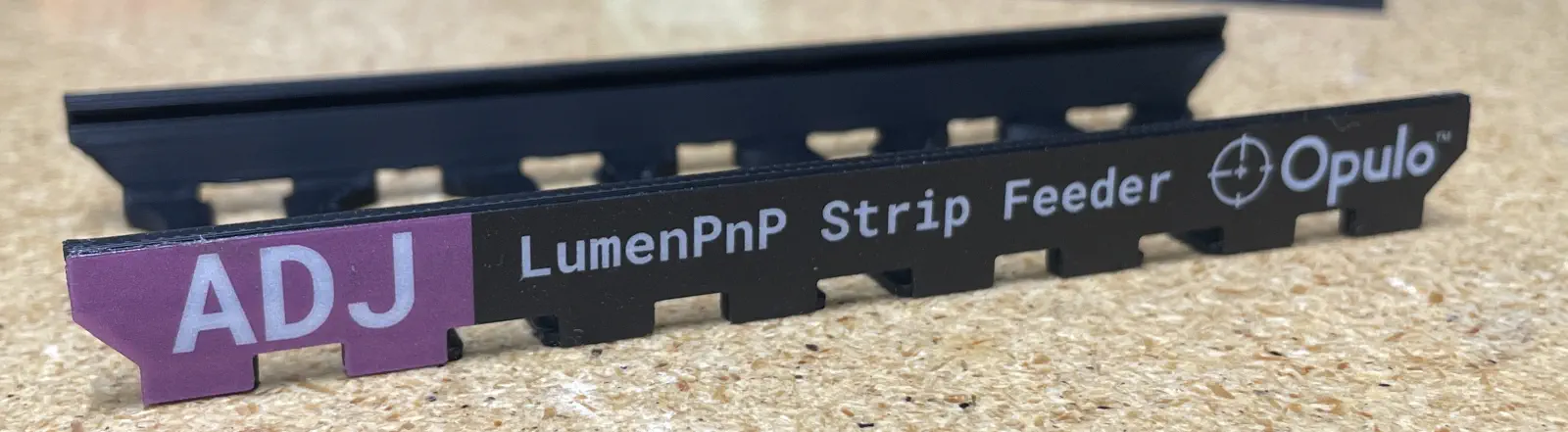

• Use adj-strip-feeder-sticker-jig to install sticker onto adj-strip-feeder-left



Create adj-strip-feeder-kit

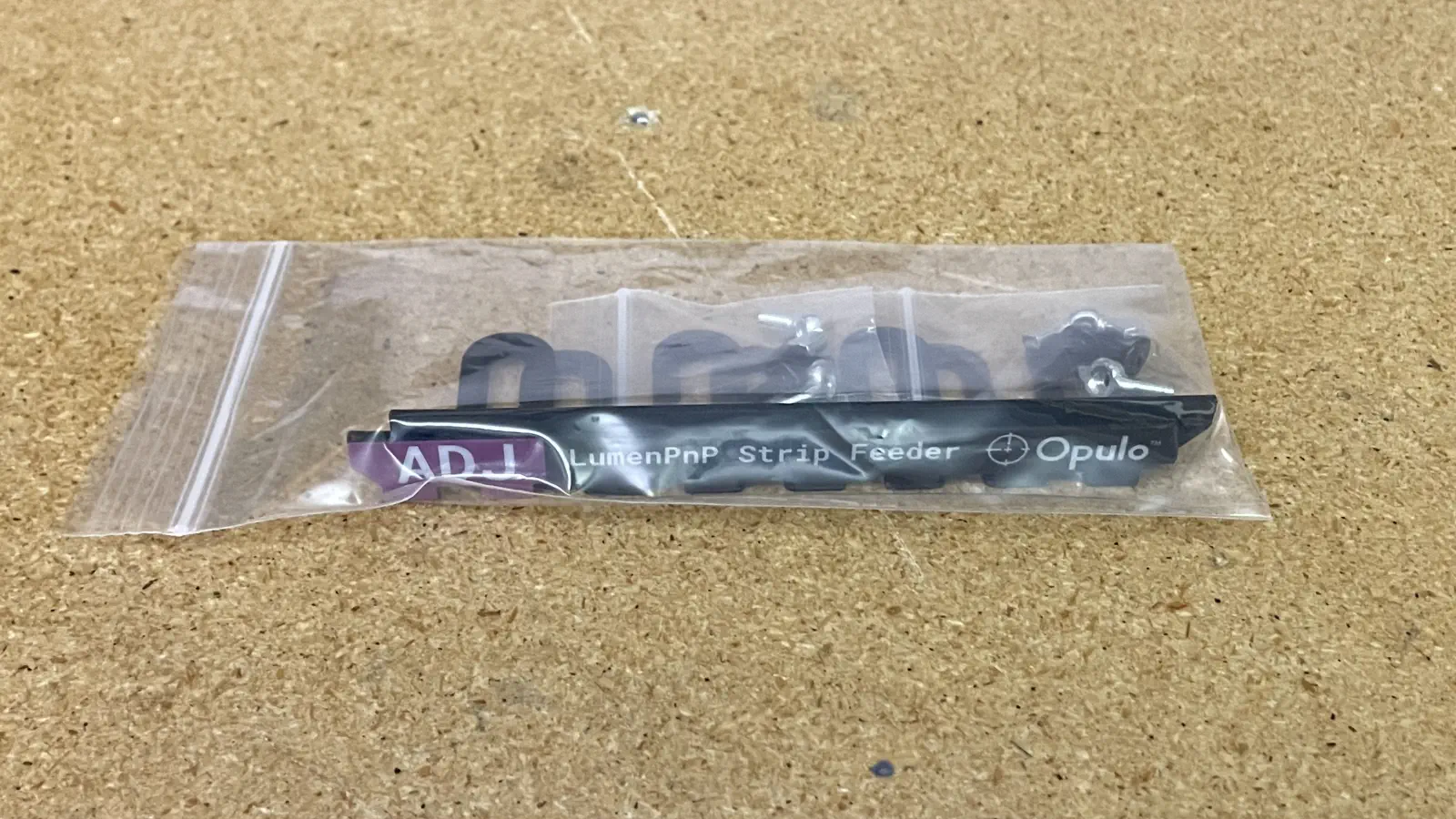

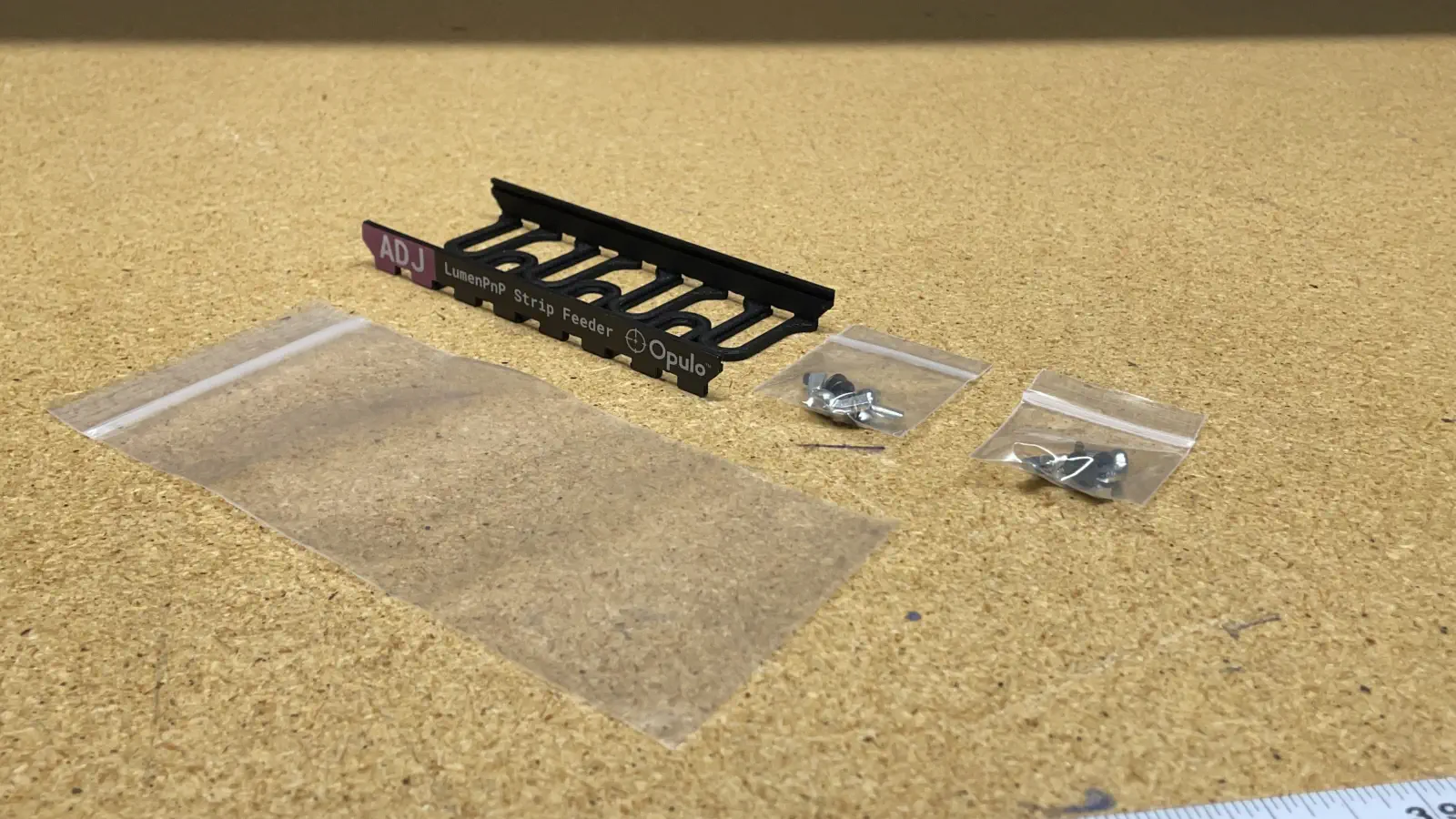

• Insert 1x adj-strip-feeder-left w/sticker into 3x6-bag
• Insert 1x adj-strip-feeder-right into 3x6-bag

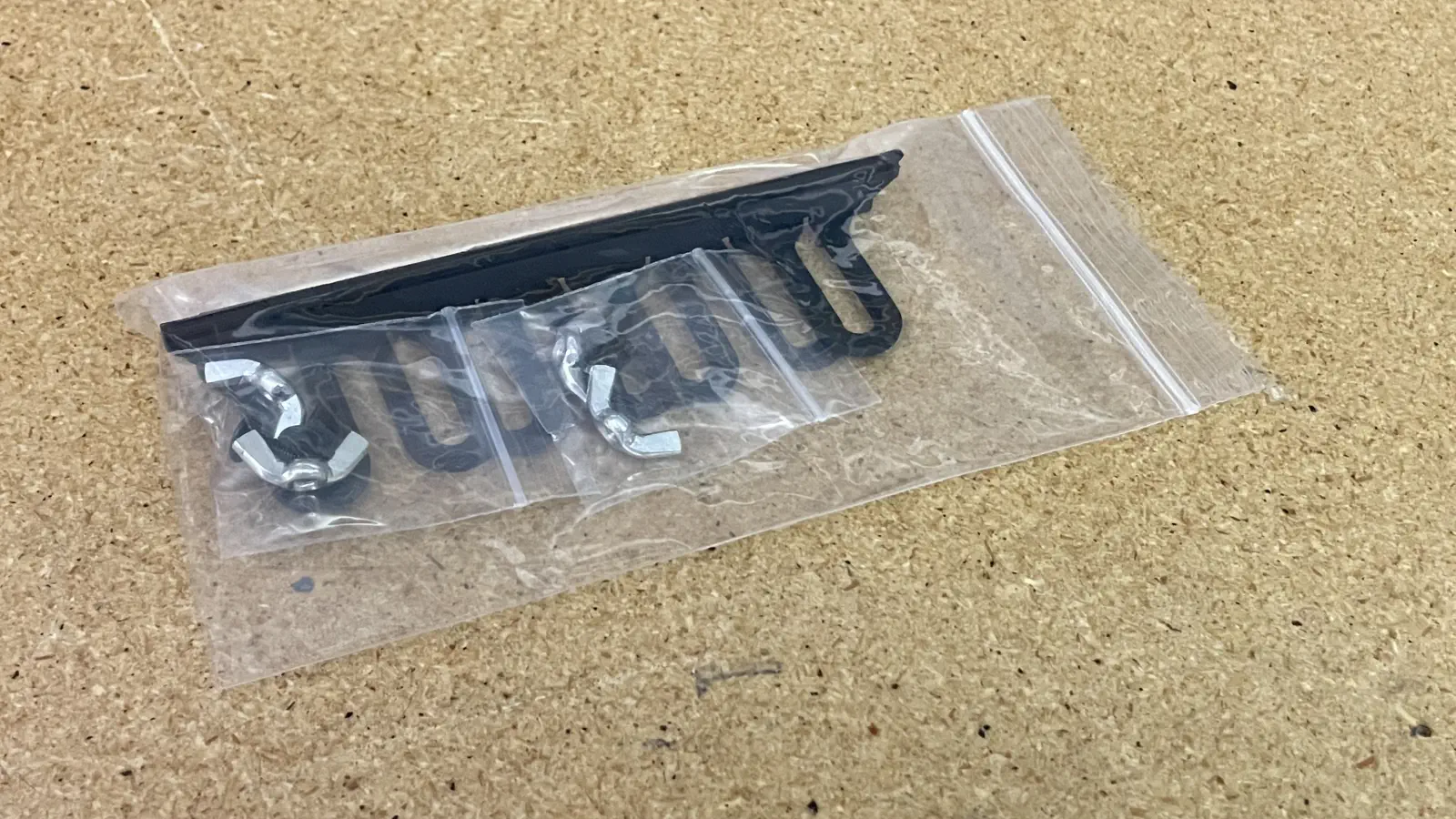

• Insert 2x hardware-bag into 3x6-bag

• Seal bag closed

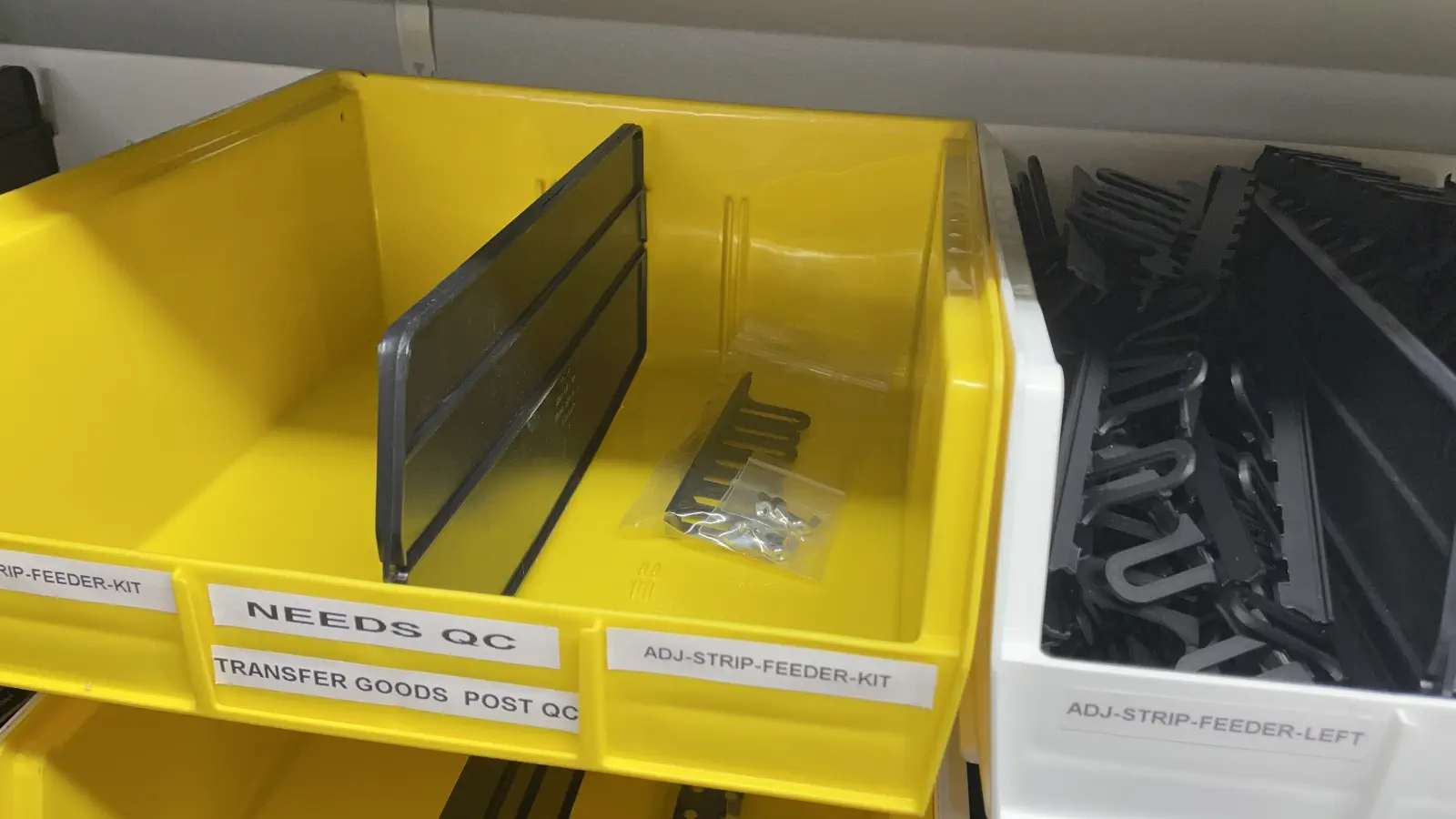

• Place completed adj-strip-feeder-kit into Yellow Needs QC Bin for peer review

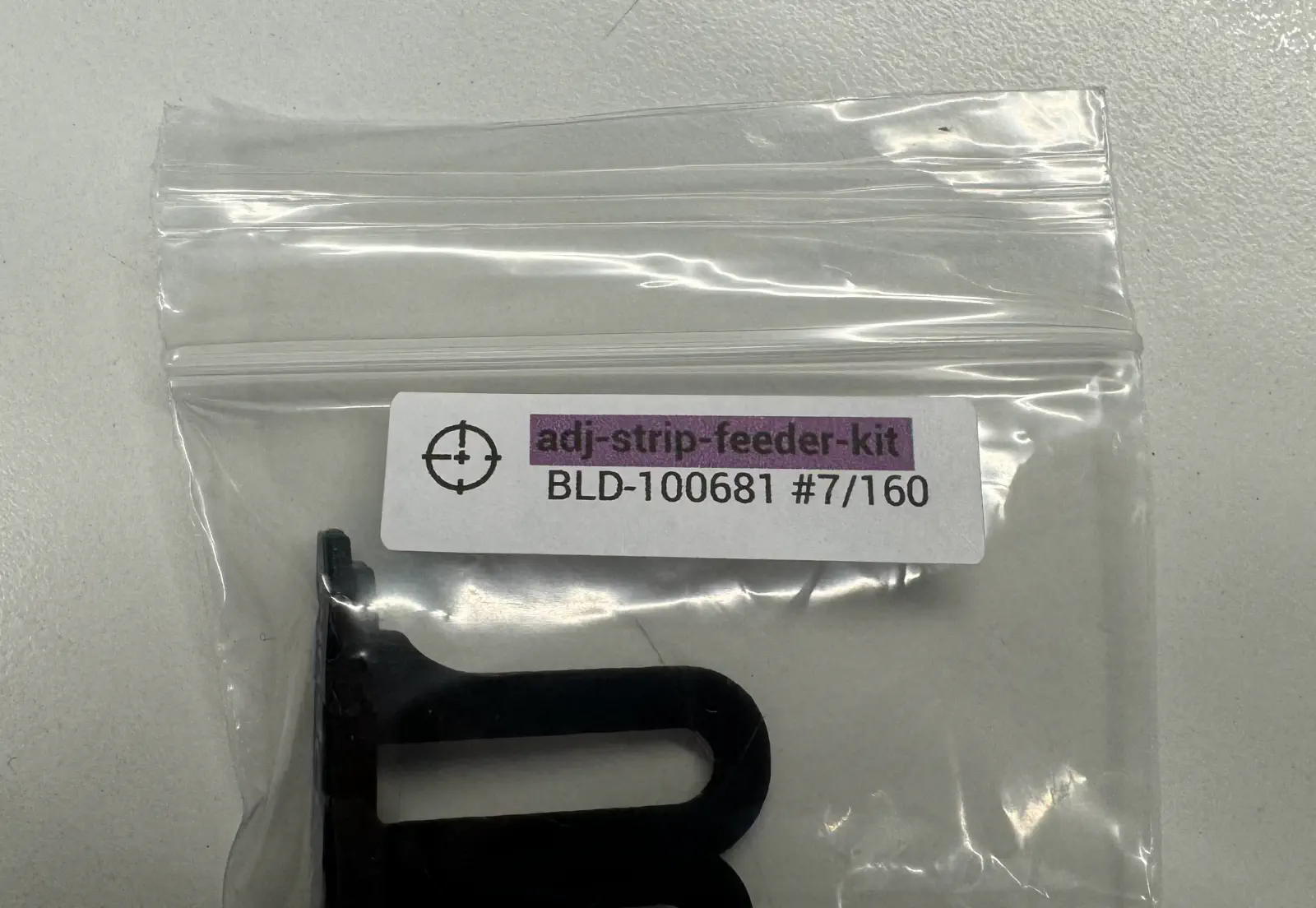

• Adhere a build-number-sticker to the outside of adj-strip-feeder-kit when placing the item into a Green QC Pass Bin (or customer shipment if coming direct from a Yellow Bin when QC is done at time of packout)
