8mm Feeder Assembly Instructions

Introduction

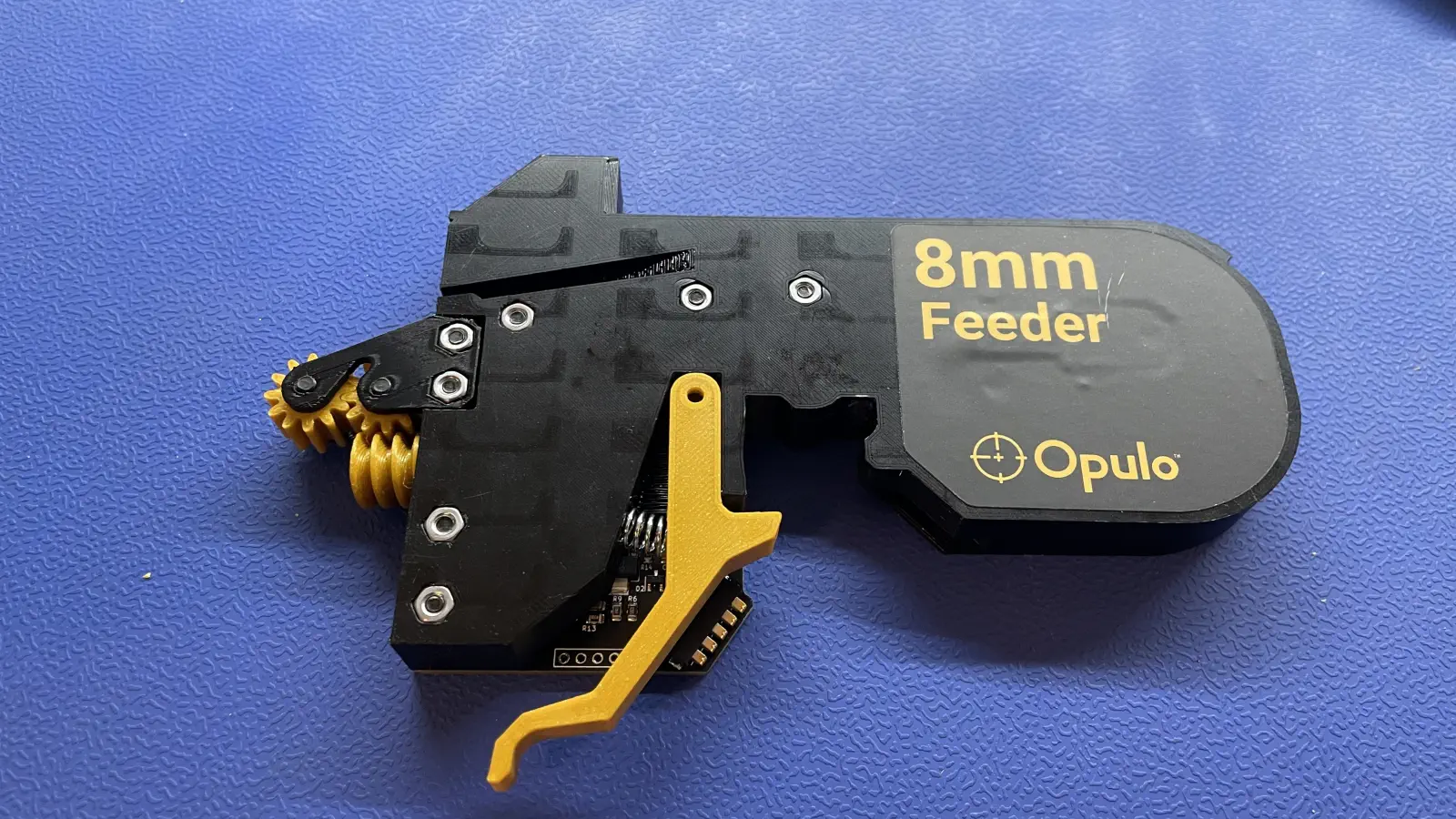

This series of work instructions will guide the reader on how to properly assemble and test the feeder-8mm accessory for the LumenPnP. When finished, the feeder-8mm shall match the image below:

Tools (Excluding SMT)

  • 1.3mm Hex Driver
  • 2mm Hex Driver
  • 3mm Hex Driver
  • Torque Screwdriver
  • X-Acto Knife
  • Heat Gun

Jigs

  • PCB Test Jig
  • AMP Jig
  • Indexing Wheel Shim
  • Shaft-alignment-jig
  • Feeder-cradle jig
  • Feeder-sticker-application-jig
  • Arbor-press-jig
