LumenPnP Z-Axis Linear rail Set

Purpose

The purpose of this work instructions is to document the assembly process for the LumenPnP Z-Axis Linear rail Set.

Instructions

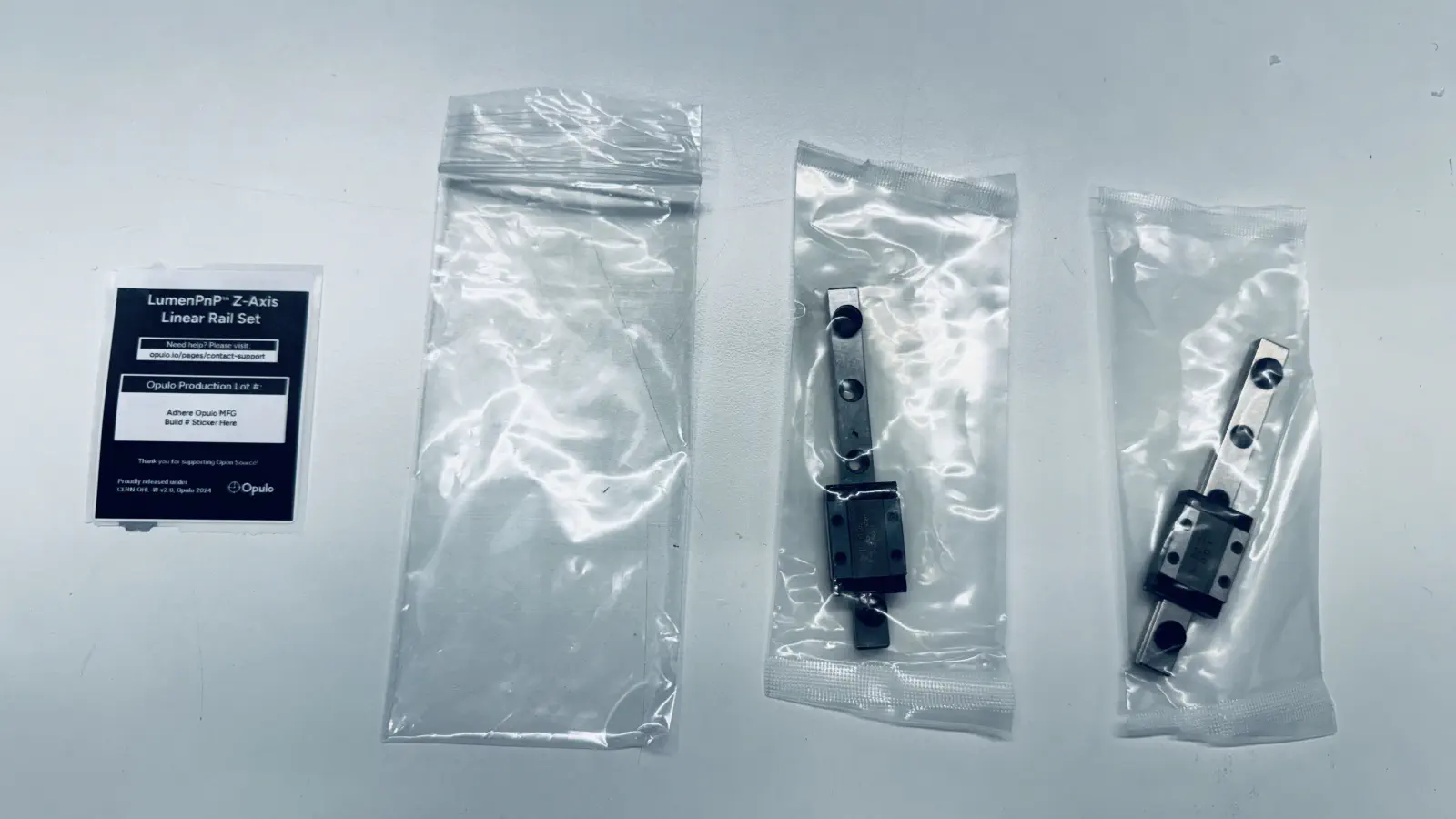

• Collect the following materials from inventory:

  • 2x LML9B-linear-rail-100mm
  • 1x 3x6-bag
  • 1x product-label
  • 1x build-number-sticker (not shown)

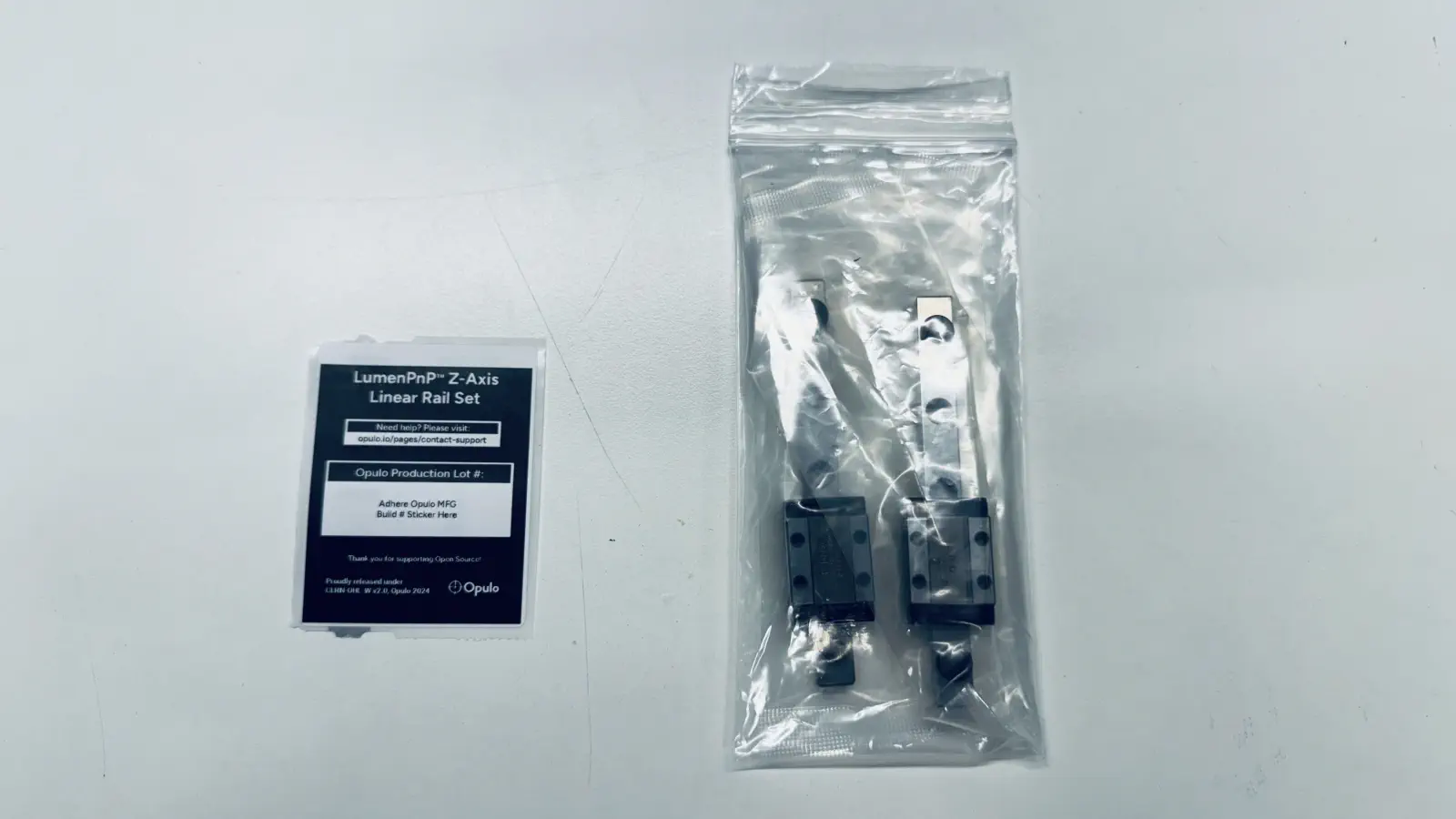

• Place the 2x LML9B-linear-rail-100mm into the 3x6-bag before sealing it shut



• Adhere the product-label to the outside of the 3x6-bag

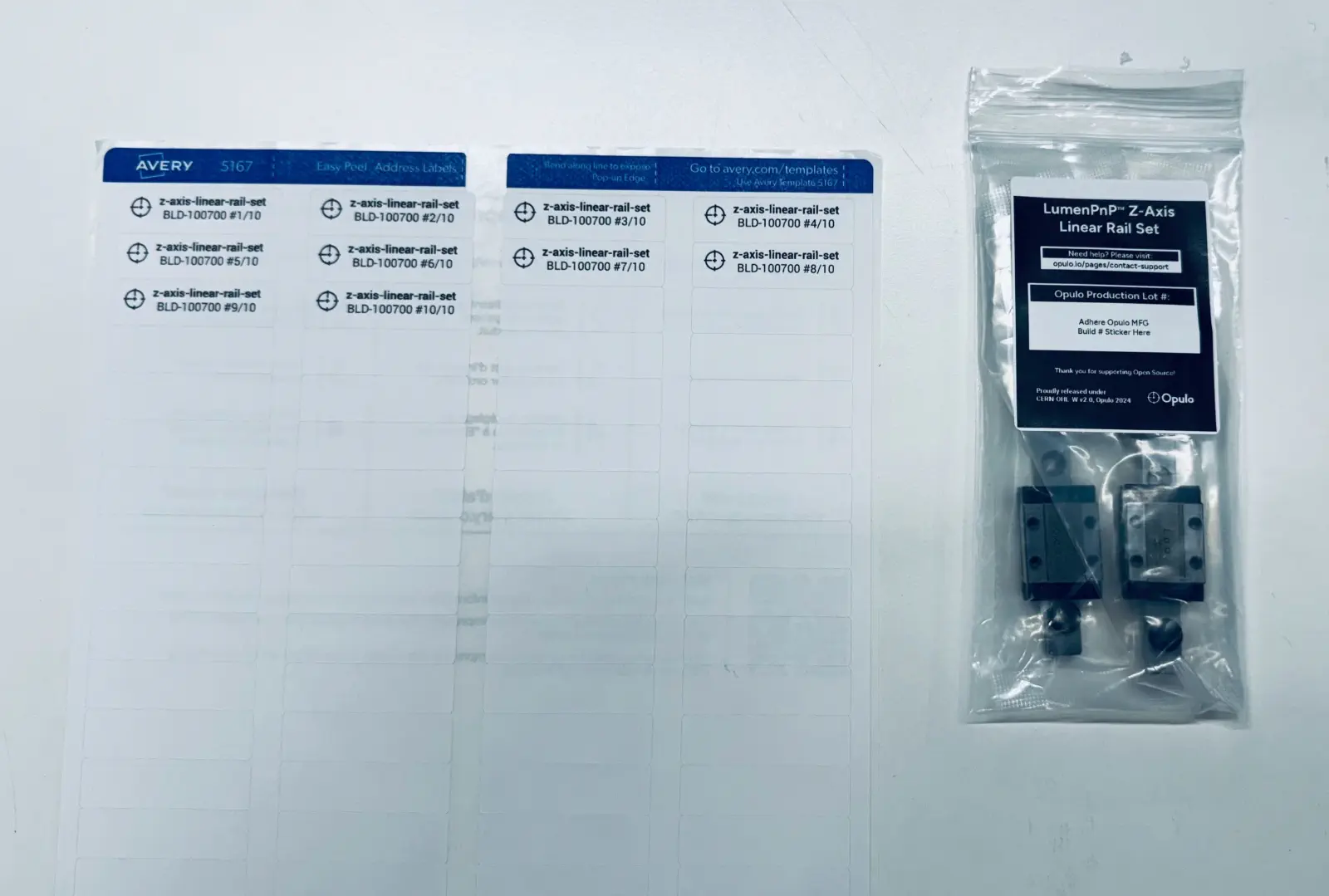

• Adhere a build-number-sticker to the product-label as shown in the image below

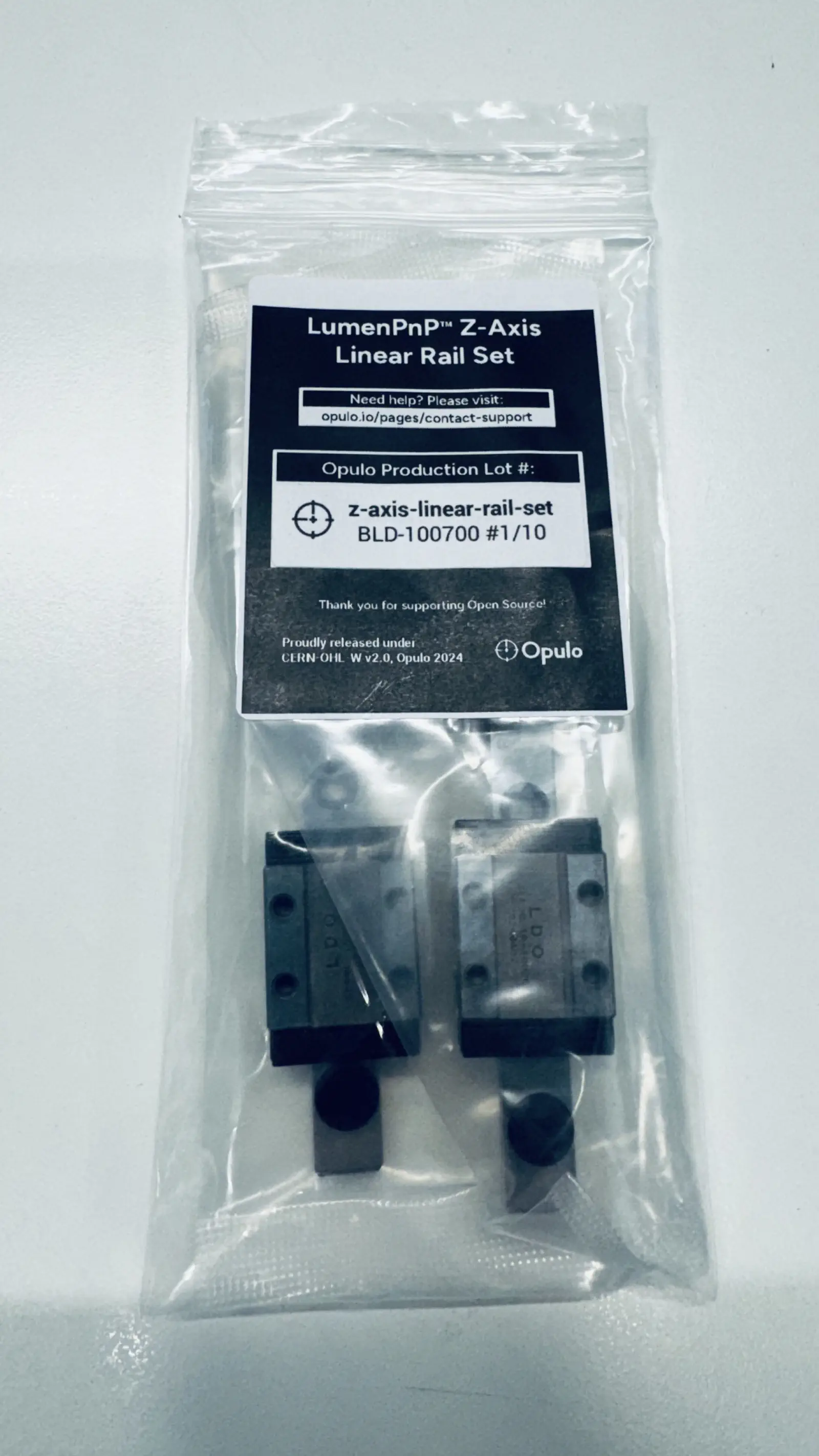

The completed LumenPnP Z-Axis Linear rail Set is now ready for packout!
