LumenPnP Control Box DIY Version

Purpose

The purpose of this work instructions is to document the assembly process for the LumenPnP Control Box DIY Version

Instructions

  • Build a Control Box until the Gundam Testing step on this page

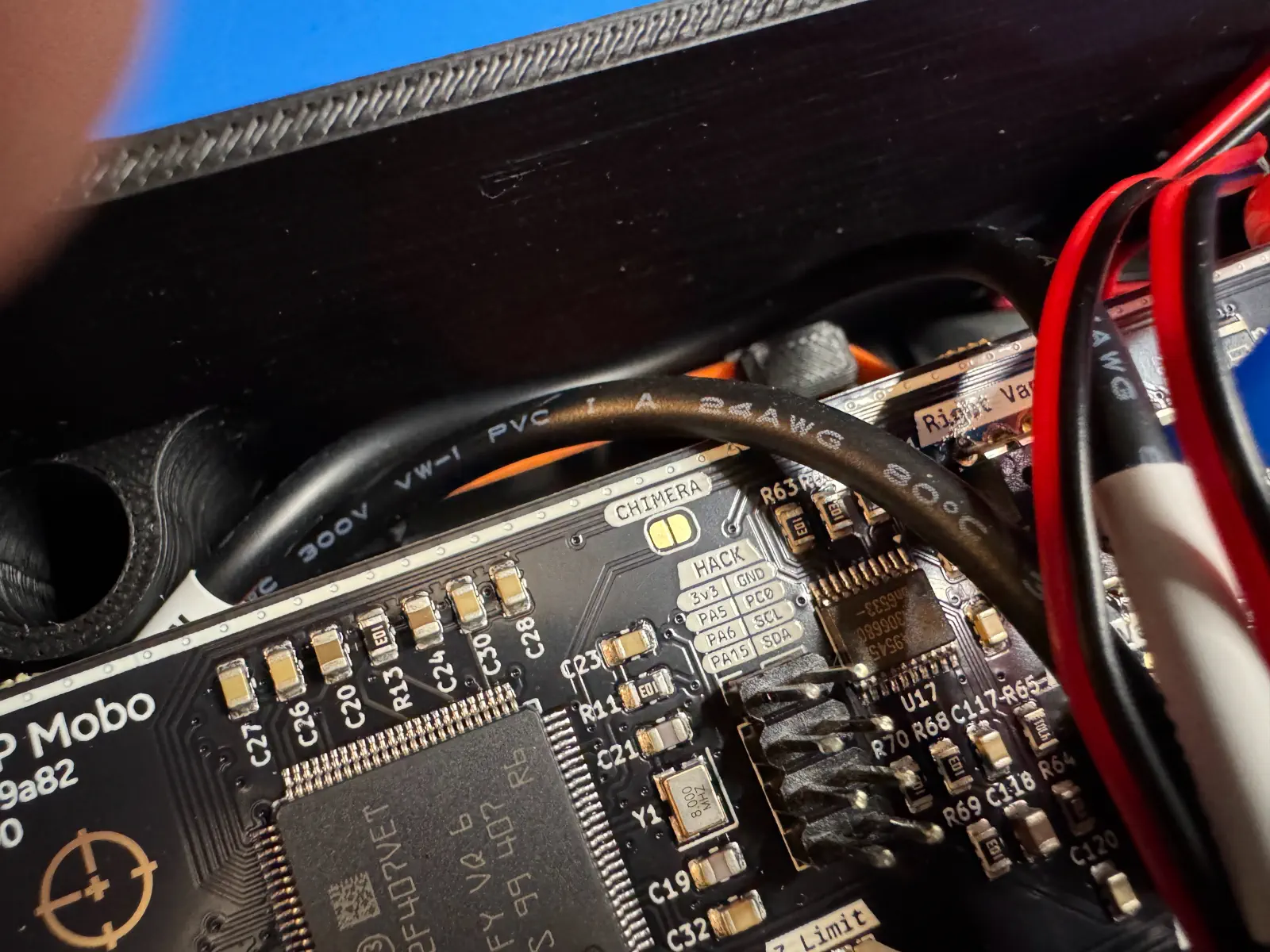

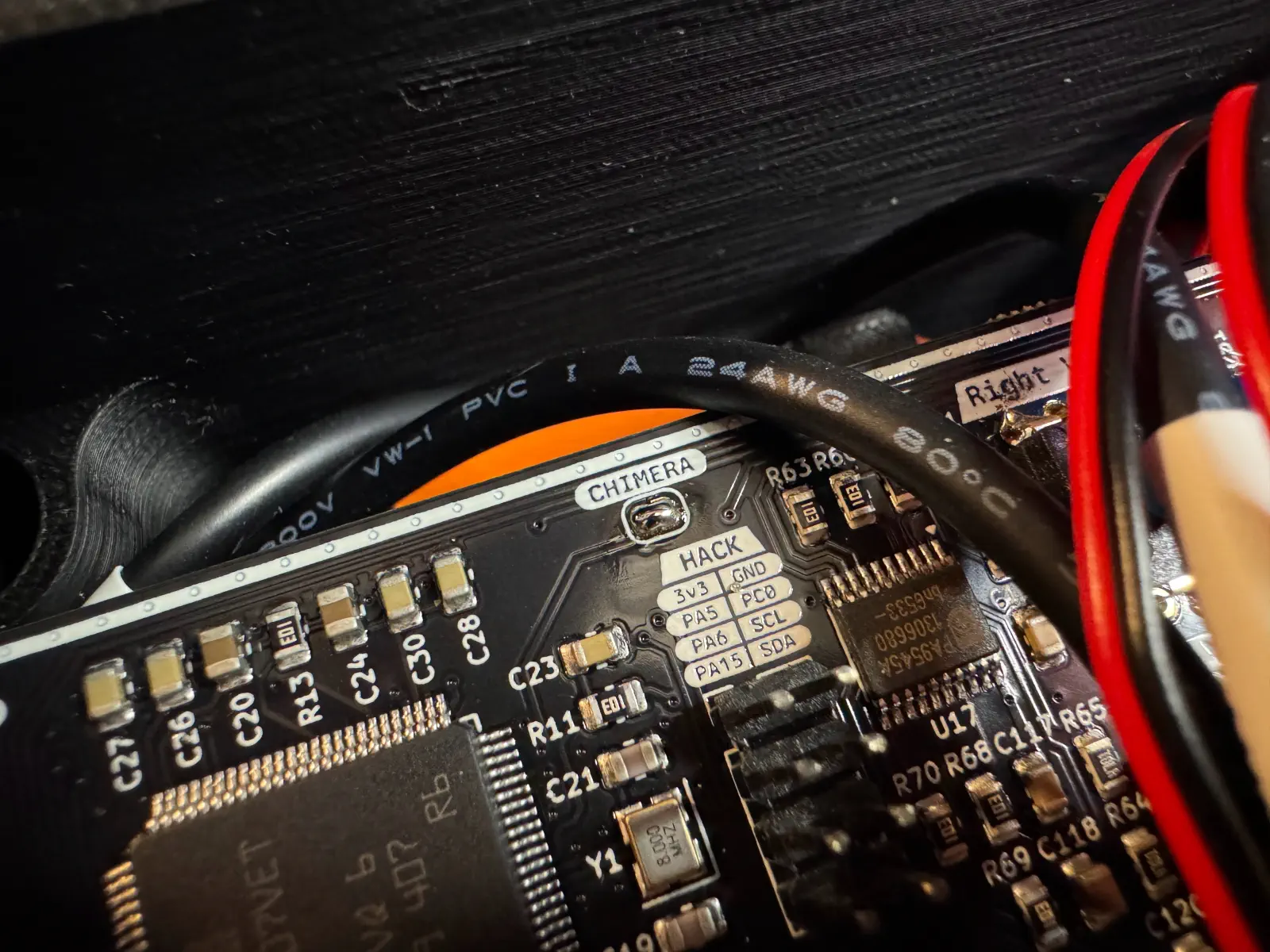

  • Identify the CHIMERA jumper on the motherboard and solder the two pads together as shown

  • Perform the Gundam testing as normal

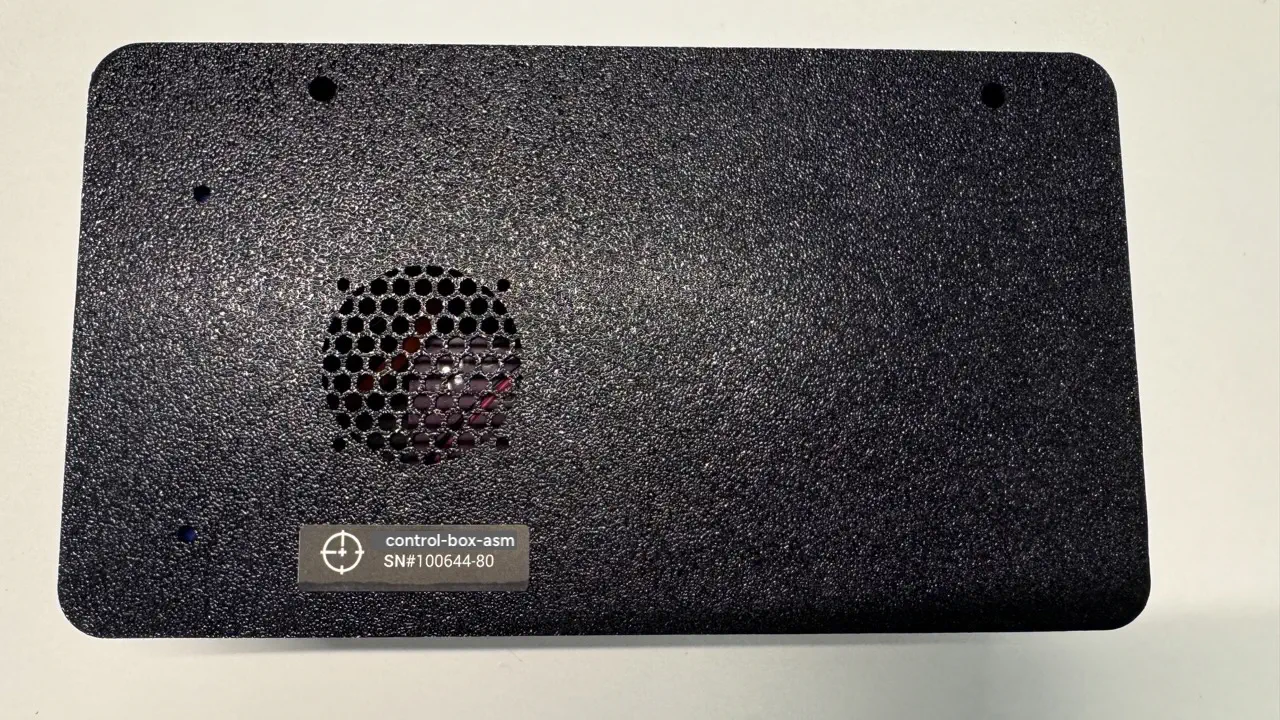

  • Put the control-box-asm build number sticker in the recess in the back of the control box

    alt text

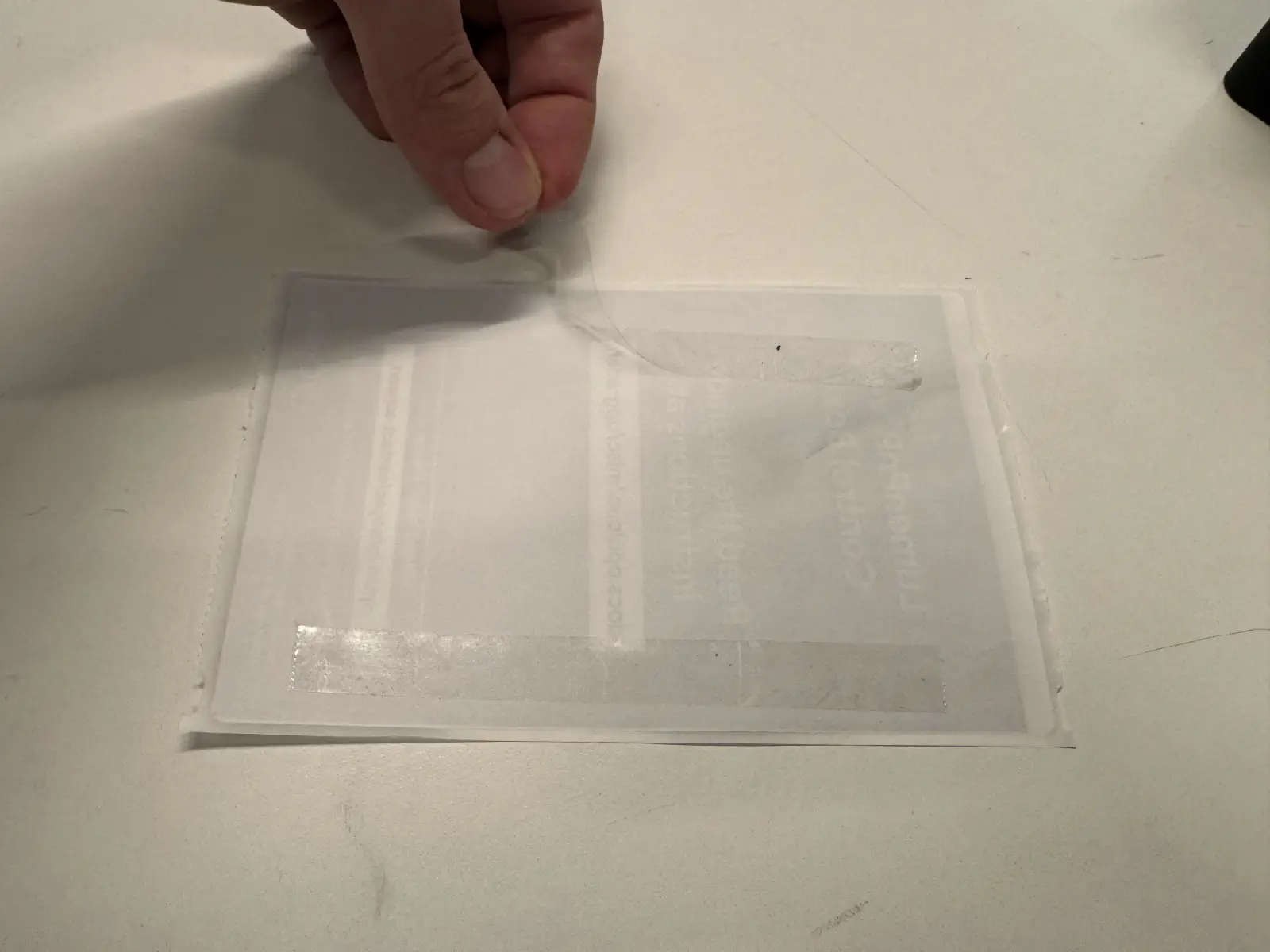

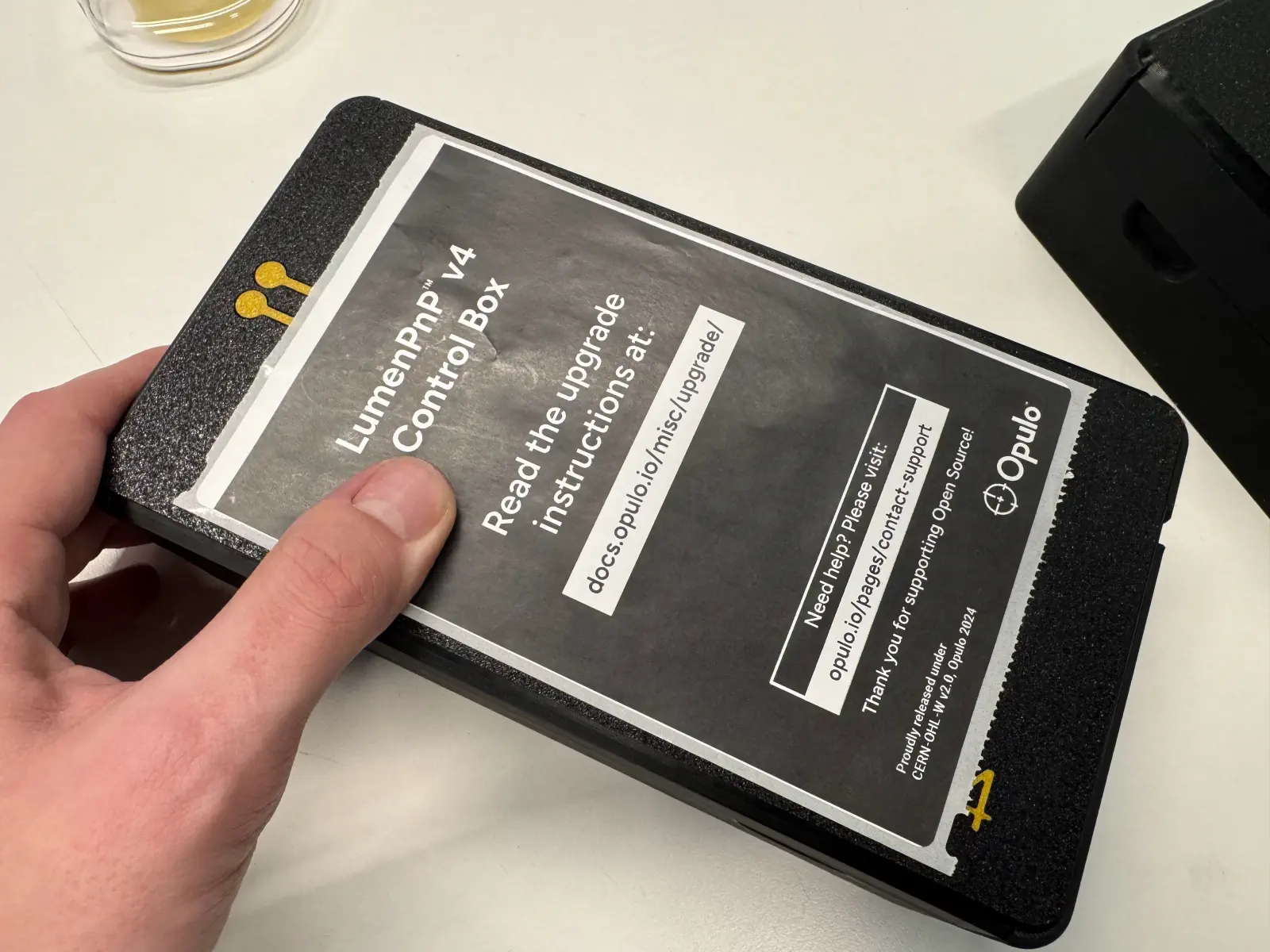

  • Stick the label onto the top with a couple pieces of double sided tape

The completed LumenPnP Control Box DIY Version is now ready for packout!
