LumenPnP Datum Board Kit

Purpose

The purpose of this work instructions is to document the assembly process for the LumenPnP Datum Board Kit.

Instructions

  • Collect the following items from inventory:

    • 1x datum-board
    • 1x 3x4-bag
    • 1x opulo-sticker
    • 1x product-label
    • 1x build-number-sticker

    alt text

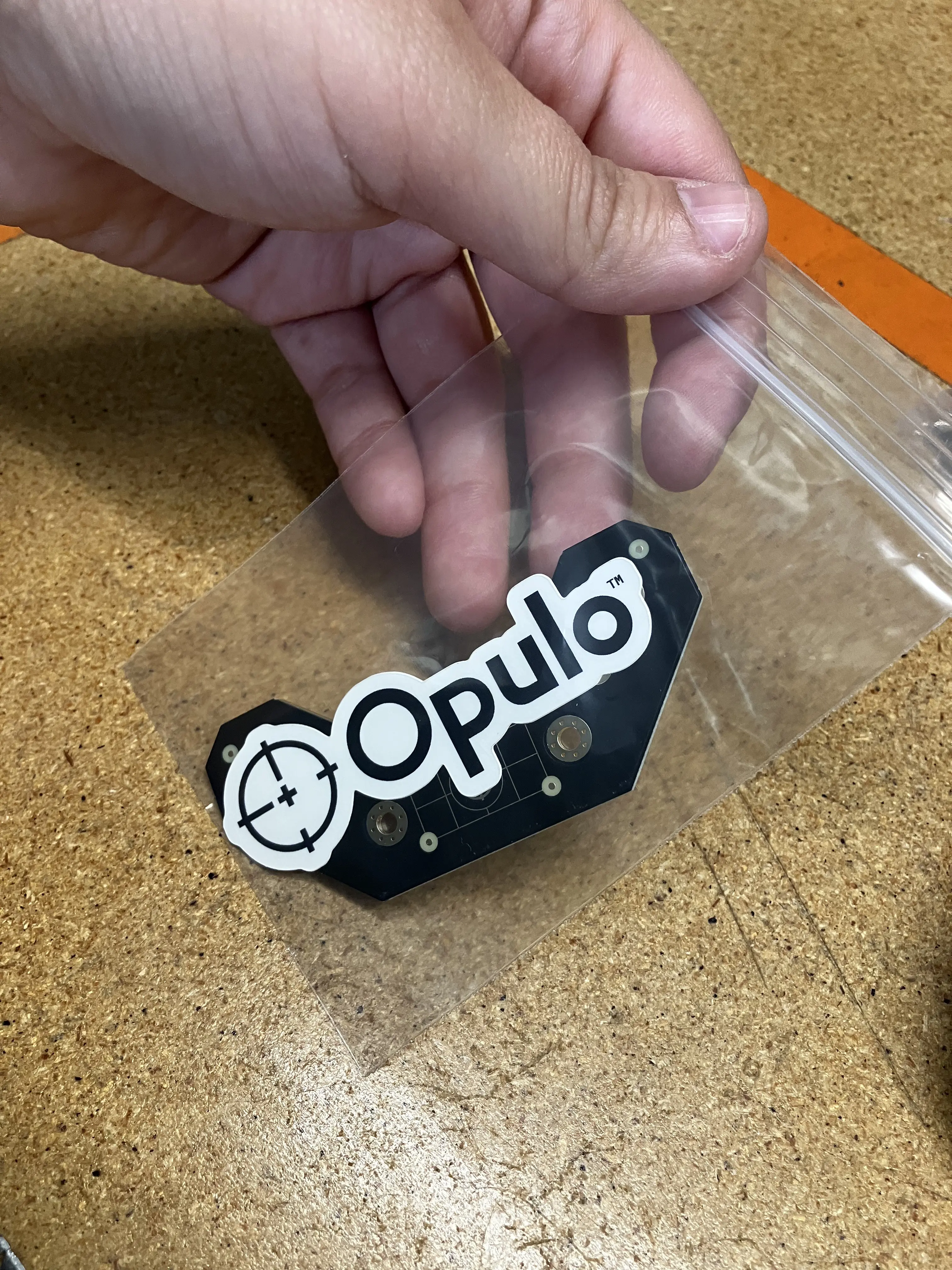

  • Place a datum-board and opulo-sticker into the 3x4-bag before sealing it closed

    alt text

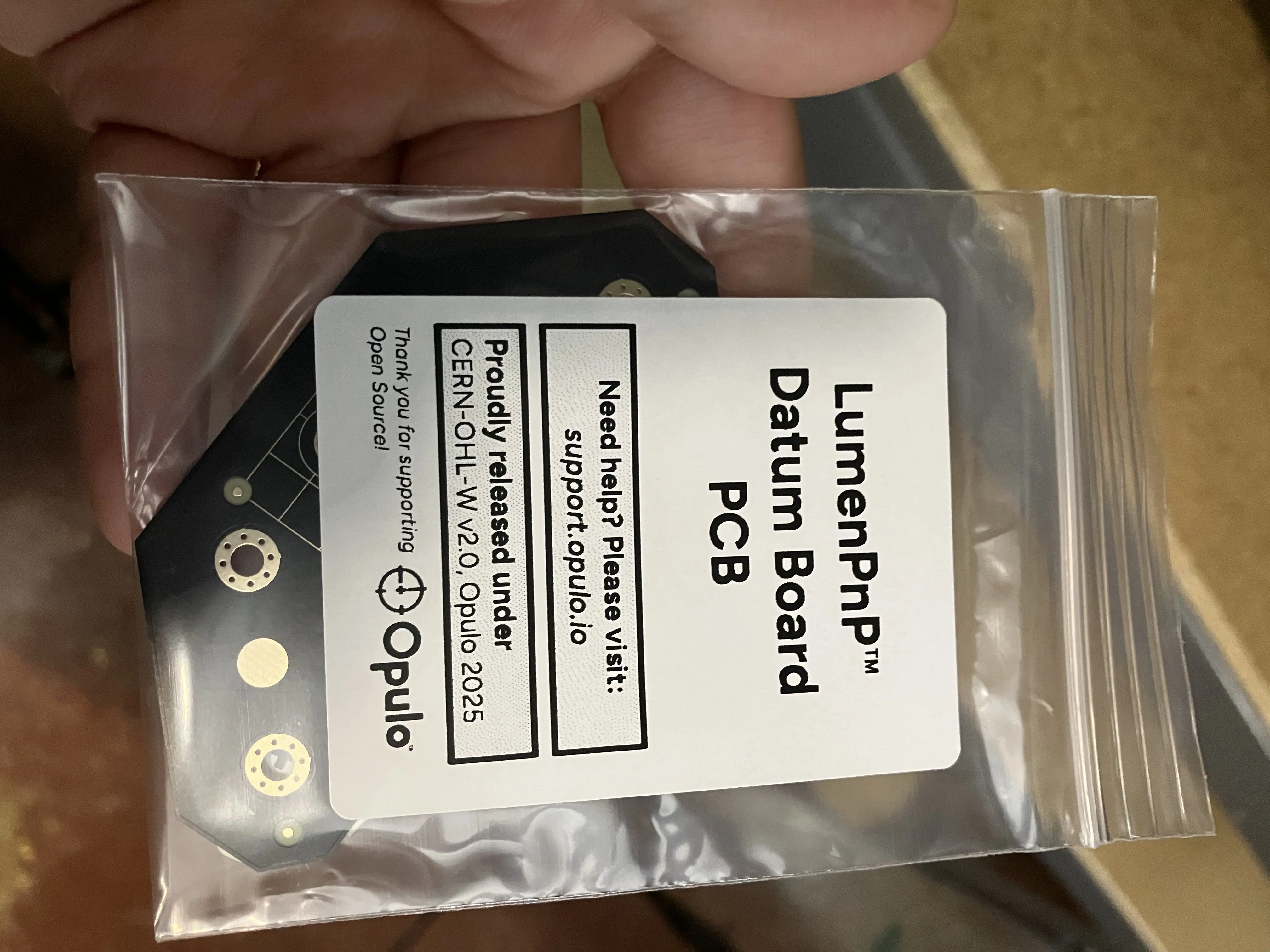

  • Adhere the product-label to the outside of the 3x4-bag

    alt text

  • Adhere a build-number-sticker to the product-label

    alt text

The LumenPnP Datum Board Kit is now ready for packout!
