LumenPnP Frame Kit

Purpose

The purpose of this work instructions is to document the assembly process for the LumenPnP Frame Kit.

Instructions

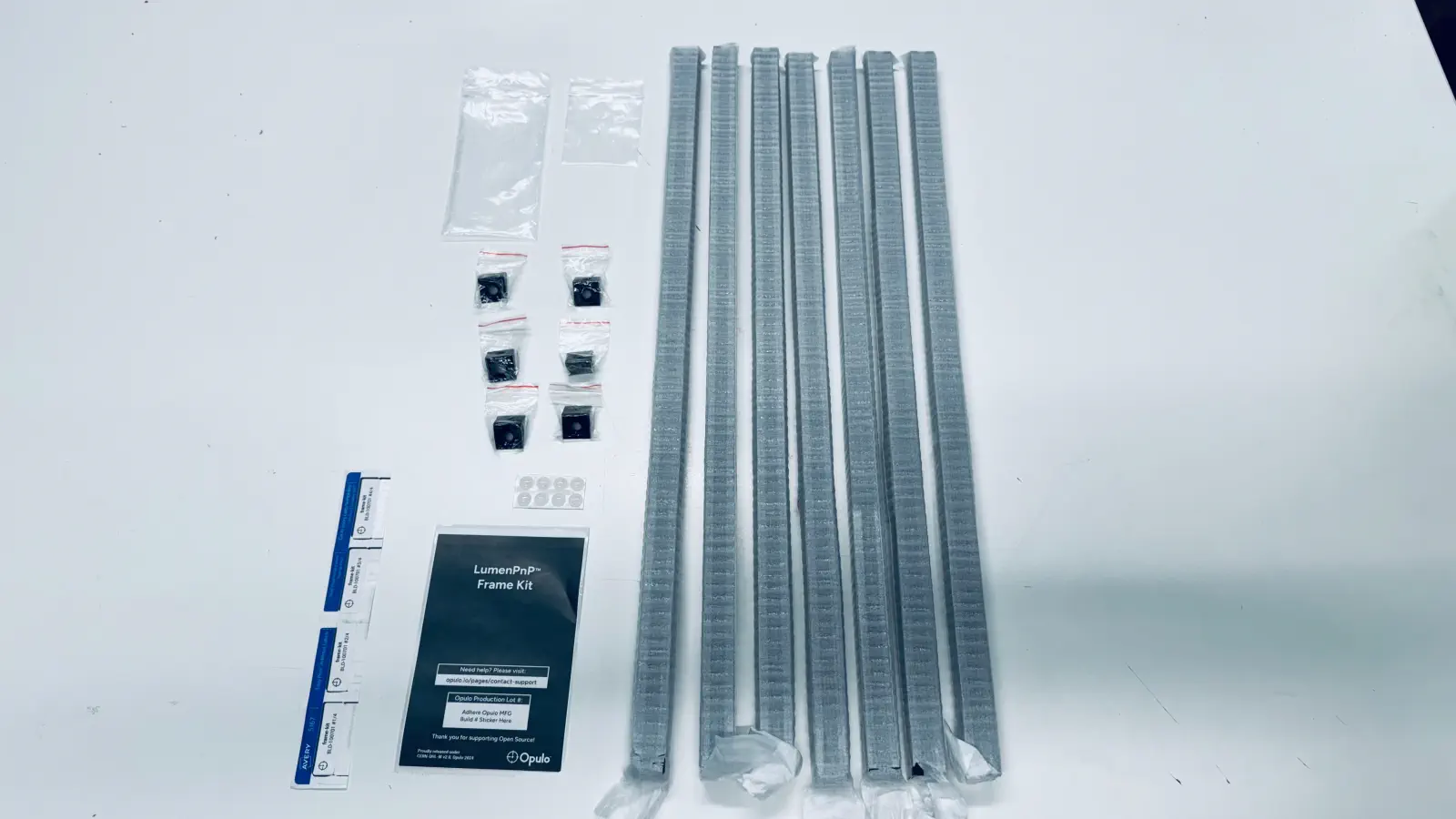

• Collect required components:

  • 8x rubber-feet
  • 7x alu-extusion
  • 1x 2x3-bag
  • 1x 3x6-bag
  • 1x product-label
  • 1x build-number-sticker
  • 1x 26x4x2-box (not shown)

  • 4x sheets of bubble wrap

    This is the box we use for staging plates



• Create frame-kit-bagged-component-set

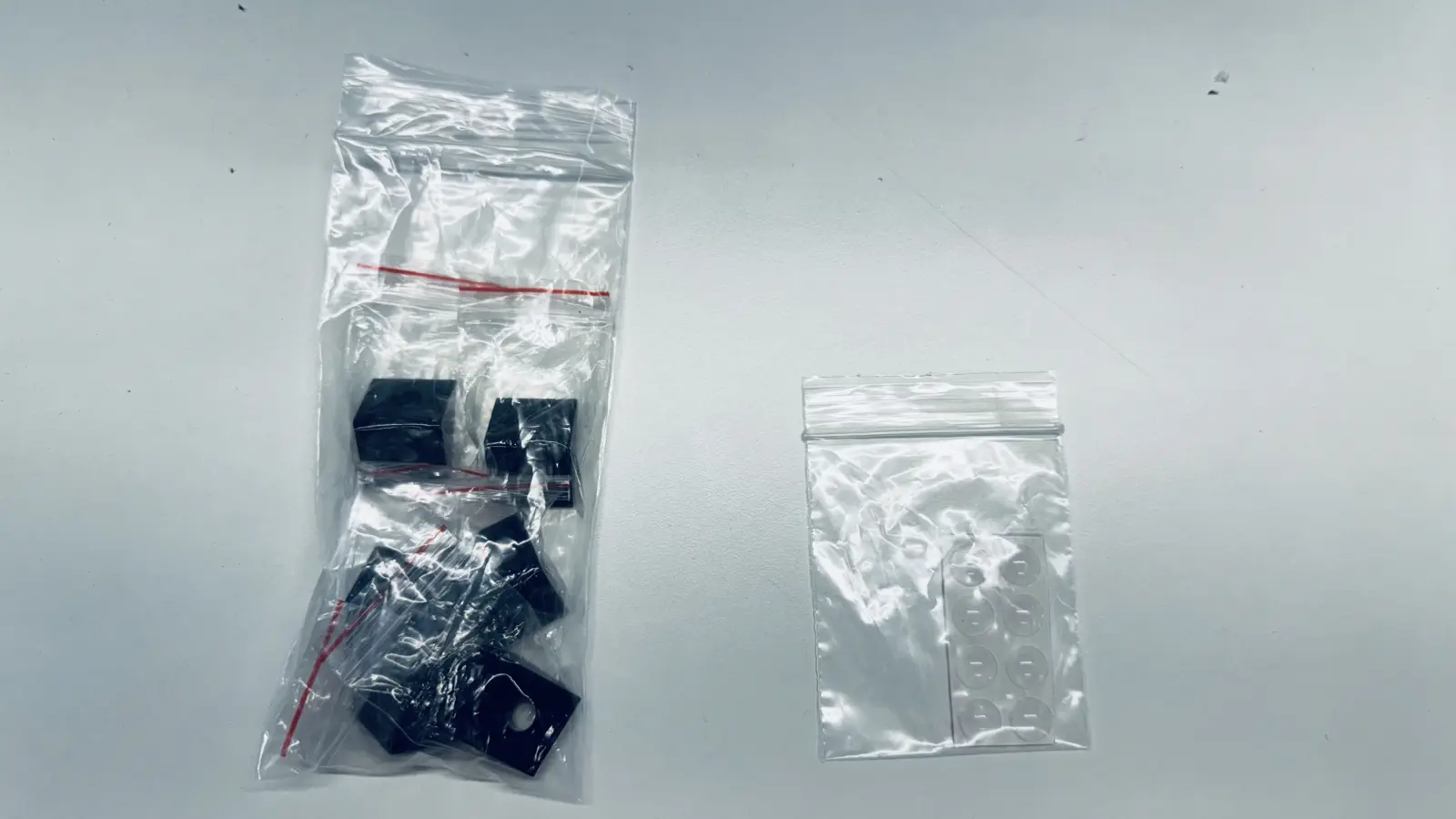

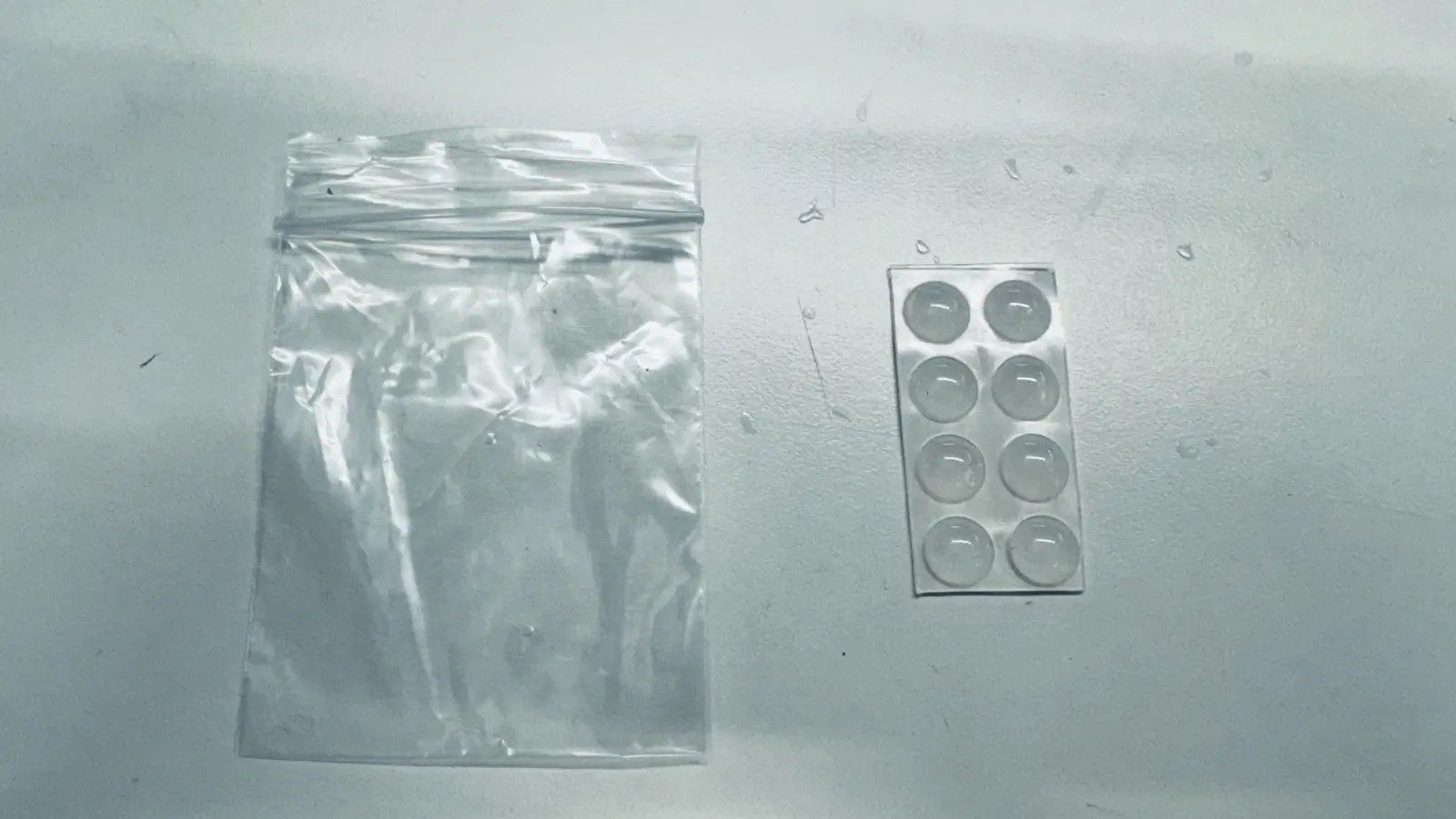

  • Place 8x rubber-feet into a 2x3-bag

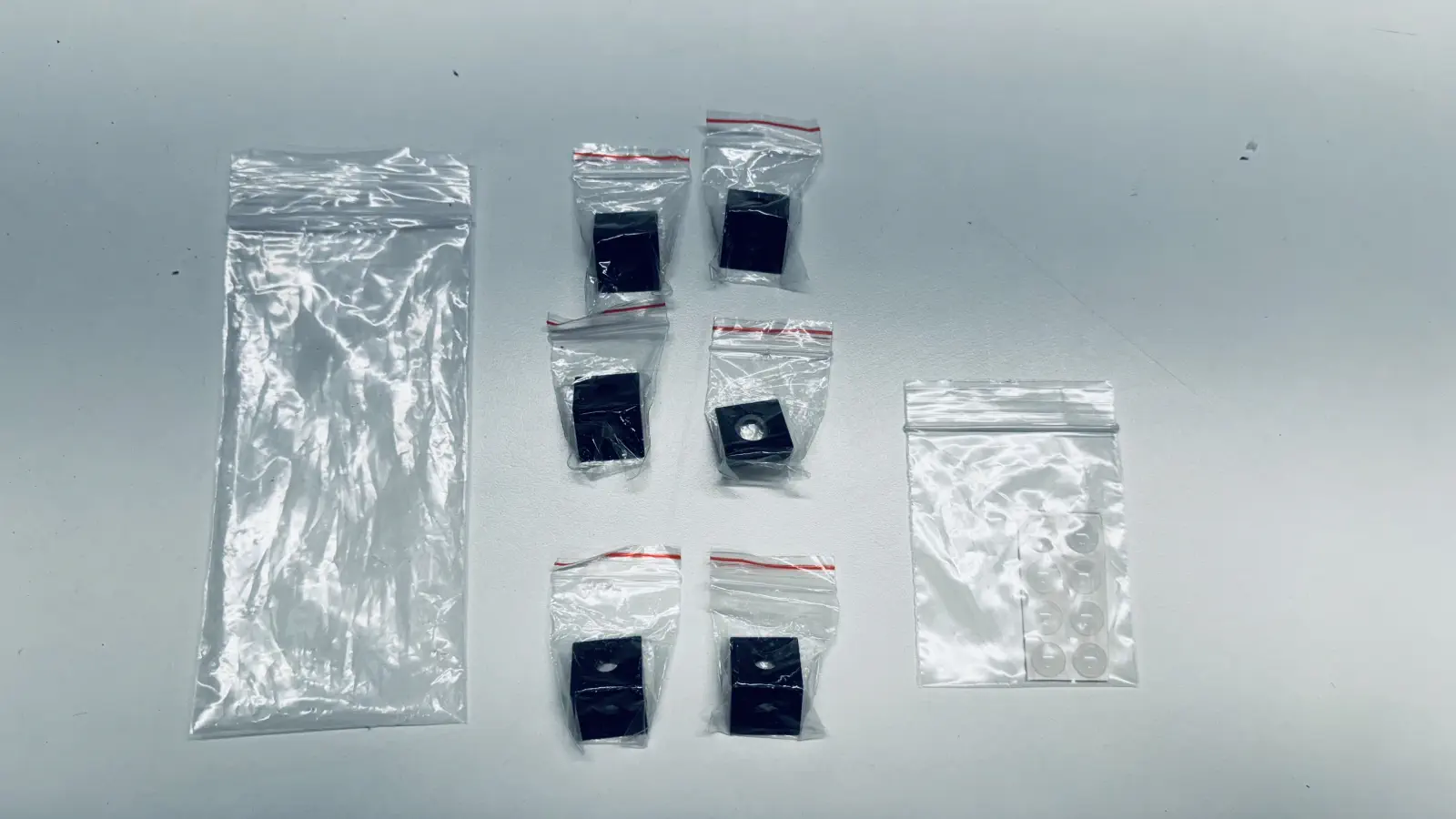

  • Collect a 3x6-bag, 6x corner-backet, and the bagged rubber-feet from the previous step



  • Place all 6x corner-backet into the 3x6-bag

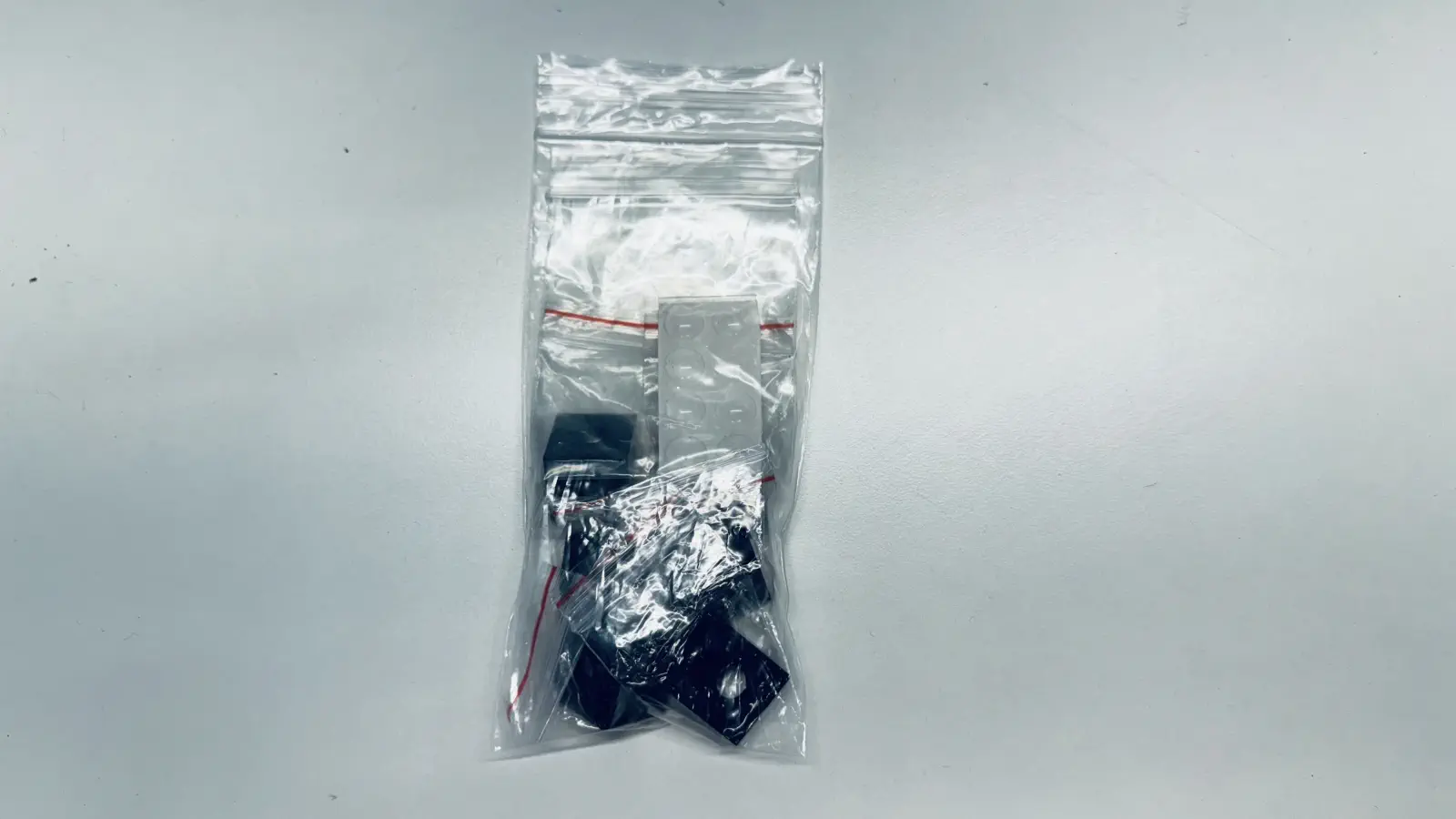

  • Place the bagged rubber-feet into the same 3x6-bag before sealing it shut

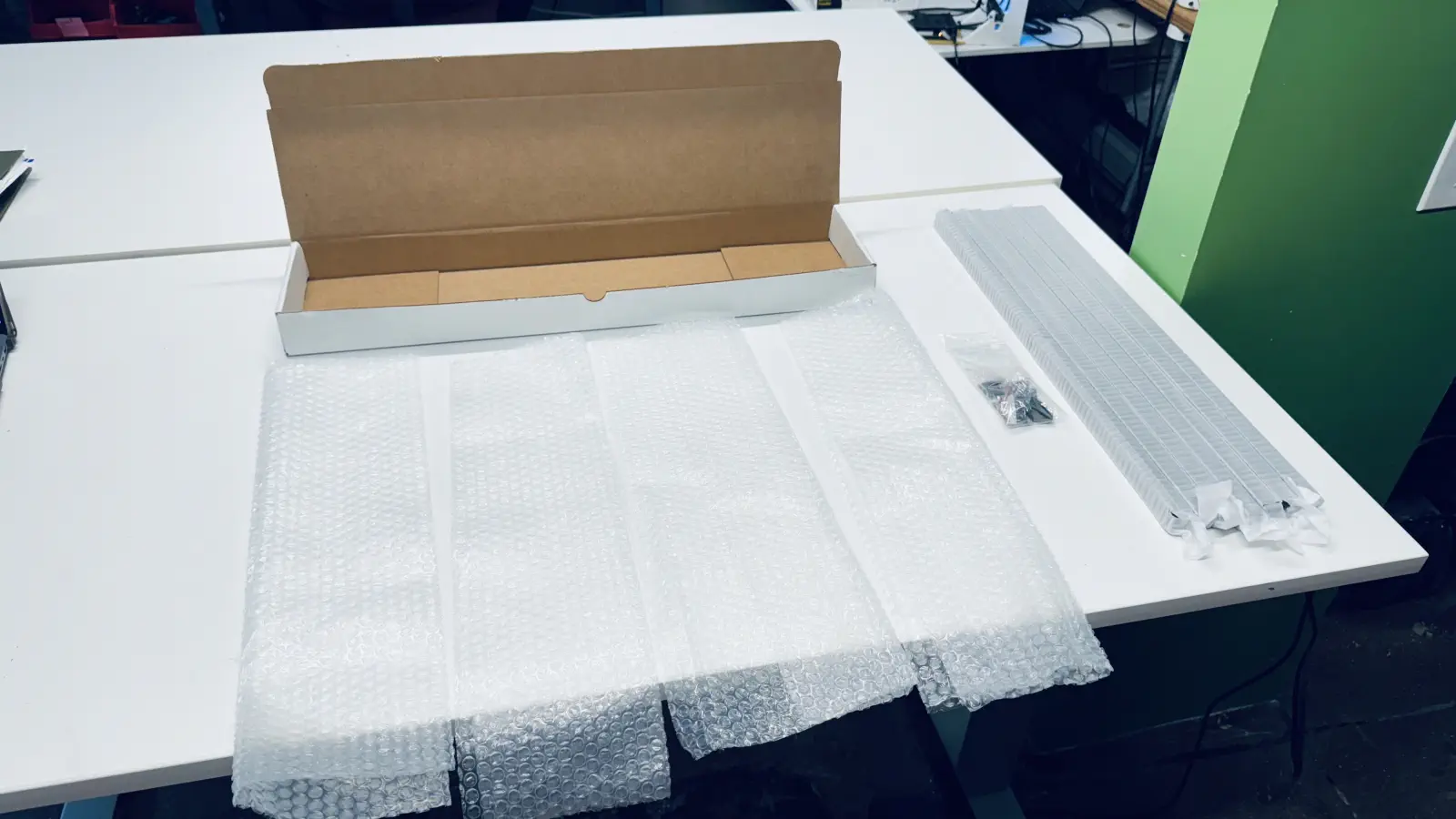

• Fold up a 26x4x2-box and gather the required bubble wrap

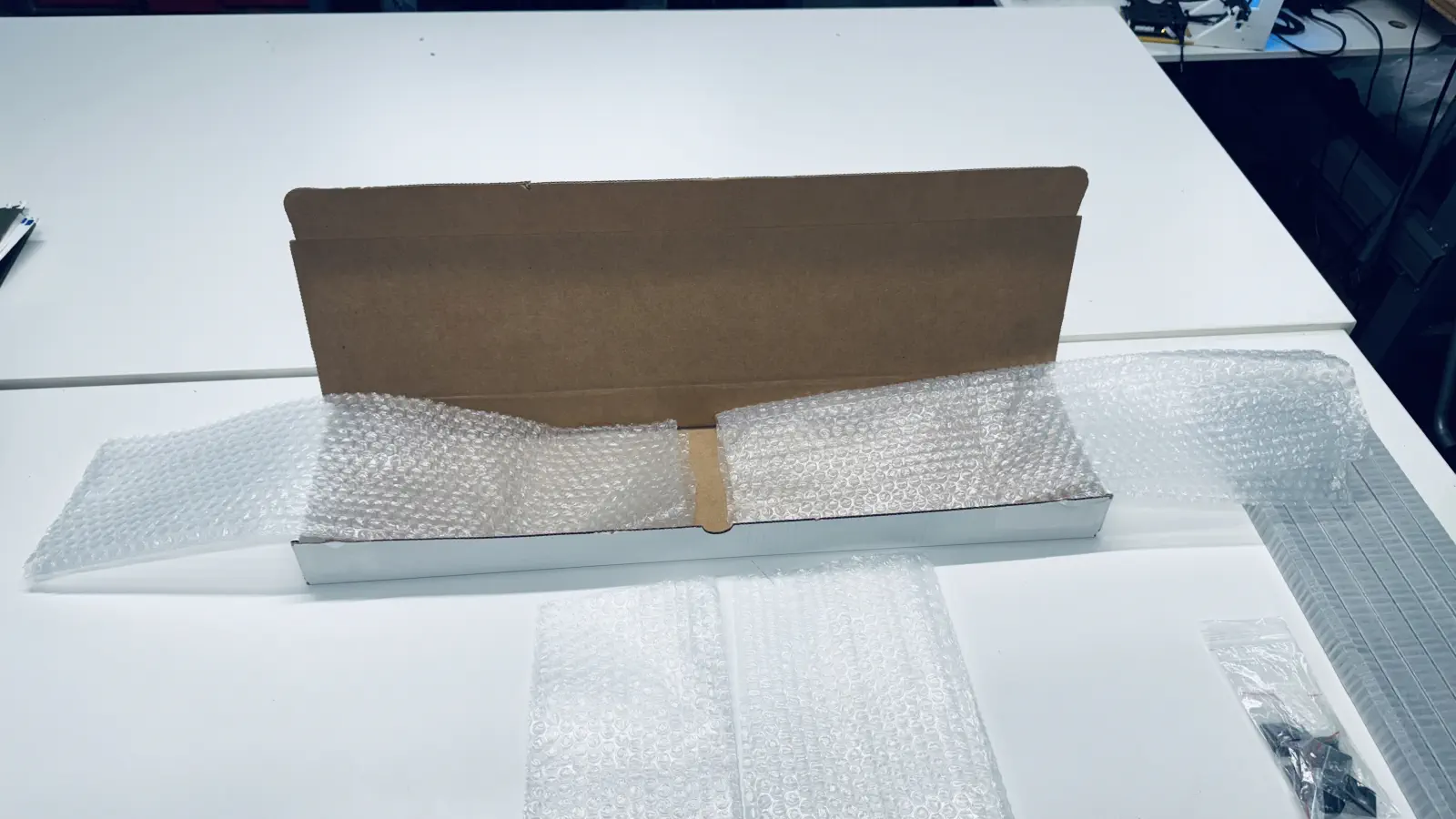

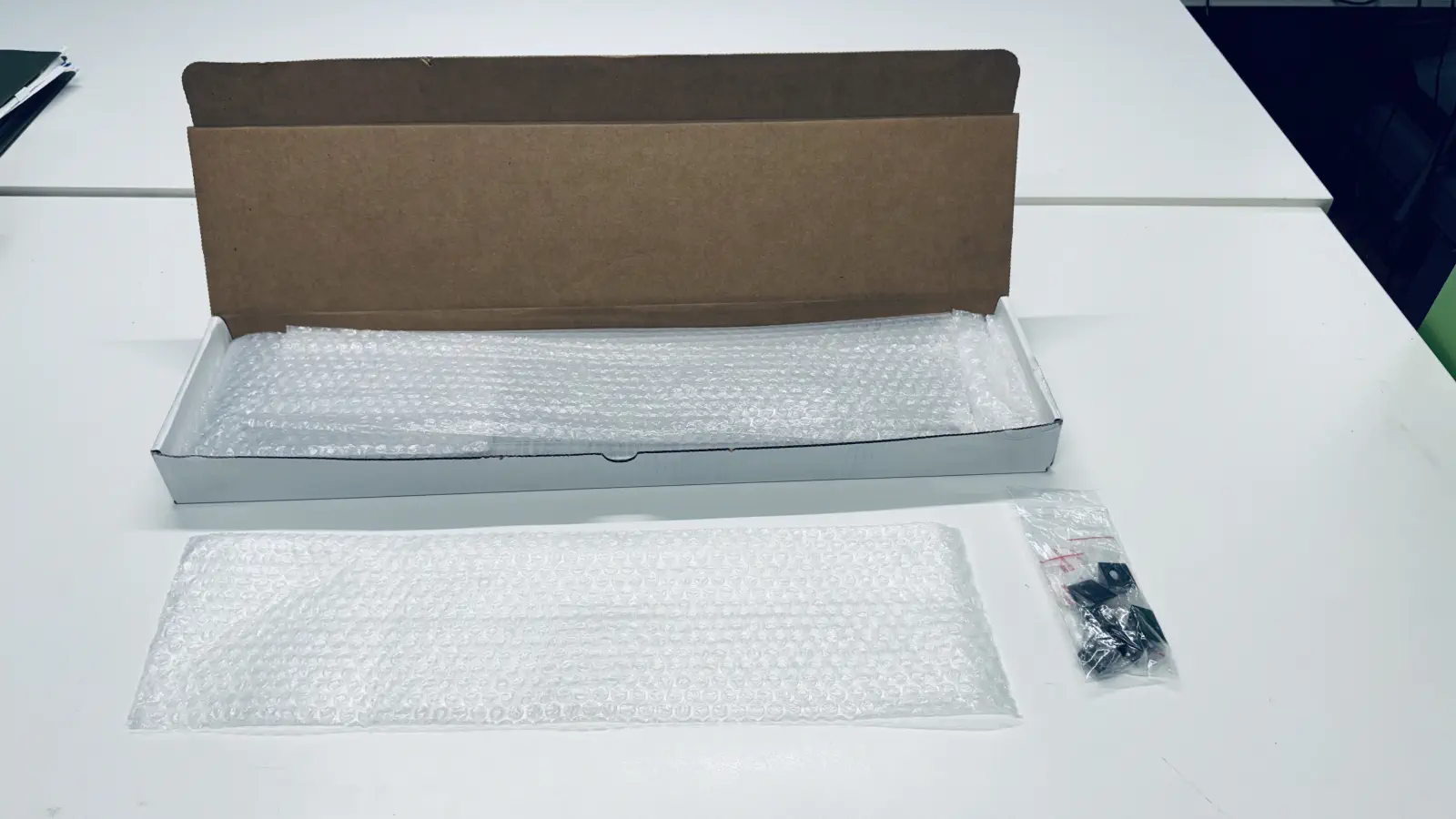

• Place 2 sheets of bubble wrap into the box matching the image below

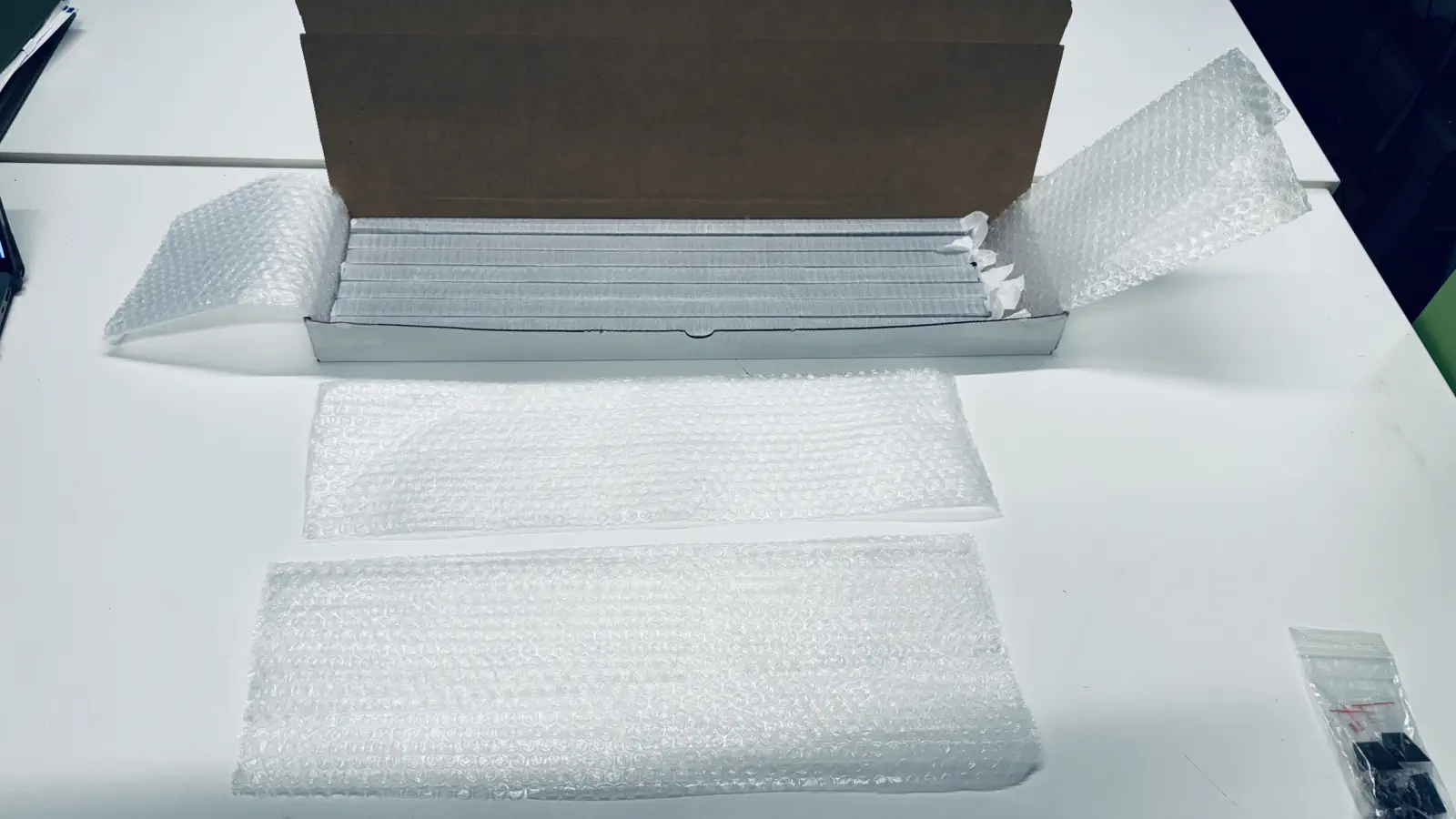

• Place 7x alu-extusion into the box

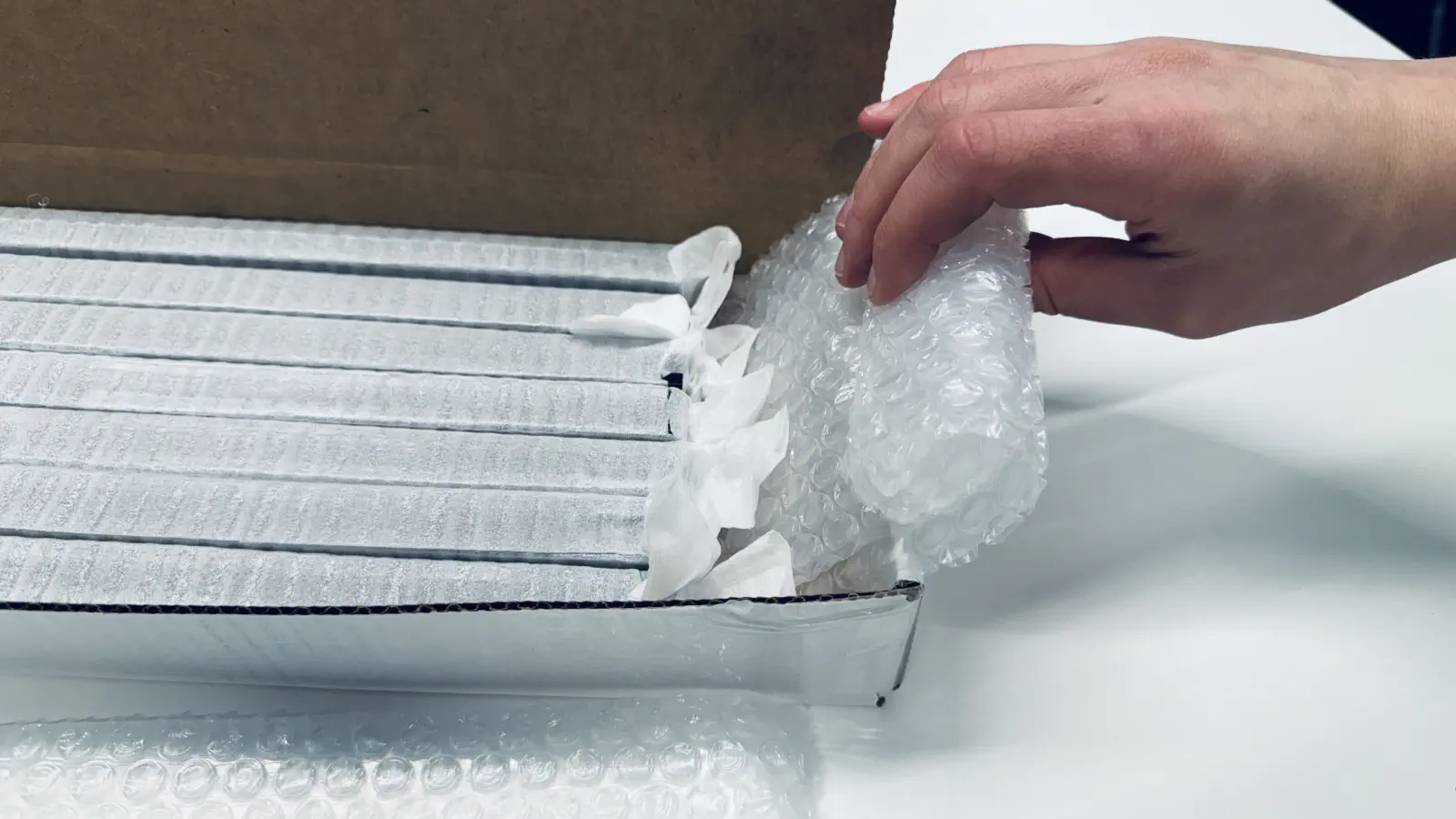

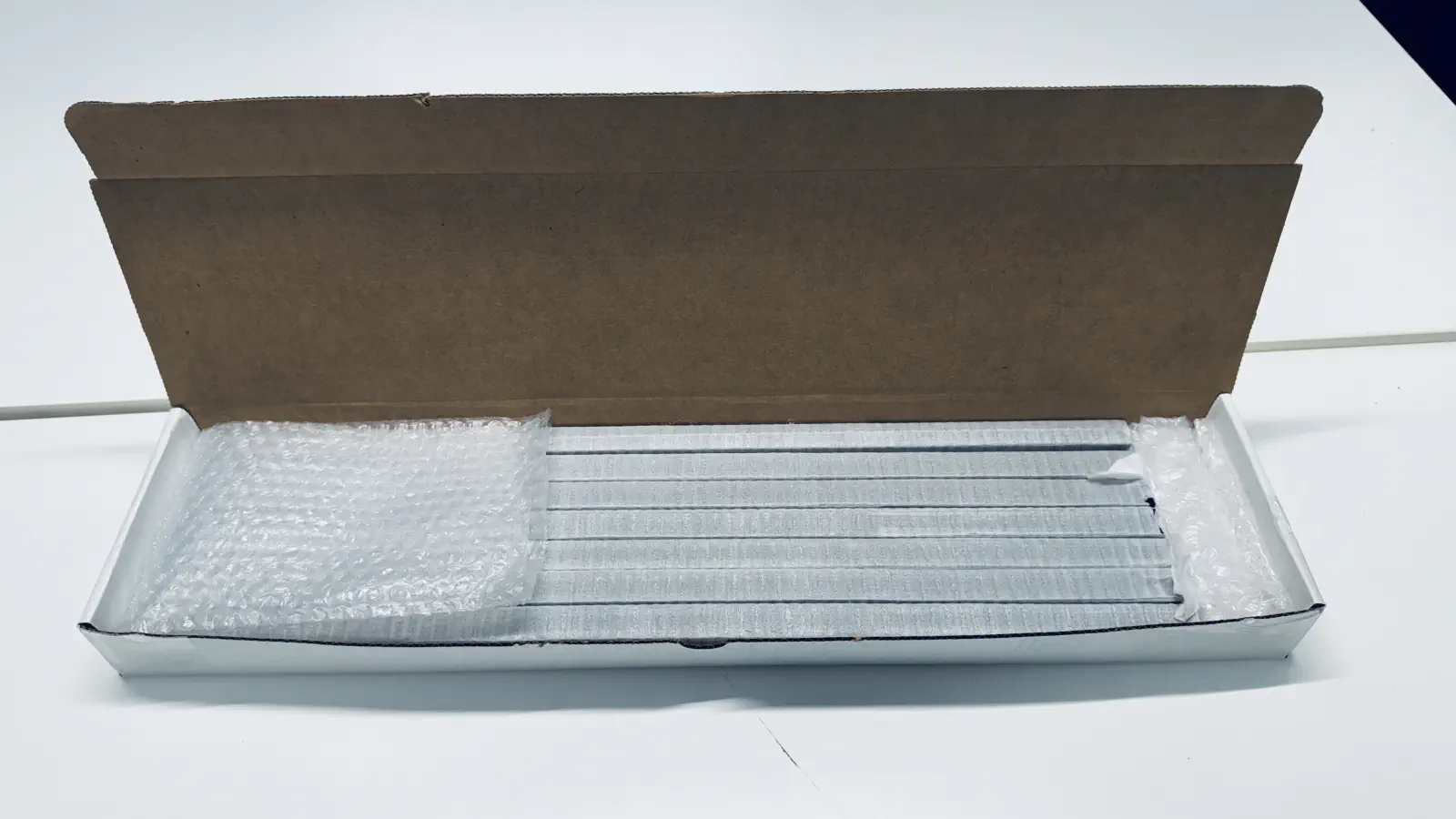

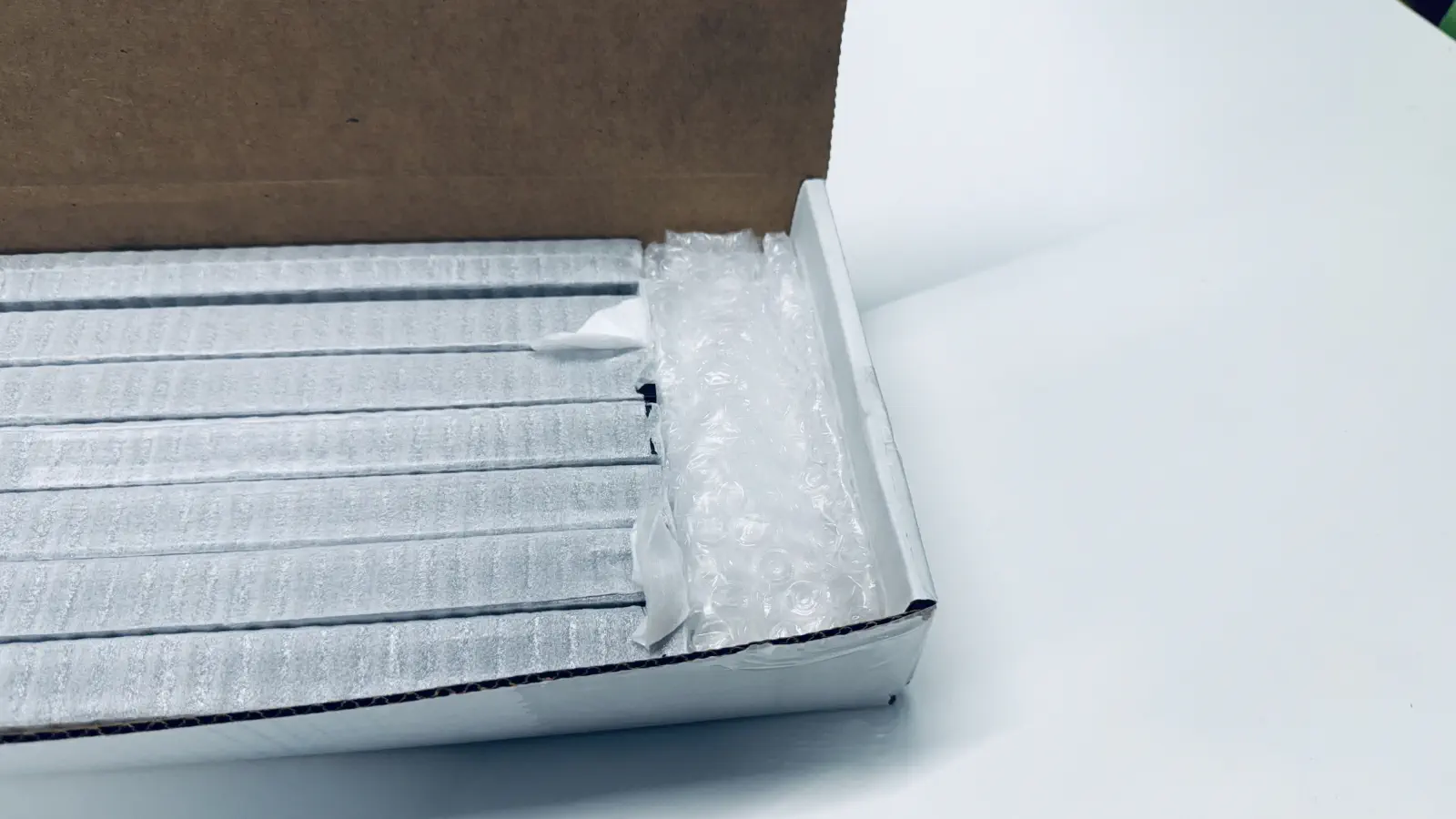

• Roll up the excess bubble wrap and tuck it into the 2" gap on the right-side of the open box



• Fold the loose bubble wrap on the left side of the box to be atop the alu-exrusion pieces



• Tuck a sheet of bubble wrap between the first piece of alu-extrusion and the box's flap before folding it over the product



• Place an additonal sheet of bubble wrap atop the packaged alu-extrusion before addding the frame-kit-bagged-component-set atop the rolled up section of bubble wrap

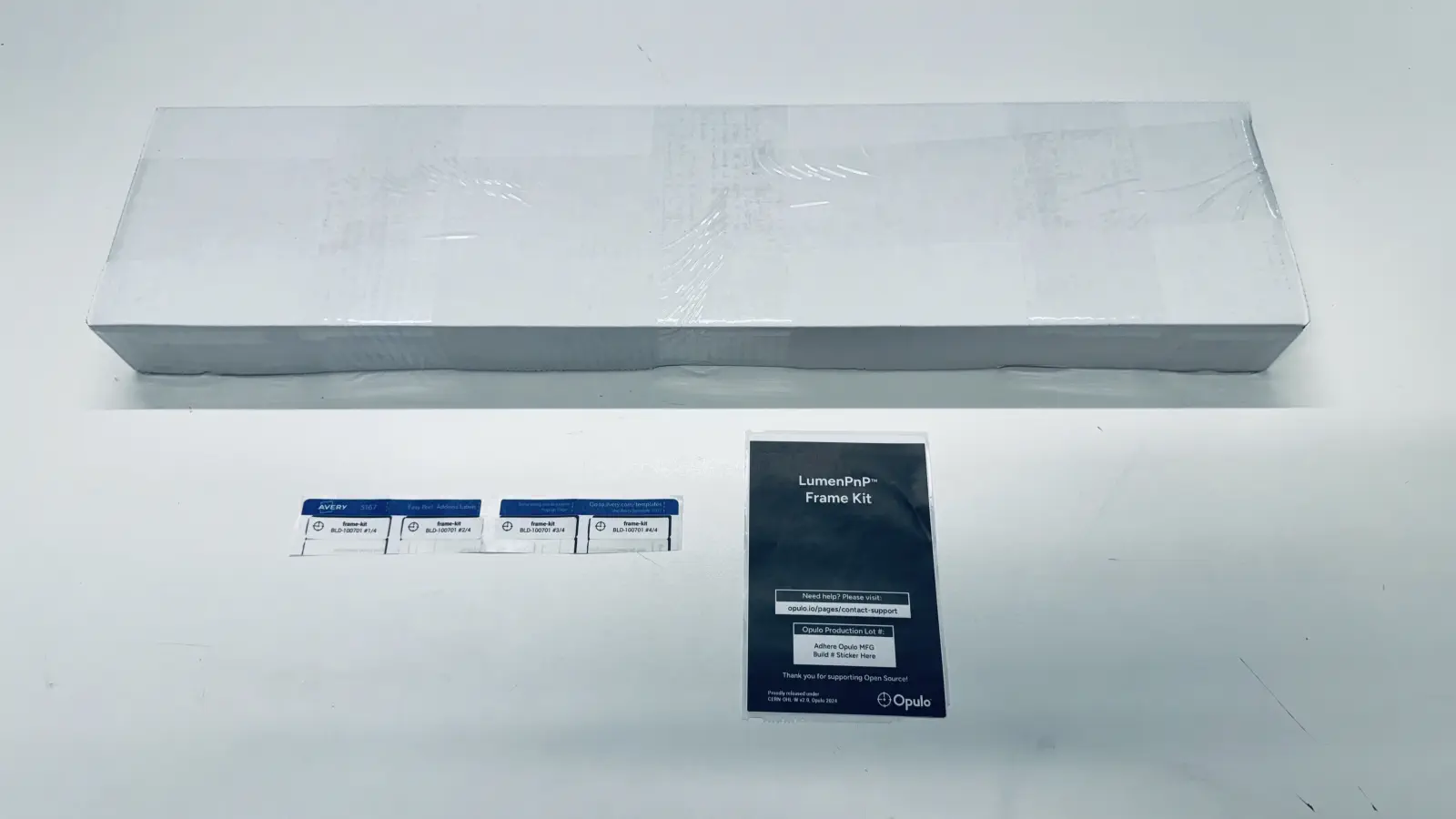

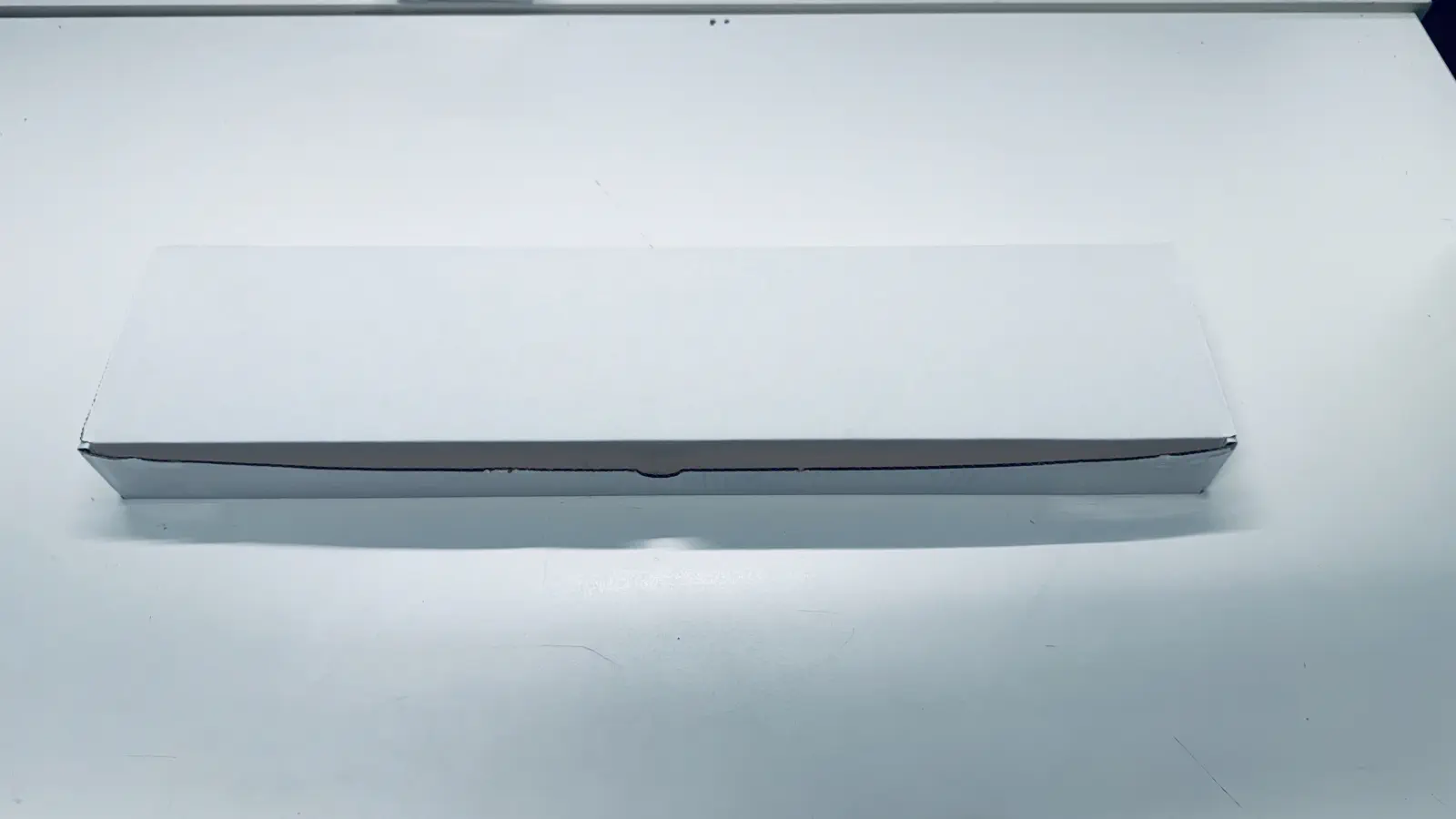

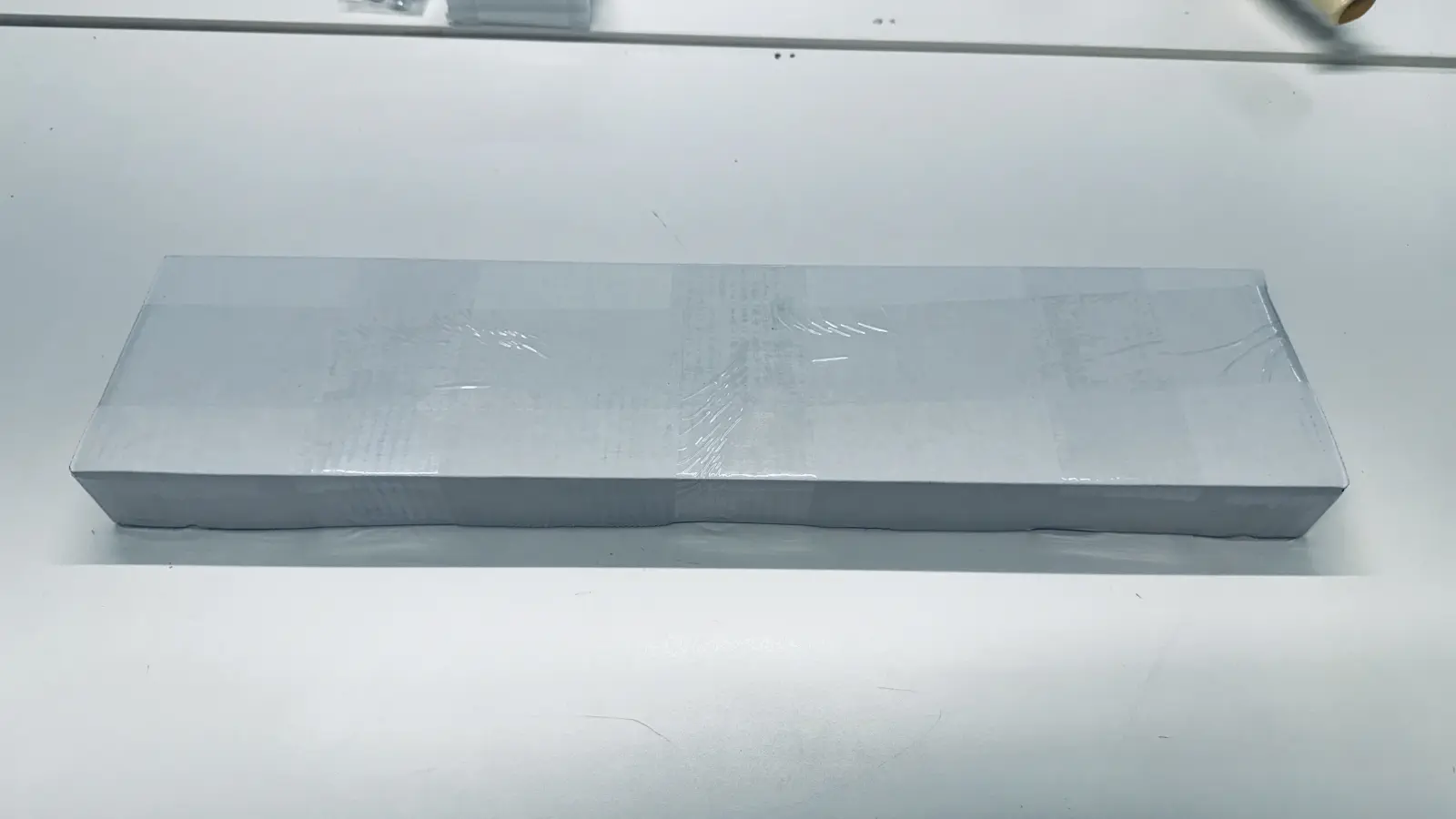

• Close the box and tape it shut with 3" packaging tape

  • Use 3 equally spaced tape wraps around the narrow portion of the box
  • Use 1 tape warp around the entirety of the long portion of the box

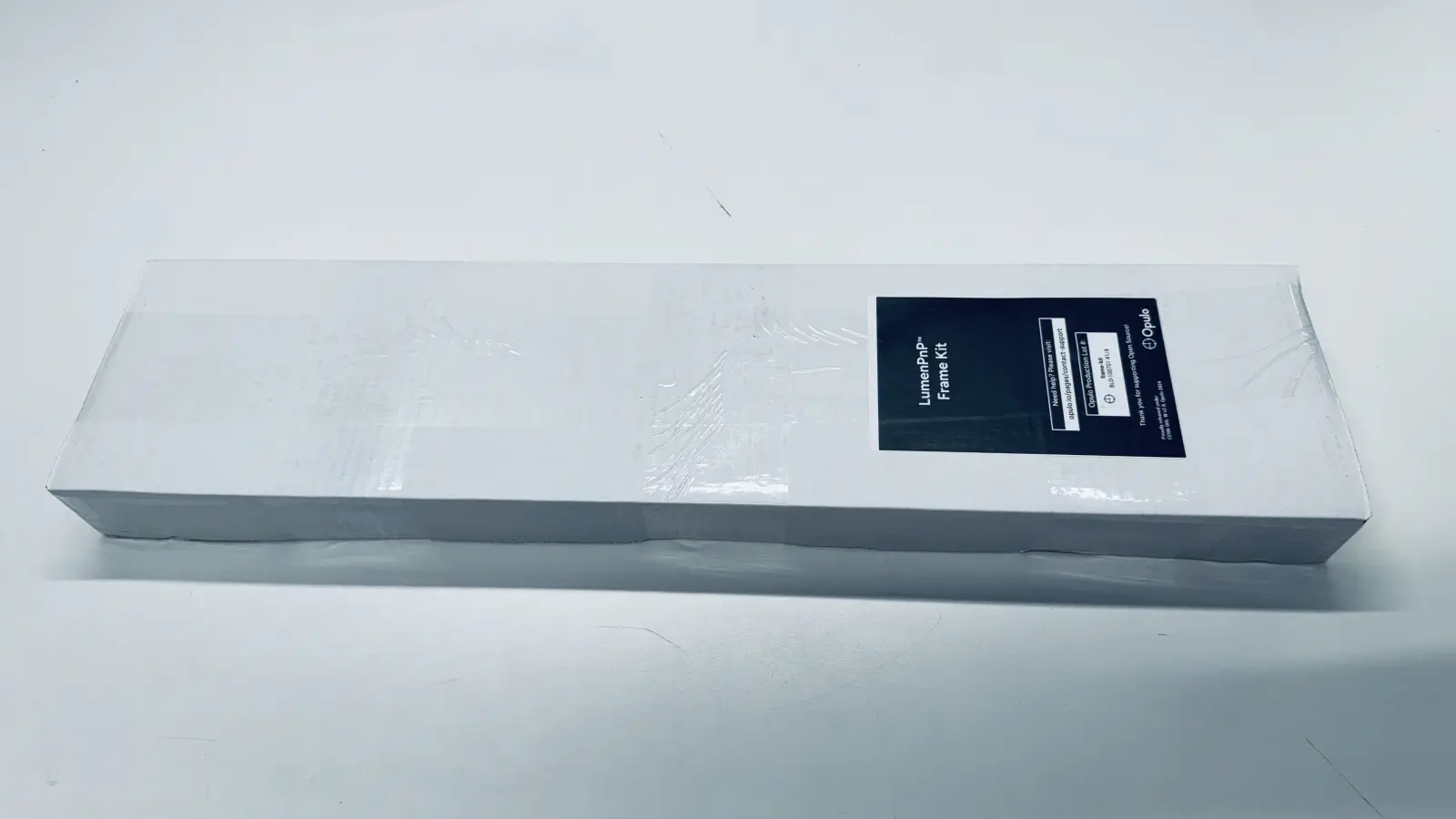

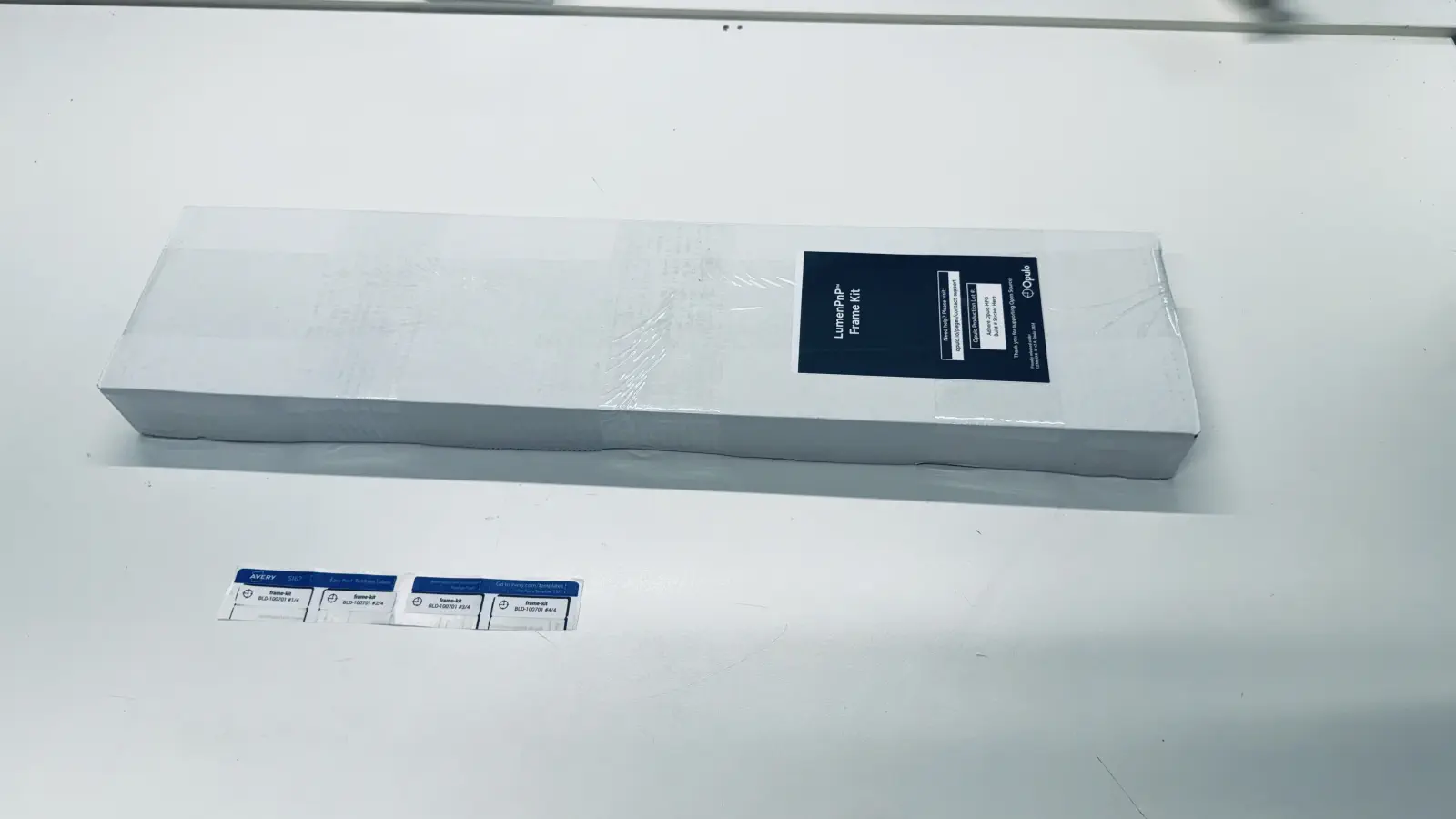

• Adhere a product-sticker to LumenPnP Frame Kit



• Adhere a build-number-sticker to LumenPnP Frame Kit



Set the completed LumenPnP Frame Kit aside for pack out
